EVOFIRE FIRE RATED DOWNLIGHT 70-100MM CUTOUT IP65 POLISHED CHROME ROUND ADAPTER INTEGRAL
Part Number:
ILDLFR70D019

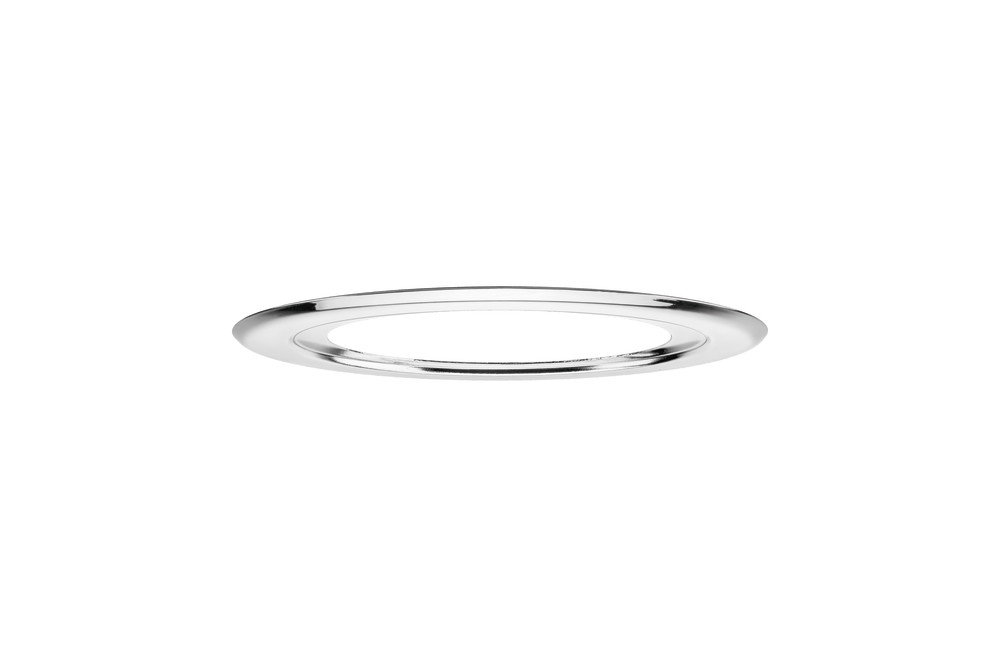

This high quality polished chrome Adapter expands the bezel of the round Evofire Fire Rated Downlight to increase its cutout diameter to up to 100mm. The Evofire will maintain IP65 and 30, 60 and 90 minutes Fire Rating while using the adapter.
- Product Feature 1:
- Expands the cutout diameter of the round Evofire Downlight from 70mm to up to 100mm
- Product Feature 2:
- High quality powder-coated finish
- Product Feature 3:
- Toughened steel
- Product Feature 4:
- Polished Chrome
- Availability:
-
381
More stock due in on 05/05/2025
Details
| Barcode | 5055788238386 |
|---|---|
| Quick Order Code | 517847 |
| Category | Downlights |
| Range Name | Evofire |
| Product Type | Fire Rated |
| Product Body Finish | Polished Chrome |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Polished Chrome |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 3 |
|---|---|
| Product Weight (g) | 0.045 |
| Diameter (mm) | 111.6, 110 |
| Material | Steel |
| Overall diameter (mm) | 110 |
| Construction | Pressed Steel |
| Cut Out Diameter (mm) | 70-100 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | No |
|---|
Environmental
| CE RoHS | Yes |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
Packaging
| Barcode | 5055788238386 |
|---|---|
| Single box qty | 1 |
| Inner Carton Barcode | 05055788238393 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 120 |
| Inner Carton Width (mm) | 120 |
| Inner Carton Depth (mm) | 20.5 |
| Qty per Outer Carton | 300 |
| Outer Carton Length (mm) | 460 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 320 |
