RF RECEIVER AND REMOTE BUTTON DIGITAL RGB PIXEL 5-24V CONSTANT VOLTAGE MAX 1020 PIXELS 50W(5V) AND 120W(12V) AND 240W(24V) INTEGRAL

Part Number:

ILRC023

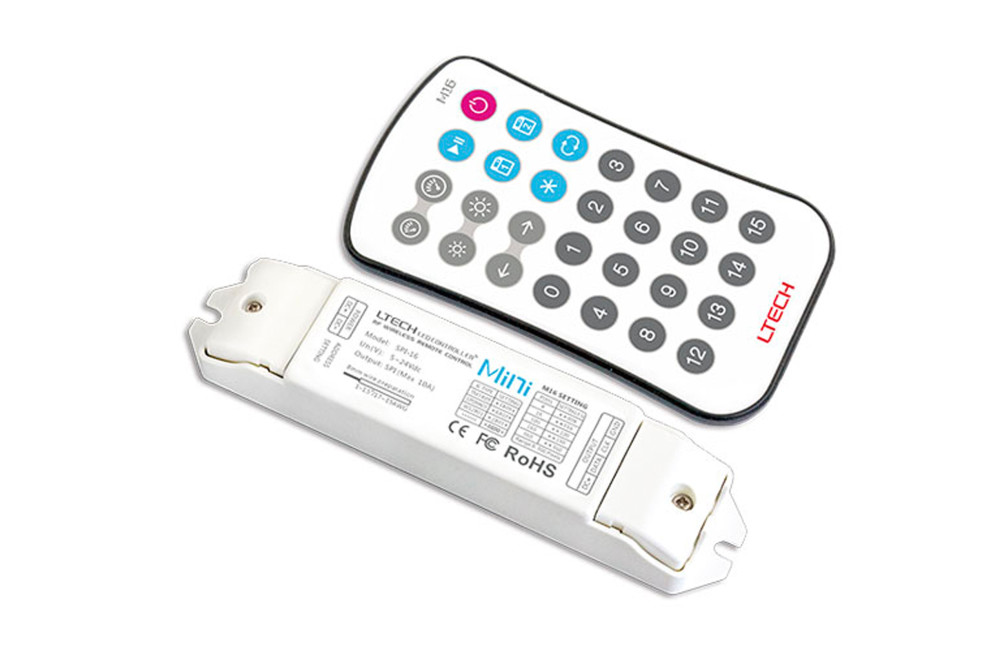

The LTECH RGB Pixel Remote Control and Receiver is designed to work with the Integral LED Digital Pixel RGB Strip (ILSTRGBA073E and ILSTRGBB074E). This remote control allows you to cycle and set the 16 different lighting effects the Digital Pixel Strip is capable of and also allows you to adjust the speed, brightness and direction of these effects. When you have found your perfect setting, this remote control includes two Scene Keys, so you can save and replay up to two customised effects.

Product Feature 1:
Suitable for controlling digital pixel strip
Product Feature 2:
16 pre-synced settings
Product Feature 3:
Power Input: DC5-24V
Product Feature 4:
Max Current Load: Max 10A
Product Feature 5:
Max Power Output: 50W (5V) / 120W (12V) / 240W (24V)
Product Feature 6:
Max 1020pixels
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 886879
Barcode 5055788250951
Category Strips
Range Name Digital Pixel
Product Type Controllers for strips
Warranty (Years) 5
Product Weight (g) 110
Material PCB, Plastic Shell
Handheld or Wall Mount Handheld
Zones 1
Voltage Range (v) 45413
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-60950-1
LVD Certified Yes
EN EN-60950-1
LVD Certified Yes
CE RoHS Yes
Lowest Operating Temperature (°C) -30
Maximum Operating Temperature (°C) 55
Package Weight (g) 135
Package Length (mm) 200
Package Width (mm) 130
Package Depth (mm) 20

Product Specification Sheet

Safety Guides

Installation Guides

Wiring Diagrams
