GLASS MR16 BULB GU5.3 380LM 3.4W 2700K NON-DIMM 36 BEAM
Part Number:
ILMR16NC058

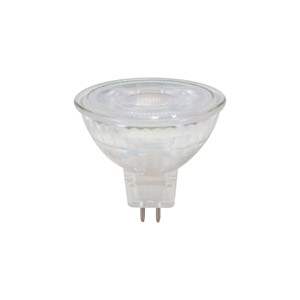

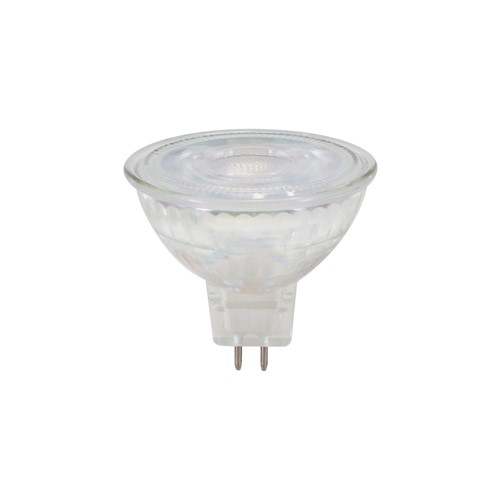

The glass body and cleverly engineered surface mounted LEDs of the Integral LED Glass MR16 range give them an attractive look that is very similar to traditional halogen lamps.
These MR16 lamps will retrofit easily into existing fittings and provide significant energy savings and longer lifetime than the halogen lamps they are designed to replace.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 345 Useful Lumens (380 Nominal)
- Product Feature 3:
- Non-Dimmable
- Availability:
-
500+
More stock due in on 15/04/2026
Details
| Barcode | 5055788322771 |
|---|---|
| Quick Order Code | 759307 |
| Category | Lamps |
| Range Name | Glass |
| Product Type | MR16 |
| Product Body Finish | Glass |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 50 |
|---|---|
| Product Width (mm) | 50 |
| Product Weight (g) | 36 |
| Optic | Designed to give a Halogen look |
| Material | Glass |
| Base Term | GU5.3 |
| Bulb Base | MR16 |
| Construction | Glass with Aluminium heat-sink, Injection moulded diffuser |
| Globe Finish | Dichroic look |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD with "COB like effect" |
Light Data
| Energy Efficiency Label (Image) | ILMR16NC058_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 380 |
| Luminous efficacy (lm/W) | 101 |
| Peak Intensity (Cd) | 750 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 345 |
Electrical Data
| Power (W) | 3.4 |
|---|---|
| Power Consumption (W) | 3.4 |
| Voltage Range (v) | 12 |
| Wattage equivalent (W) | 35 |
| Amperage (mA) | 440 |
| Dimming | Non-Dimmable |
| Driver Included | No, needs 12V AC Transformer |
| Electric Current | AC |
| True Wattage Eq (W) | 35 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788322771 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 46 |
| Package Length (mm) | 51 |
| Package Width (mm) | 51 |
| Package Depth (mm) | 60 |
| Outer Carton Barcode | 05055788322856 |
| Qty per Outer Carton | 120 |
| Outer Carton Length (mm) | 530 |
| Outer Carton Width (mm) | 325 |
| Outer Carton Depth (mm) | 140 |
| Qty per euro pallet | 4320 |
Safety Guide
ILMR16NC058
