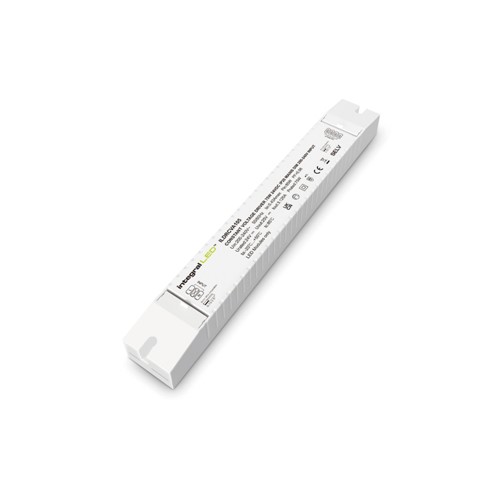

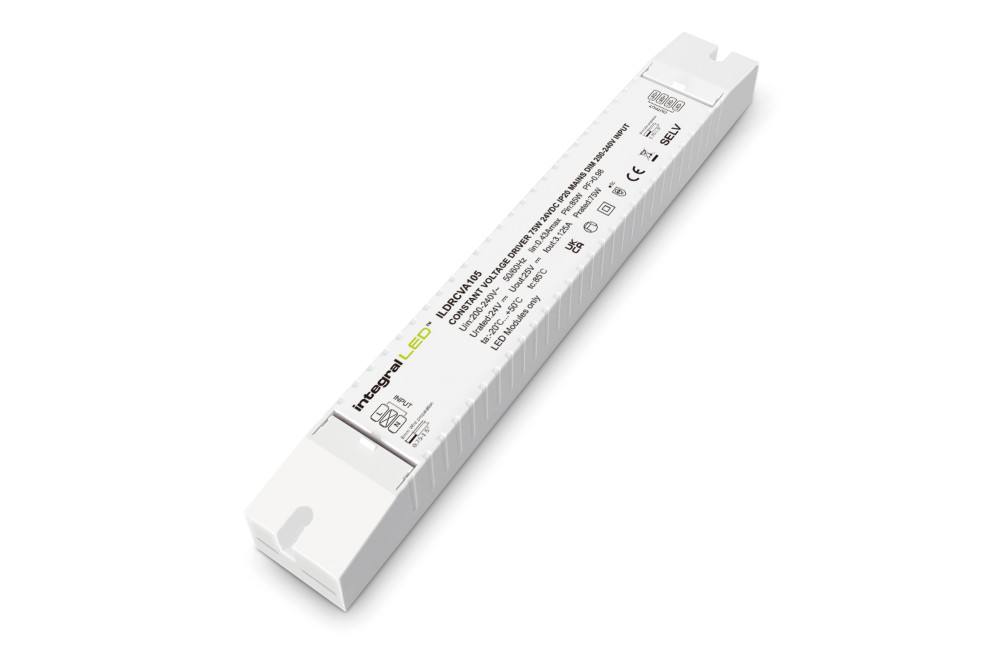

CONSTANT VOLTAGE DRIVER 75W 24VDC IP20 MAINS DIM 200-240V INPUT
Part Number:
ILDRCVA105
This 75W 24V DC constant voltage driver is designed for reliable and efficient LED lighting control. With mains dimming compatibility (220-240V input), it seamlessly integrates with leading-edge and trailing-edge dimmers, allowing smooth brightness adjustment. Its IP20 rating makes it suitable for indoor applications, providing a stable power supply for LED strips and other low-voltage lighting solutions. Compact and durable, this driver ensures consistent performance and flicker-free dimming for residential and commercial installations.
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output Power: 75W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
1
More stock due in on 10/11/2025
Suggested products
Details
| Barcode | 5055788309031 |
|---|---|
| Quick Order Code | 233581 |
| Category | Drivers |
| Range Name | TRIAC |
| Product Type | Constant Voltage |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 295 |
|---|---|
| Product Depth (mm) | 32 |
| Product Width (mm) | 40 |
| Product Weight (g) | 350 |
| Placement / Application | Indoor LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 75 |
|---|---|
| Power Consumption (W) | 75 |
| Power Factor | 0.98 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 3125 |
| Input Current (A) | 0.43 |
| Input Voltage (V) | 220-240VAC |
| Output Current (mA) | 3125 |
| Output Voltage (V) | 24 |
| Dimming | Mains dim |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 85 |
Packaging
| Barcode | 5055788309031 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 25 |
| Package Length (mm) | 305 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 35 |
| Outer Carton Barcode | 05055788309239 |
| Qty per Outer Carton | 50 |
| Outer Carton Length (mm) | 480 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 220 |
