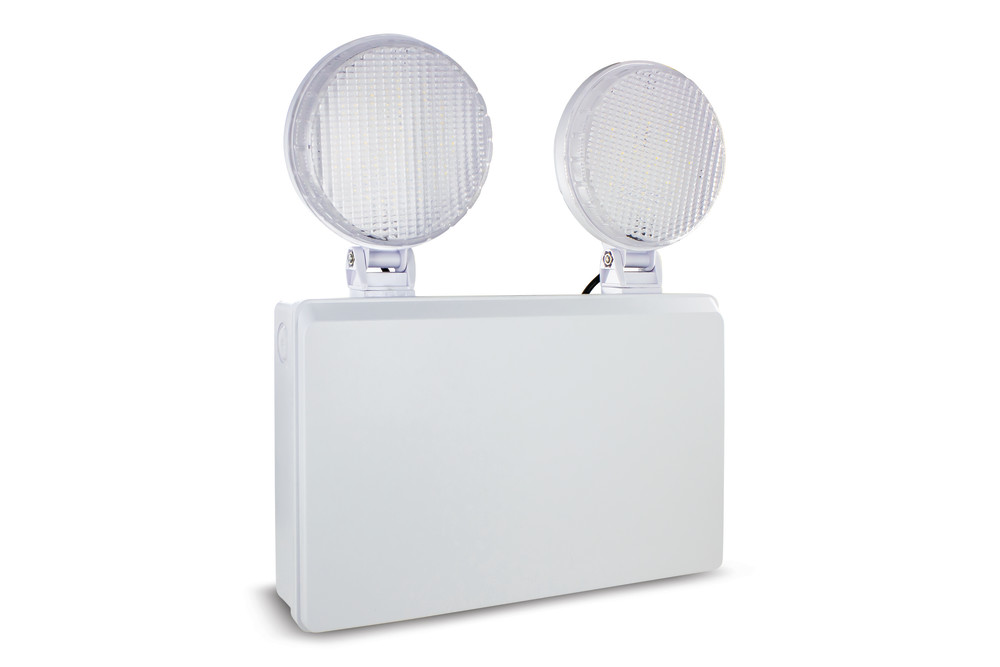

TWIN SPOT EMERGENCY LUMINAIRE 4W 400LM NON MAINTAINED IP20 6500K SELF TEST INTEGRAL LED

Details

Barcode:

5055788253907

Quick Order Code:

259636

Category:

Emergency

Range Name:

Twin Spot

Product Body Finish:

White

Market Segment:

Commercial indoor

Finish:

White

Warranty (Years):

5

CE RoHS:

Yes

Physical Data

Product Length (mm):

287

Product Depth (mm):

55

Product Width (mm):

255

Product Weight (g):

800

Optic:

Clear Refractor

Material:

Polycarbonate

Bulb or Luminaire Shape:

Rectangle

Luminaire Fixing:

Wall

Placement / Application:

Indoor, Emergency Lighting

Spot Type:

SMD

Electrical Data

Power (W):

4.5

Power Consumption (W) :

4.5

Voltage Range (v):

220-240

Input Voltage (V):

220-240

Battery Configuration:

3.2V 1500/3000mAH LIFePO4, 24 hours to charge

Dimming:

Non-Dimmable

Driver Included:

Yes

Electric Current:

AC

Emergency Battery Life (years):

2

Emergency Lumens (lm):

400

Protection Function:

Short circuit, overload and over heating

EN:

EN-60608

LVD Certified:

Yes

Light Data

Luminous Flux in Lumens (lm):

400

Luminous efficacy (lm/W):

89

Correlated Colour Temperature (CCT) (K):

6500

Colour Temperature:

6500K - Cool Daylight

Colour Temperature Name:

Cool Daylight

Colour Rendering Index (CRI):

80

Colour Type:

Single

Frequency Range (Hz):

50/60

Instant on (Less than 1 second):

Yes

LED Size (mm):

2835

LED Type:

Surface mounted device (SMD)

Lifetime (hours):

35000

Lighting Method:

Back-lit

Switching Cycles:

15000

Useful Lumens (lm):

400

Environment

EN:

EN-60608

LVD Certified:

Yes

CE RoHS:

Yes

Hg 0% (Mercury Free):

Yes

IP Rating (Back/Recessed side):

IP20

IP Rating (Ingress Protection):

IP20

Lowest Operating Temperature (°C):

0

Maximum Operating Temperature (°C):

45

Packaging

Package Weight (g):

850

Package Length (mm):

400

Package Width (mm):

320

Package Depth (mm):

60
