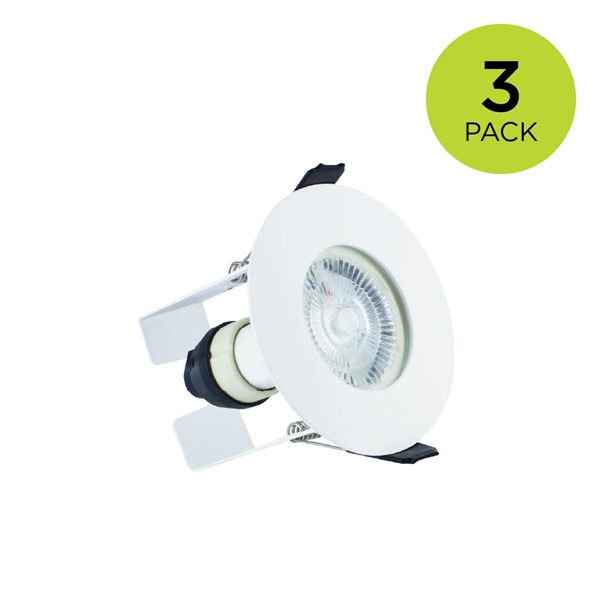

EVOFIRE FIRE RATED DOWNLIGHT 70MM CUTOUT 3PACK IP65 WHITE ROUND +GU10 HOLDER & INSULATION GUARD INTEGRAL
ILDLFR70D003-3
The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps. As well being very tough thanks to its steel construction, The Evofire is also a highly aesthetic choice for Fire Rated lighting. The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with your ceiling, so the downlight looks discreet and pleasing in any setting. Featuring a built-in Insulation Guard which allows loft insulation to be safely laid on top of the downlight, while maintaining air-flow around the lamp. This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details. Evofire shown with Real Colour GU10 LED lamp (sold separately).
Details
- Quick Order Code:
- 136252
- Barcode:
- 5055788228530
- Category:
- Downlights
- Range Name:
- Evofire
- Product Type:
- Fire Rated
- Product Body Finish:
- Matt white
- Market Segment:
- Commercial indoor, Residential indoor
- Finish:
- Matt White
- Features:
- With Insulation Guard
- Fixed/Tiltable:
- Fixed
- Warranty (Years):
- 3
- CE RoHS:
- Yes
Physical Data
- Product Depth (mm):
- 83
- Product Weight (g):
- 491
- Material:
- Steel, Glass
- Overall diameter (mm):
- 85
- Construction:
- Pressed Steel, Glass
- Cut Out Diameter (mm):
- 70
- Bulb or Luminaire Shape:
- Round
- Luminaire Fixing:
- Recess mounted
- Placement / Application:
- Indoor, General Lighting
Electrical Data
- Insulation Guard:
- Yes
Light Data
- Fire Rating (mins):
- 30, 60, 90
Environment
- CE RoHS:
- Yes
- IP Rating (Back/Recessed side):
- IP20
- IP Rating (Ingress Protection):
- IP65
Packaging
- Package Weight (g):
- 506
- Package Length (mm):
- 185
- Package Width (mm):
- 105
- Package Depth (mm):
- 125
- Qty per euro pallet:
- 544
