EVOFIRE 85 FIRE RATED DOWNLIGHT 70MM CUTOUT 4PACK IP65 WHITE ROUND +GU10 HOLDER INTEGRAL
ILDLFR70D001-4
The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps.
As well being very tough thanks to its steel construction, The Evofire is also a highly aesthetic choice for Fire Rated lighting. The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with your ceiling, so the downlight looks discreet and pleasing in any setting.
This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.

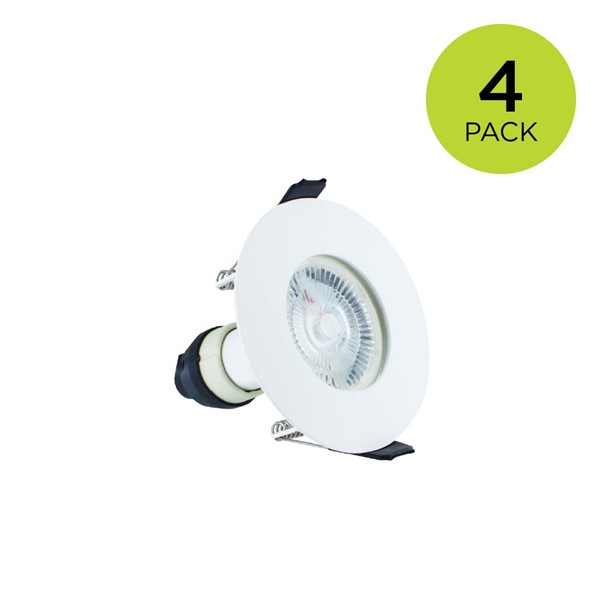

4-pack of Evofire downlights.

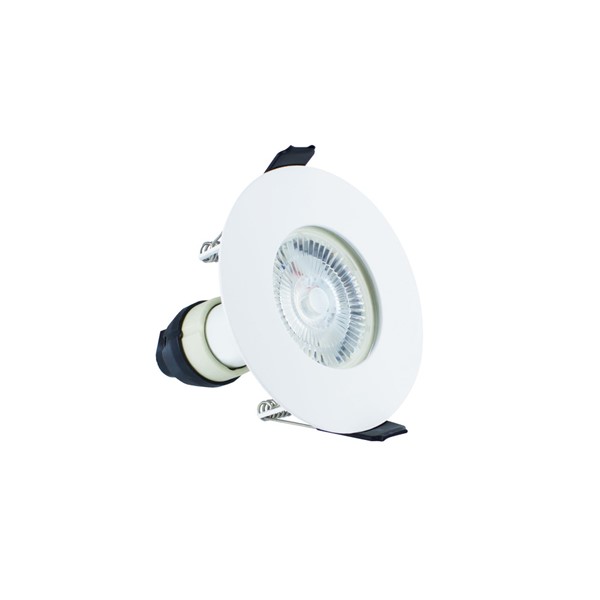

Evofire shown with Real Colour GU10 LED lamp (sold separately).
Note: Warranty increased to 7 years on 27/03/2025
Note: Warranty increased to 7 years on 27/03/2025
Details
- Barcode:
- 5055788228356
- Quick Order Code:
- 135927
- Product Type:
- Fire Rated
- Category:
- Downlights
- Range Name:
- Evofire 85
- Fixed/Tiltable:
- Fixed
- Finish:
- White
- Product Body Finish:
- White
- Market Segment:
- Commercial indoor, Residential indoor
- Warranty (Years):
- 7
Physical Data
- Bulb or Luminaire Shape:
- Round
- Cut Out Diameter (mm):
- 70
- Overall diameter (mm):
- 85
- Product Depth (mm):
- 39
- Product Weight (g):
- 556
- Material:
- Steel, Glass
- Construction:
- Pressed Steel, Glass
- Luminaire Fixing:
- Recess mounted
- Placement / Application:
- Everyday GU10 lighting, Replacing old downlights
Electrical Data
- Insulation Guard:
- No
Light Data
- Fire Rating (mins):
- 30, 60, 90 for solid timber joist, 30, 60 for I-Joist, 30 for metal web joist
Environment
- IP Rating (Back/Recessed side):
- IP20
- IP Rating (Ingress Protection):
- IP65
- CE RoHS:
- Yes
Packaging
- Single box qty:
- 4
- Barcode:
- 5055788228356
- Package Weight (g):
- 571
- Package Length (mm):
- 245
- Package Width (mm):
- 115
- Package Depth (mm):
- 75
- Inner Carton Barcode:
- 05055788228370
- Qty per Inner Carton :
- 10
- Inner Carton Length (mm):
- 310
- Inner Carton Width (mm):
- 230
- Inner Carton Depth (mm):
- 75
- Qty per Outer Carton:
- 96
- Outer Carton Length (mm):
- 510
- Outer Carton Width (mm):
- 480
- Outer Carton Depth (mm):
- 250
- Qty per euro pallet:
- 816
