Product Specification Sheet

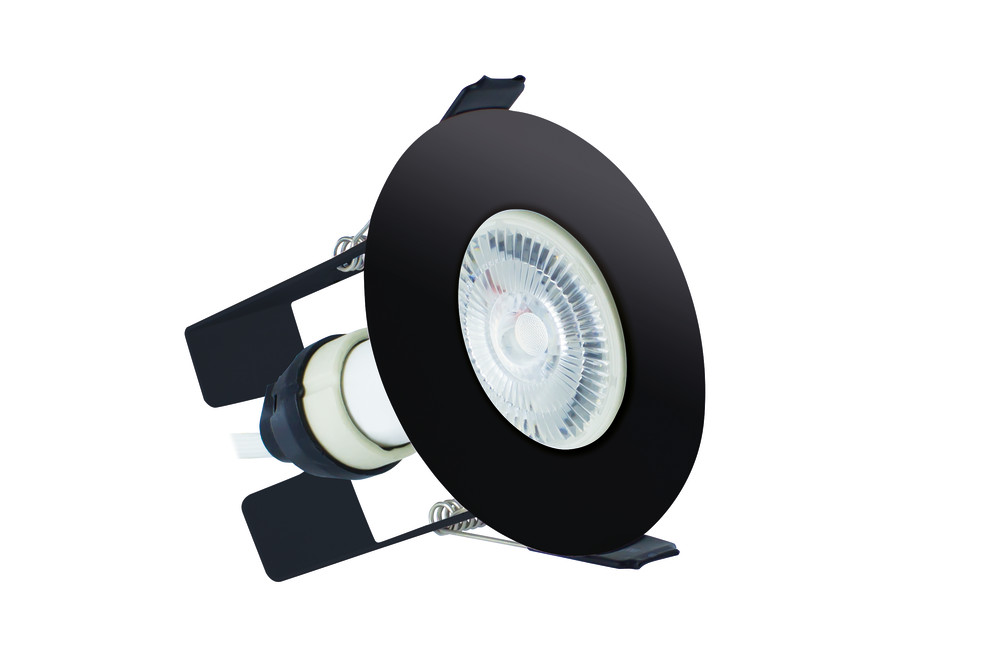

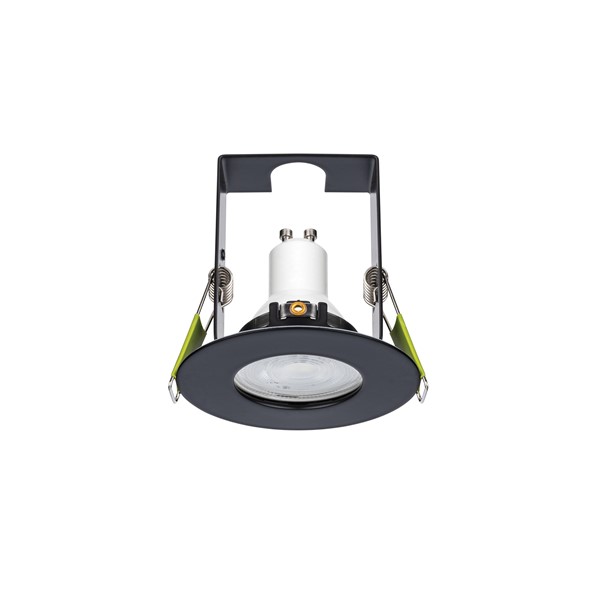

EVOFIRE FIRE RATED DOWNLIGHT 70MM CUTOUT IP65 BLACK ROUND +GU10 HOLDER & INSULATION GUARD INTEGRAL

ILDLFR70D029

The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps. As well being very tough thanks to its steel construction, The Evofire is also a highly aesthetic choice for Fire Rated lighting. The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with your ceiling, so the downlight looks discreet and pleasing in any setting. Featuring a built-in Insulation Guard which allows loft insulation to be safely laid on top of the downlight, while maintaining air-flow around the lamp. This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.

Details

Quick Order Code:
931783
Barcode:
5055788253815
Category:
Downlights
Range Name:
Evofire
Product Body Finish:
Black
Market Segment:
Commercial indoor, Residential indoor
Features:
With Insulation Guard
Warranty (Years):
3
CE RoHS:
Yes

Physical Data

Product Depth (mm):
83
Product Weight (g):
173
Material:
Steel, Glass
Overall diameter (mm):
85
Construction:
Pressed Steel, Glass
Cut Out Diameter (mm):
70
Bulb or Luminaire Shape:
Round
Luminaire Fixing:
Recess mounted
Placement / Application:
Indoor, General Lighting

Electrical Data

Light Data

Fire Rating (mins):
30, 60, 90

Environment

CE RoHS:
Yes
IP Rating (Back/Recessed side):
20
IP Rating (Ingress Protection):
IP65

Packaging

Package Weight (g):
188
Package Length (mm):
90
Package Width (mm):
90
Package Depth (mm):
115
Qty per euro pallet:
1360
