Product Specification Sheet

EVOFIRE 85 FIRE RATED DOWNLIGHT 70MM CUTOUT IP65 SATIN NICKEL RECESSED +GU10 HOLDER INTEGRAL

ILDLFR70E002

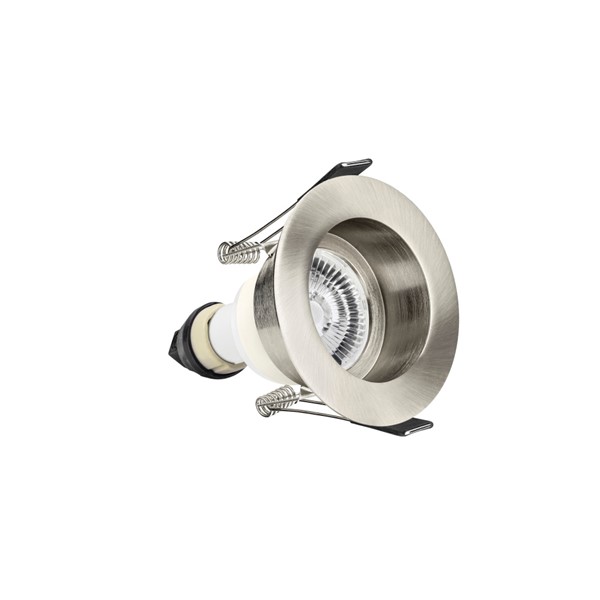

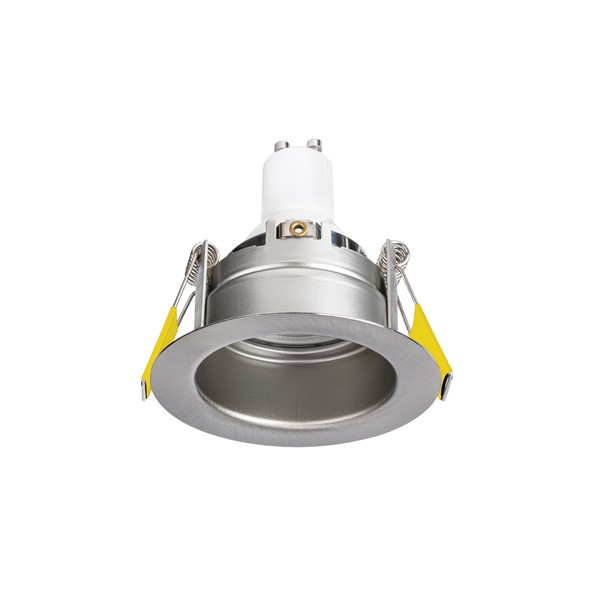

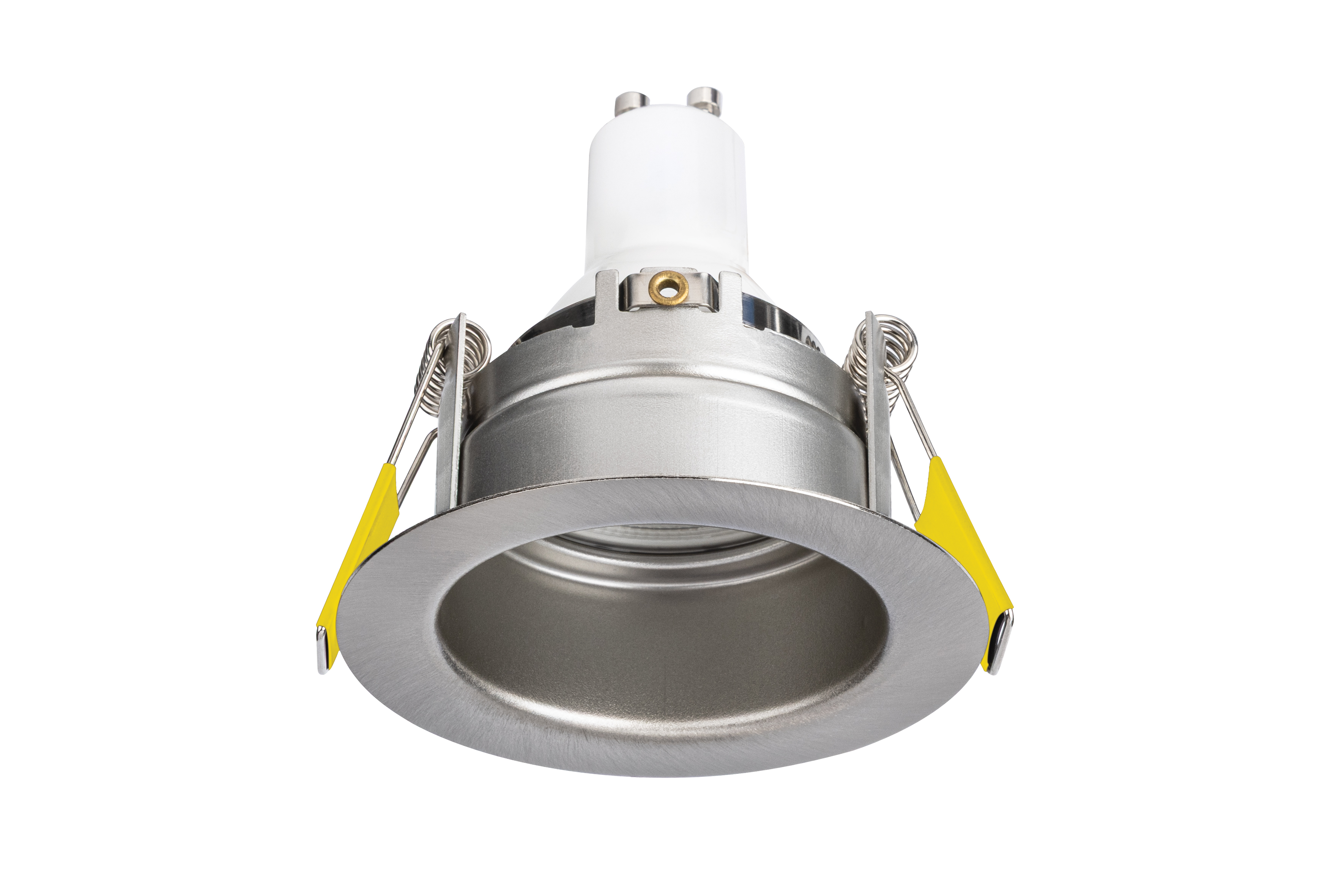

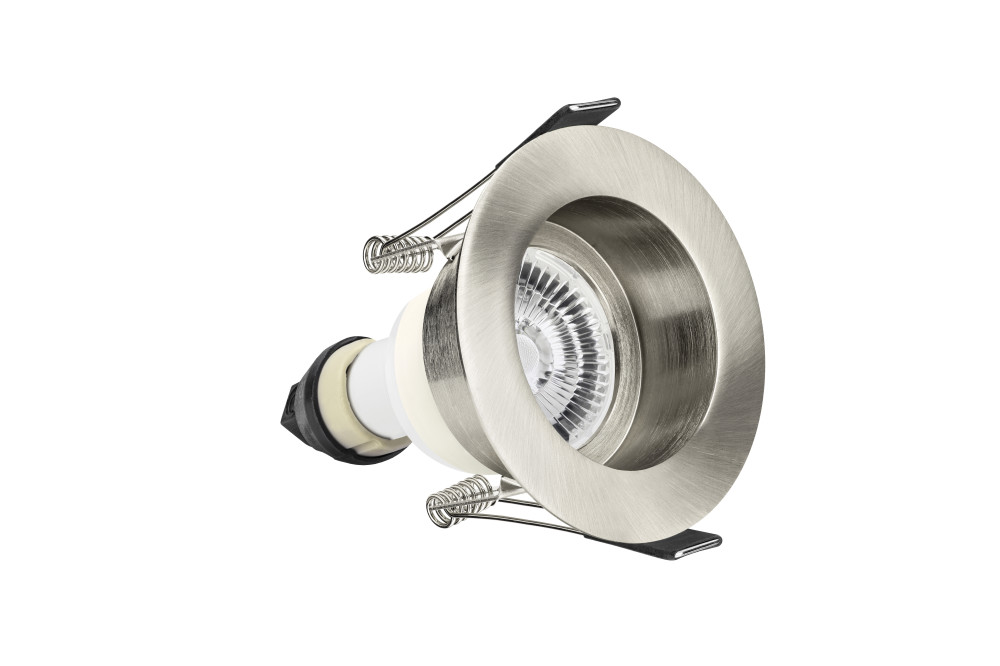

The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps. This recessed model holds the lamp higher in the ceiling, resulting in a designer look with lower glare. The 1mm 'blend-in' bezel fits almost flush with the ceiling, making this one of the most subtle looking fire rated downlight solutions available. This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details. Evofire shown with Real Colour GU10 LED lamp (sold separately). Note: Warranty increased to 7 years on 27/03/2025

Details

Barcode:
5055788228776
Quick Order Code:
138004
Category:
Downlights
Product Type:
Fire Rated
Range Name:
Evofire 85
Fixed/Tiltable:
Fixed
Finish:
Satin Nickel
Product Body Finish:
Satin Nickel
Market Segment:
Commercial indoor, Residential indoor
Warranty (Years):
7

Physical Data

Bulb or Luminaire Shape:
Round Recessed
Cut Out Diameter (mm):
70
Overall diameter (mm):
85
Product Depth (mm):
38
Product Weight (g):
165
Material:
Steel, Glass
Construction:
Pressed Steel, Glass
Luminaire Fixing:
Recess mounted
Placement / Application:
Low glare & mood lighting

Electrical Data

Insulation Guard:
No
EN:
EN-60598
LVD Certified:
Yes

Light Data

Fire Rating (mins):
30, 60, 90 for solid timber joist, 30, 60 for I-Joist, 30 for metal web joist

Environment

IP Rating (Back/Recessed side):
IP20
IP Rating (Ingress Protection):
IP65
EN:
EN-60598
LVD Certified:
Yes
CE RoHS:
Yes
Hg 0% (Mercury Free):
Yes

Packaging

Barcode:
5055788228776
Single box qty:
1
Package Weight (g):
180
Package Length (mm):
90
Package Width (mm):
90
Package Depth (mm):
90
Inner Carton Barcode:
05055788228783
Qty per Inner Carton :
10
Inner Carton Length (mm):
450
Inner Carton Width (mm):
180
Inner Carton Depth (mm):
90
Qty per Outer Carton:
100
Outer Carton Length (mm):
470
Outer Carton Width (mm):
380
Outer Carton Depth (mm):
475
