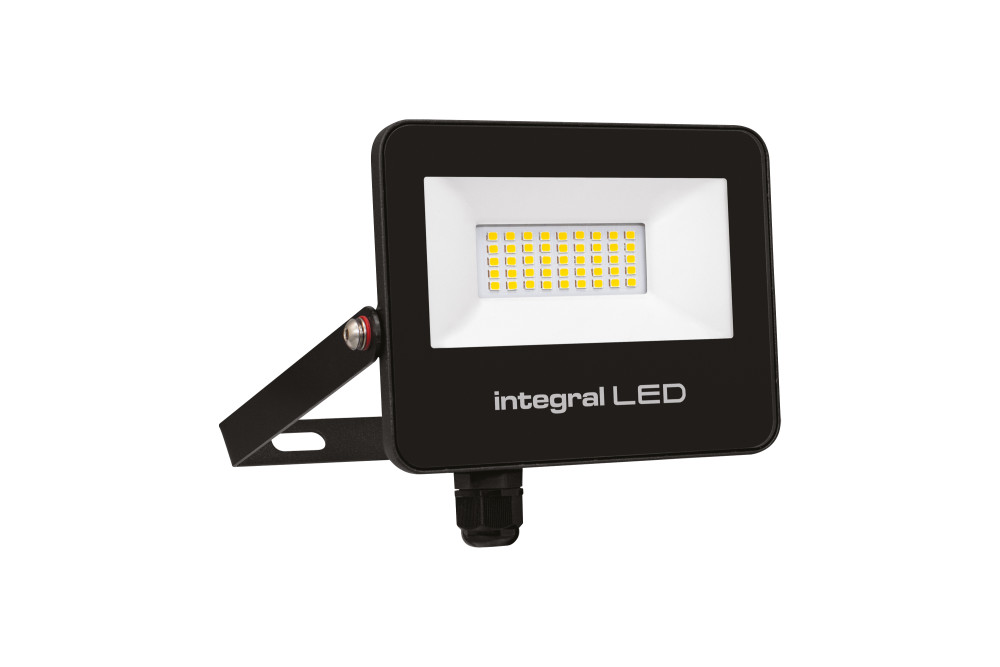

SUPER SLIM 2 FLOODLIGHT IP67 3000LM 30W 4000K 120? NON-DIMM 100LM/W BLACK INTEGRAL
ILFLC232
This small and compact fitting is rated at IP67 and perfect for indoor and outdoor applications. It is highly efficient and durable making it a popular choice for long life applications. It utilises branded drivers and chips and it is fully guaranteed for 3 years.
Details
- Quick Order Code:
- 117792
- Barcode:
- 5055788254058
- Category:
- Luminaires
- Range Name:
- Super Slim 2
- Product Body Finish:
- Matt Black
- Market Segment:
- Commercial indoor, Residential indoor, Outdoor
- Finish:
- Matt Black
- Warranty (Years):
- 3
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 178
- Product Depth (mm):
- 31
- Product Width (mm):
- 186
- Product Weight (g):
- 810
- Optic:
- Clear Refractor
- Material:
- Aluminium, Polycarbonate, Tempered glass
- Construction:
- Die Cast Aluminium
- Bulb Fixing:
- Uplighters, Floodlights
- Bulb or Luminaire Shape:
- Rectangle
- Luminaire Fixing:
- Wall
- Placement / Application:
- Indoor, Outdoor, General Lighting
- Spot Type:
- SMD
Electrical Data
- Power Consumption (W) :
- 30
- Power Factor:
- 0.7
- Voltage Range (v):
- 220-240
- Input Voltage (V):
- 220-240
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- Protection Function:
- Short circuit, overload and over heating
- EN:
- EN-60598
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 3000
- Luminous efficacy (lm/W):
- 100
- Correlated Colour Temperature (CCT) (K):
- 4000
- Colour Temperature:
- 4000K - Cool White
- Colour Temperature Name:
- Cool White
- Beam Angle:
- 110
- Colour Rendering Index (CRI):
- 80
- Colour Type:
- Single
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Size (mm):
- 2835
- LED Type:
- Surface mounted device (SMD)
- Lifetime (hours):
- 35000
- Lighting Method:
- Back-lit
- Switching Cycles:
- 15000
- Useful Lumens (lm):
- 400
Environment
- EN:
- EN-60598
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- New Energy Rating:
- E
- Hg 0% (Mercury Free):
- Yes
- IK Rating (Impact Protection):
- IK08
- IP Rating (Back/Recessed side):
- IP67
- IP Rating (Ingress Protection):
- IP67
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 45
Packaging
- Package Weight (g):
- 910
- Package Length (mm):
- 188
- Package Width (mm):
- 196
- Package Depth (mm):
- 35
