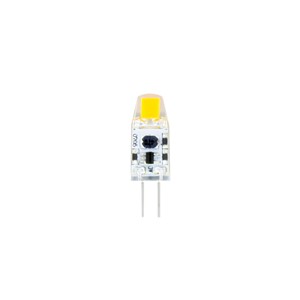

G4 BULB 110LM 1W 2700K NON-DIMM 320 BEAM CLEAR INTEGRAL
ILG4NC003
Integral LED G4 lamps run at 1W and offer a lifetime of thousands of hours more than their halogen equivalents. This makes them an ideal retrofit for existing G4 fittings.
Details
- Barcode:
- 5055788224501
- Quick Order Code:
- 592196
- Category:
- Lamps
- Range Name:
- G4
- Product Type:
- G4
- Market Segment:
- Commercial indoor, Residential indoor
- Warranty (Years):
- 2
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 33
- Product Width (mm):
- 10
- Product Weight (g):
- 2
- Material:
- Silicone
- Base Term:
- G4
- Bulb Base:
- G4
- Construction:
- Silicone
- Globe Finish:
- Clear
- Bulb Fixing:
- Pendant, Wall, Desktop
- Bulb or Luminaire Shape:
- Oval
- Placement / Application:
- Indoor, General Lighting
Electrical Data
- Power (W):
- 1
- Power Consumption (W) :
- 1
- Power Factor:
- 0.7
- Voltage Range (v):
- 12
- Wattage equivalent (W):
- 10
- Amperage (mA):
- 124
- Dimming:
- Non-Dimmable
- Driver Included:
- No, needs 12V AC/DC Transformer
- Electric Current:
- AC/DC
- EN:
- EN 61547:2009
Light Data
- Luminous Flux in Lumens (lm):
- 95
- Luminous efficacy (lm/W):
- 95
- Correlated Colour Temperature (CCT) (K):
- 2700
- Colour Temperature:
- 2700K - Warm
- Colour Temperature Name:
- Warm
- Beam Angle:
- 300
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Type:
- COB
- Lifetime (hours):
- 15000
- Switching Cycles:
- 50000
Environment
- EN:
- EN 61547:2009
- CE RoHS:
- Yes
- Previous Energy Rating:
- A++
- New Energy Rating:
- F
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Ingress Protection):
- IP20
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 40
Packaging
- Package Weight (g):
- 3
- Package Length (mm):
- 36
- Package Width (mm):
- 15
- Package Depth (mm):
- 15
- Qty per euro pallet:
- 80000
