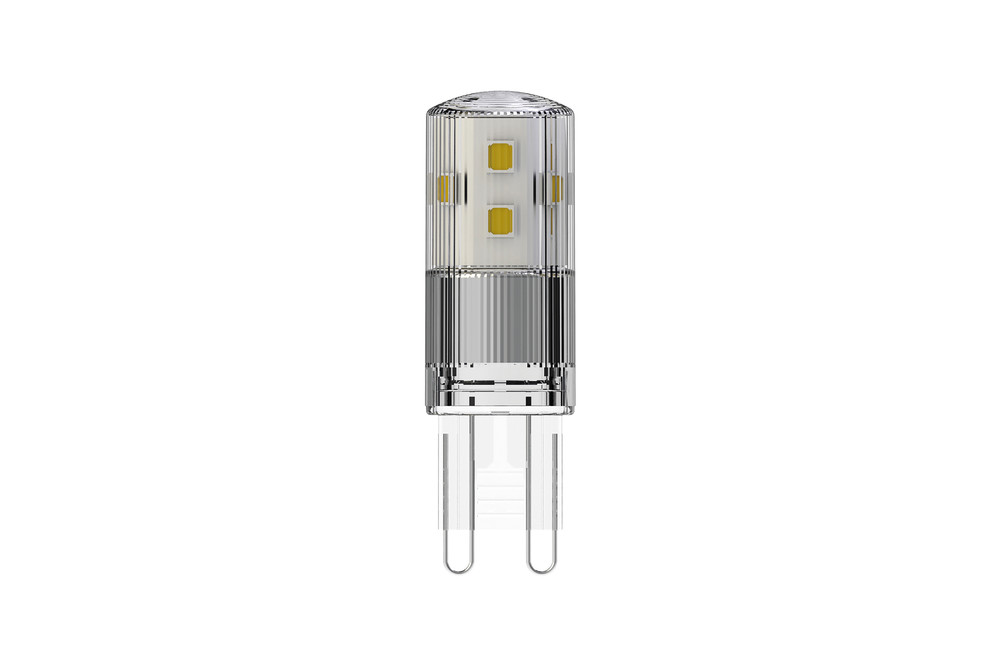

G9 BULB 320LM 2.6W 4000K NON-DIMM 300 BEAM INTEGRAL
ILG9NE013
Integral LED G9 lamps offer a high lumen output in Cool White or Warm White. At 2.6W they are highly efficient compared to the halogen lamps they are designed to replace.
Details
- Barcode:
- 5055788260189
- Quick Order Code:
- 429959
- Category:
- Lamps
- Range Name:
- Everyday
- Market Segment:
- Commercial indoor, Residential indoor
- Warranty (Years):
- 2
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 52
- Product Width (mm):
- 16
- Product Weight (g):
- 1
- Material:
- Plastic
- Base Term:
- G9
- Bulb Base:
- G9
- Construction:
- Plastic
- Globe Finish:
- Clear
- Bulb or Luminaire Shape:
- Cylindrical
- Placement / Application:
- Indoor, General Lighting
- Spot Type:
- SMD
Electrical Data
- Power Consumption (W) :
- 2.6
- Power Factor:
- 0.4
- Voltage Range (v):
- 220-240
- Wattage equivalent (W):
- 30
- Amperage (mA):
- 24
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- True Wattage Eq (W):
- 30
- EN:
- EN-62560
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 320
- Luminous efficacy (lm/W):
- 123
- Correlated Colour Temperature (CCT) (K):
- 4000
- Colour Temperature:
- 4000K - Cool White
- Colour Temperature Name:
- Cool White
- Beam Angle:
- 300
- Colour Rendering Index (CRI):
- 80
- Colour Type:
- Single
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Type:
- COB
- Lifetime (hours):
- 15000
- Switching Cycles:
- 50000
Environment
- EN:
- EN-62560
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- Previous Energy Rating:
- A++
- New Energy Rating:
- E
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Ingress Protection):
- IP20
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 40
Packaging
- Package Weight (g):
- 15
- Package Length (mm):
- 60
- Package Width (mm):
- 25
- Package Depth (mm):
- 25
