OUTDOOR DECORATIVE WALL LIGHT CROSSCUBE IP54 230LM 6W 3000K 2 WAY LIGHT DARK GREY INTEGRAL
ILDEB034

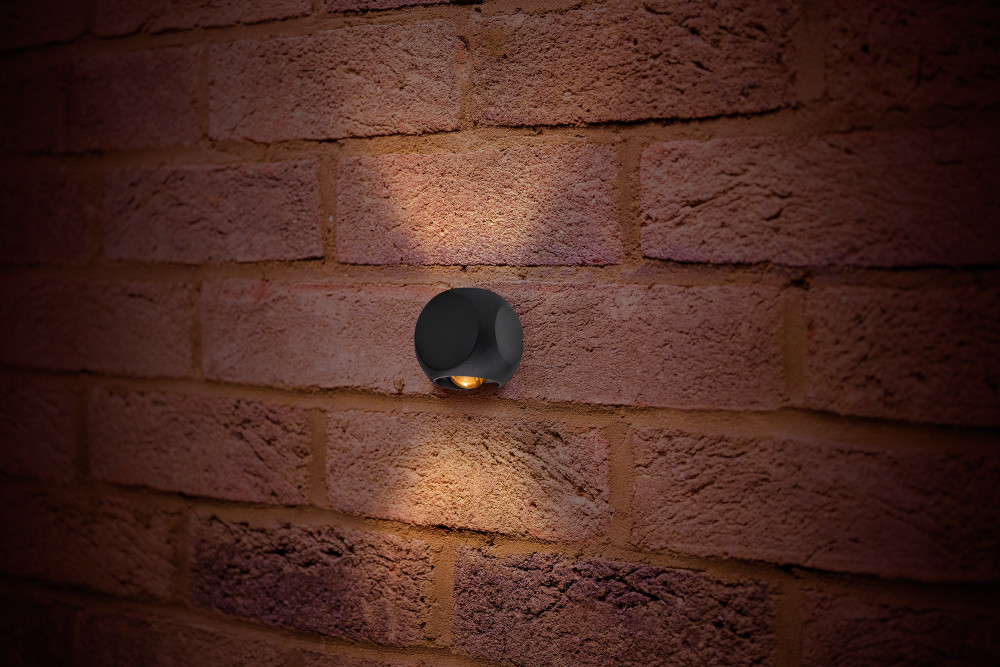

A wide range of decorative light patterns are possible with the Crosscube. This compact, cube shaped luminaire features 2-way or 4-way LEDs that wash the wall with a pleasing conical beam. Multiple units spaced across a wall will create intersecting light patterns that will add a wow factor to any exterior facade.
Details
- Barcode:
- 5055788251170
- Quick Order Code:
- 242215
- Category:
- Luminaires
- Range Name:
- Wall Light
- Product Type:
- Outdoor
- Product Body Finish:
- Dark Grey
- Warranty (Years):
- 3
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 81.6
- Product Depth (mm):
- 50.5
- Product Width (mm):
- 70
- Product Weight (g):
- 290
- Optic:
- Polycarbonate diffuser
- Material:
- Die cast aluminium body with powder coated finish
- Construction:
- Aluminium body, Polycarbonate diffuser
- Bulb or Luminaire Shape:
- Square
- Luminaire Fixing:
- Wall Mounted
Electrical Data
- Power Consumption (W) :
- 6
- Power Factor:
- 0.5
- Voltage Range (v):
- 220-240VAC 50/60Hz
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- EN:
- EN 60598, EN 55015, EN 61547, EN 61000
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 230
- Luminous efficacy (lm/W):
- 38
- Correlated Colour Temperature (CCT) (K):
- 3000
- Colour Temperature:
- 3000
- Colour Temperature Name:
- Warm White
- Beam Angle:
- 45
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Manufacturer:
- CREE
- LED Type:
- Surface mounted device (SMD)
- Lifetime (hours):
- 25000
- Switching Cycles:
- 15000
Environment
- EN:
- EN 60598, EN 55015, EN 61547, EN 61000
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- New Energy Rating:
- G
- EU Luminaire:
- L
- Hg 0% (Mercury Free):
- Yes
- IK Rating (Impact Protection):
- IK05
- IP Rating (Ingress Protection):
- IP54
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 40
Packaging
- Package Weight (g):
- 320
- Package Length (mm):
- 90
- Package Width (mm):
- 80
- Package Depth (mm):
- 65
