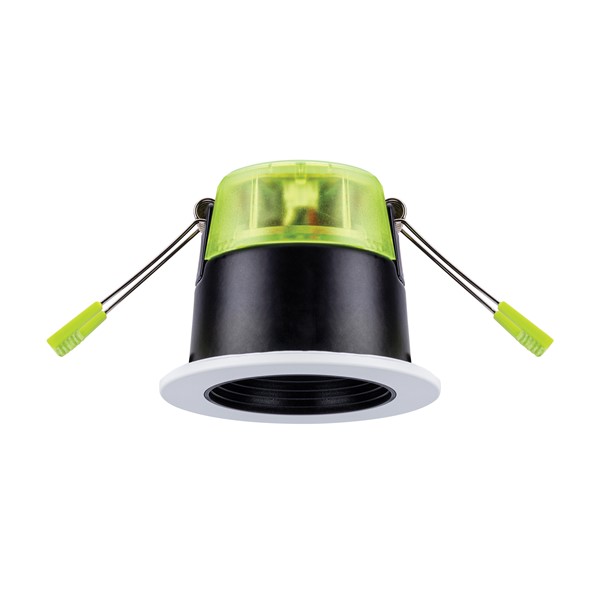

XFIRE LUX RECESSED 2400/2700/3000/4000K 3.4W/5.3W CCT AND WATTAGE SWITCHABLE 125LM/W 435LM/678LM FIRE-RATED DOWNLIGHT 60° BEAM DIMMABLE INC WHITE BEZEL BLACK BAFFLE AND WHITE BAFFLE
ILDLFR70X101
Details
- Barcode:
- 5056884605324
- Quick Order Code:
- 199541
- Category:
- Downlights
- Range Name:
- Xfire Lux
- Product Type:
- Fire Rated
- Product Body Finish:
- White
- Market Segment:
- Commercial indoor, Residential indoor
- Fixed/Tiltable:
- Fixed
- Warranty (Years):
- 10
Physical Data
- Product Depth (mm):
- 45
- Product Width (mm):
- 85
- Product Weight (g):
- 210
- Placement / Application:
- Indoor, General Lighting
- Material:
- Steel, Glass
- Overall diameter (mm):
- 85
- Construction:
- SPCC steel, Polycarbonate
- Cut Out Diameter (mm):
- 68
- Bulb or Luminaire Shape:
- Round
- Luminaire Fixing:
- Recess mounted
- Spot Type:
- SMD
Electrical Data
- Power (W):
- 3.4 / 5.3 (Power Switchable)
- Power Consumption (W) :
- 3.4 / 5.3 (Power Switchable)
- Power Factor:
- 0.8
- Voltage Range (v):
- 220-240
- Amperage (mA):
- 70
- Dimming:
- Mains dim
- Driver Included:
- Yes
- Electric Current:
- AC
- EN:
- Yes
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 435 to 678
- Luminous efficacy (lm/W):
- 125
- Fire Rating (mins):
- 30, 60, 90
- Correlated Colour Temperature (CCT) (K):
- 2400 / 2700 / 3000 / 4000 (CCT Switchable)
- Colour Temperature:
- 2400/2700/3000/4000 - Very Warm / Warm / Warm White / Cool White
- Colour Temperature Name:
- Warm, Warm White, Cool White, Very Warm
- Beam Angle:
- 60
- Colour Rendering Index (CRI):
- 80
- Compatible Dimmers:
- Varilight JQP401W
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- Integrated Light Source:
- Yes
- Switching Cycles:
- 25000
Environment
- EN:
- Yes
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Back/Recessed side):
- IP20
- IP Rating (Ingress Protection):
- IP65
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 90
Packaging
- Single box qty:
- 1
- Barcode:
- 5056884605324
- Package Weight (g):
- 270
- Package Length (mm):
- 110
- Package Width (mm):
- 110
- Package Depth (mm):
- 80
- Inner Carton Barcode:
- 5056884605324
- Outer Carton Barcode:
- 05056884605454
- Qty per Outer Carton:
- 36
- Outer Carton Length (mm):
- 460
- Outer Carton Width (mm):
- 345
- Outer Carton Depth (mm):
- 265
