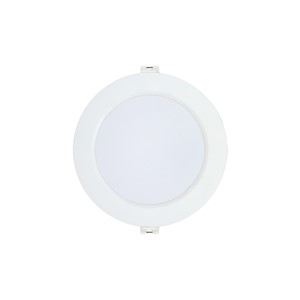

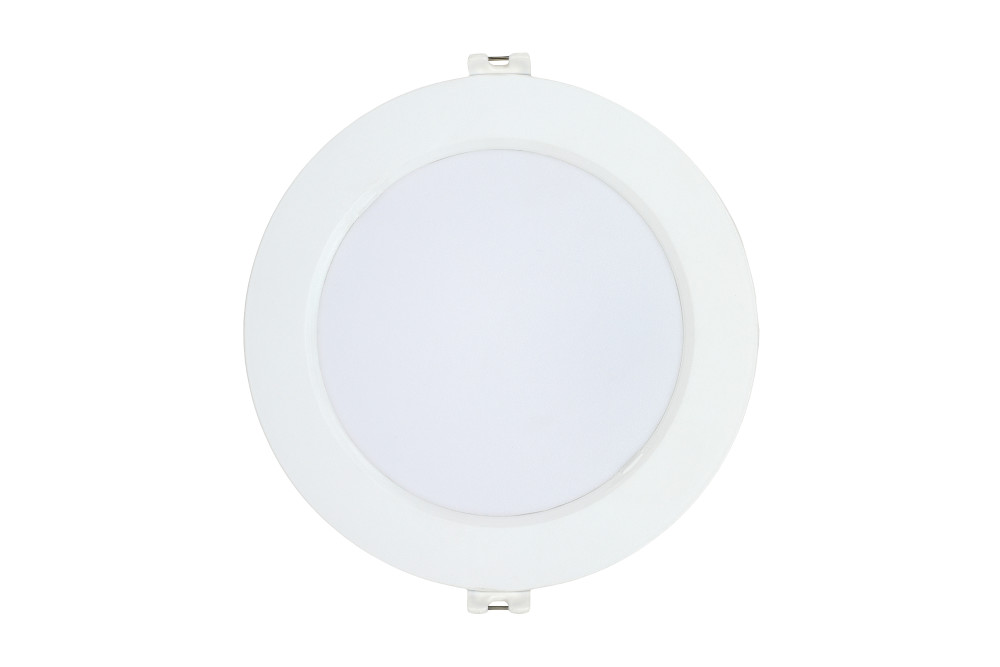

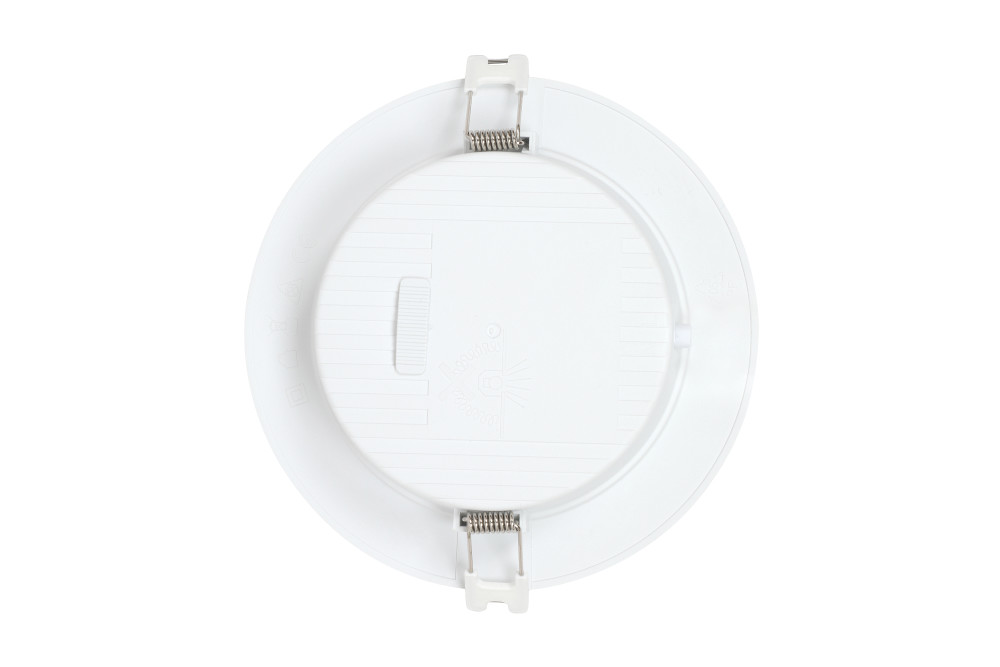

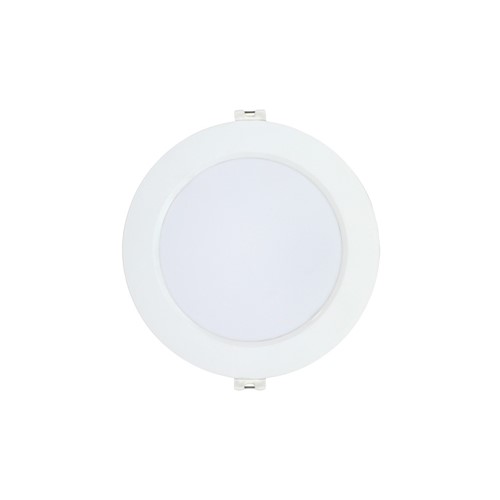

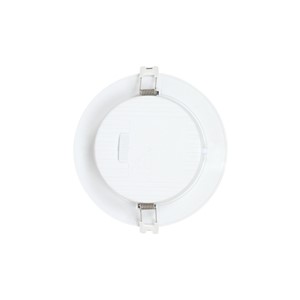

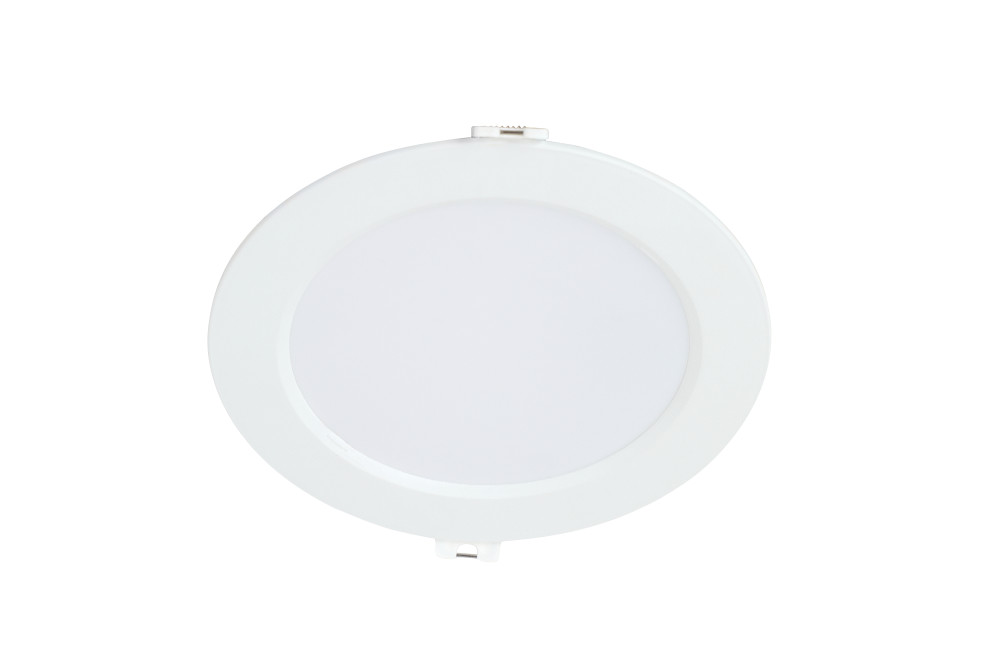

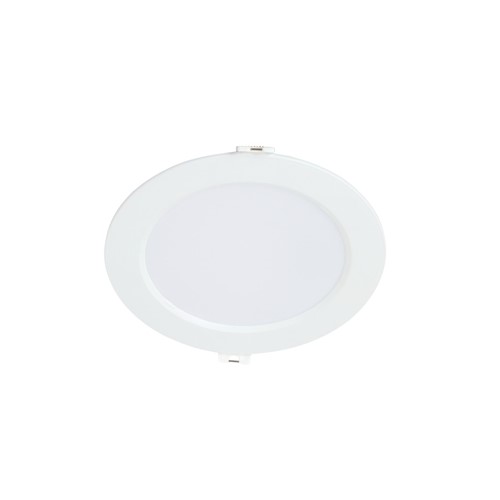

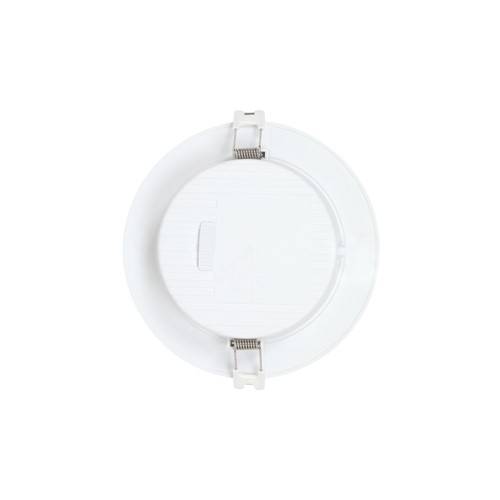

CIRCULAR PANEL DOWNLIGHT 145-150MM CUTOUT 12W 1200LM 100LM/W CCT SWITCHABLE 3000K/4000K/6500K NON-DIMMABLE
Part Number:
ILDL145V101
This circular panel downlight boats a clean, modern design with adjustable cutout and a thin 2mm bezel that blends seamlessly into your ceiling for the most discreet look possible. With a light output of up to 2400lm and efficacy of 100lm/w, you don’t need to sacrifice brightness for energy savings. Colour switchable for any lighting need from cozy warm white to energising cool white, this luminaire is ideal for both indoor retail and residential settings.
- Product Feature 1:
- Up to 100lm/W
- Product Feature 2:
- Clean, modern, high quality design
- Product Feature 3:
- Thin 2mm bezel for a seamless,flush finish
- Product Feature 4:
- Cut outs: 125mm - 275mm
- Product Feature 5:
- Up to 2400lm
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788312178 |
|---|---|
| Quick Order Code | 765233 |
| Category | Downlights |
| Range Name | Circular panel |
| Product Type | Downlight |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 170.8 |
| Product Depth (mm) | 28.4 |
| Product Width (mm) | 170.8 |
| Product Weight (g) | 112 |
| Diameter (mm) | 170.8 |
| Optic | PS Diffuser |
| Material | Plastic |
| Overall diameter (mm) | 170.8 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 145-150 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 1200 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000, 4000, 6500 |
| Colour Temperature | 3000/4000/6500 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 1200 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 12 |
|---|---|
| Power Consumption (W) | 12 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 93 |
| Input Current (A) | 0.093 |
| Input Voltage (V) | 230 |
| Output Current (mA) | 40 |
| Output Voltage (V) | 250 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Insulation Guard | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 35 |
Packaging
| Barcode | 5055788312178 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 122 |
| Package Length (mm) | 192 |
| Package Width (mm) | 175 |
| Package Depth (mm) | 39 |
| Outer Carton Barcode | 5055788312222 |
| Qty per Outer Carton | 60 |
| Outer Carton Length (mm) | 600 |
| Outer Carton Width (mm) | 415 |
| Outer Carton Depth (mm) | 375 |
| Qty per euro pallet | 960 |
