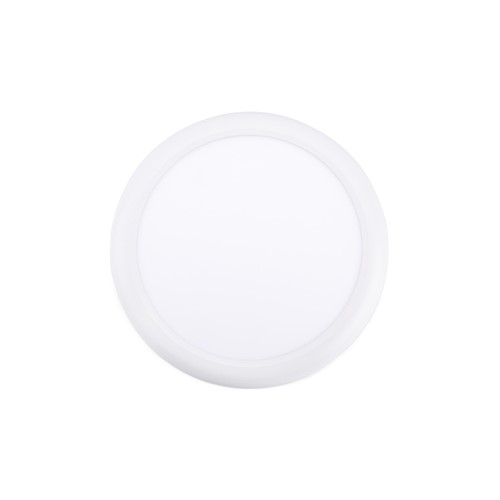

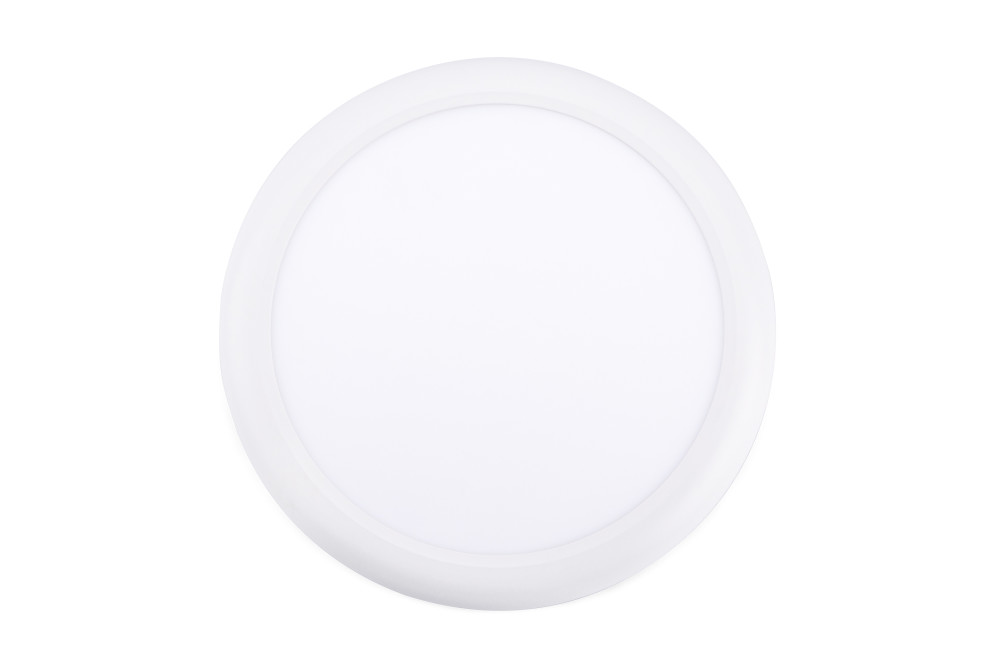

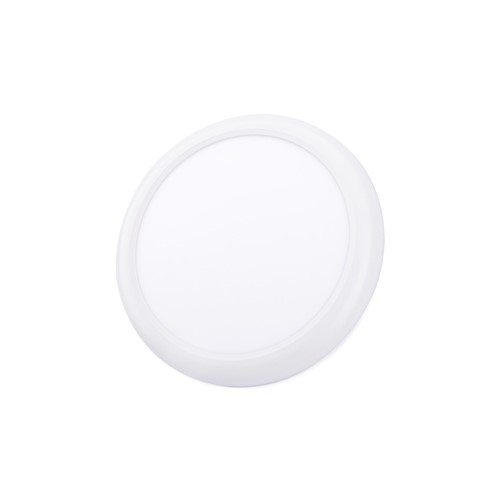

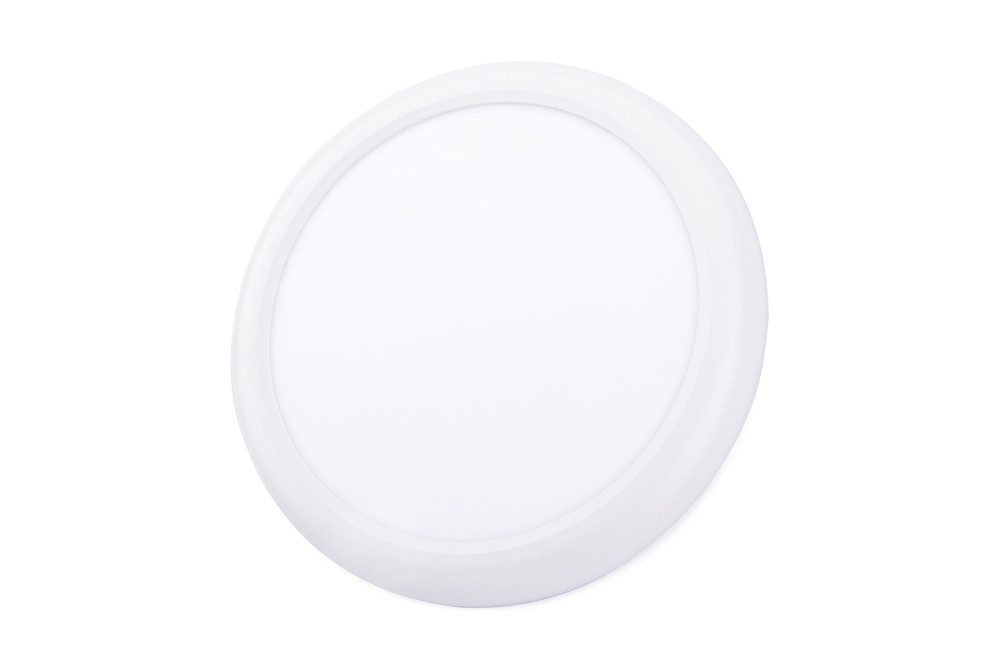

MULTI-FIT DOWNLIGHT 65-280MM CUTOUT 1600-2400LM 16/20/24W 3000/4000/6500K NON-DIMM 100LM/W WHITE INTEGRAL
Part Number:
ILDL275-65G024
- Product Feature 1:

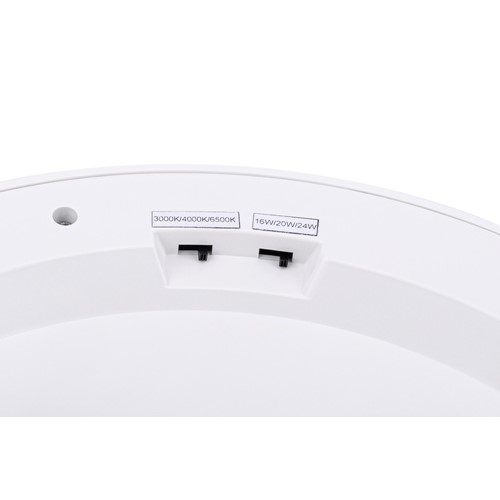

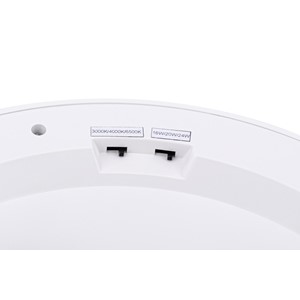

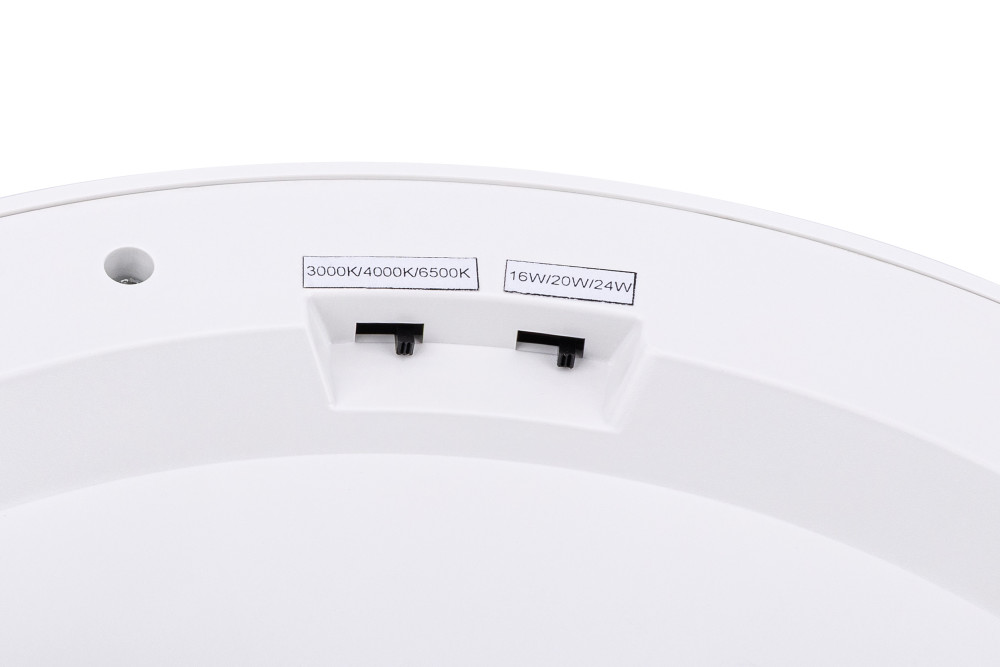

- CCT Switchable - 3000/4000/6500K
- Product Feature 2:
- Wattage (Light Output) Adjustable
- Product Feature 3:
- 100lm/W
- Product Feature 4:

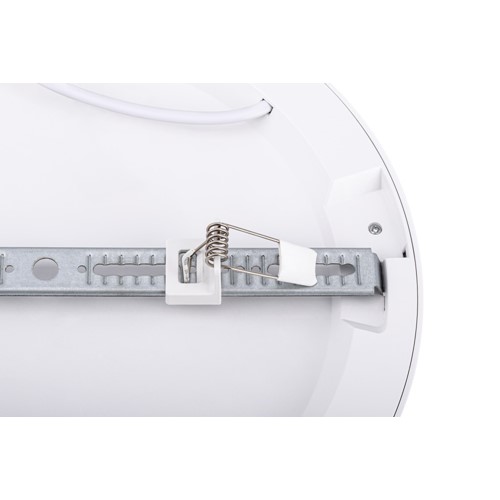

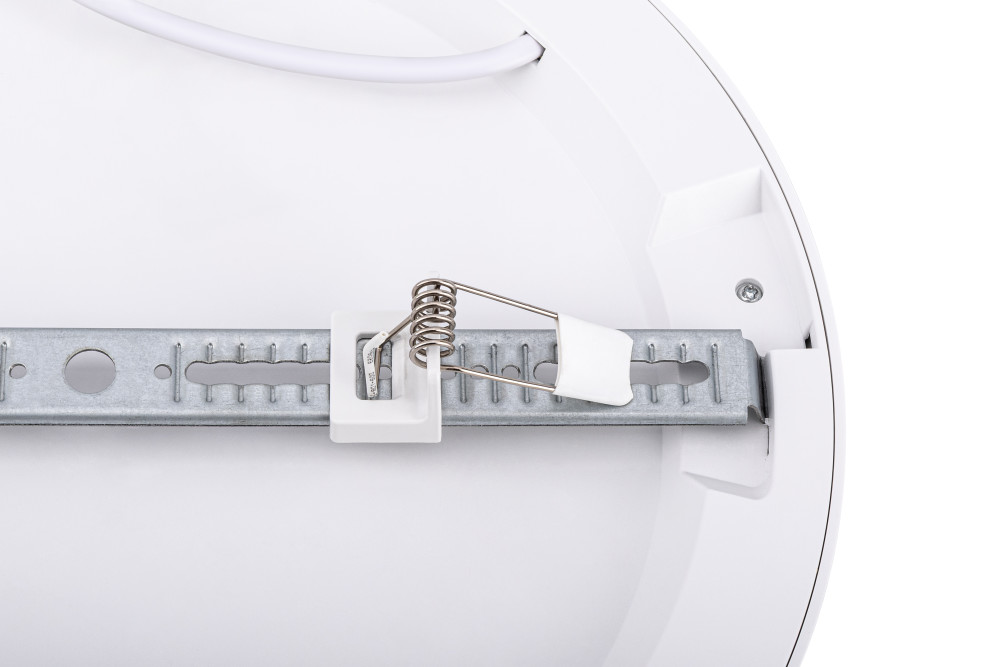

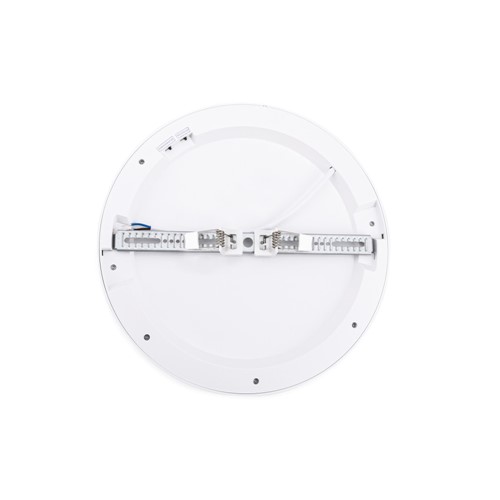

- Adjustable cut-out 65-280mm
- Product Feature 5:
- Surface mountable
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788299554 |
|---|---|
| Quick Order Code | 901058 |
| Category | Downlights |
| Range Name | Multi-Fit |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 22.5 |
| Product Weight (g) | 580 |
| Diameter (mm) | 300 |
| Optic | Opal diffuser |
| Material | Aluminium, PS |
| Overall diameter (mm) | 300 |
| Construction | Die cast Aluminium body, PS sheet diffuser |
| Cut Out Diameter (mm) | 65-280 |
| Cut Out Length (mm) | 65-280 |

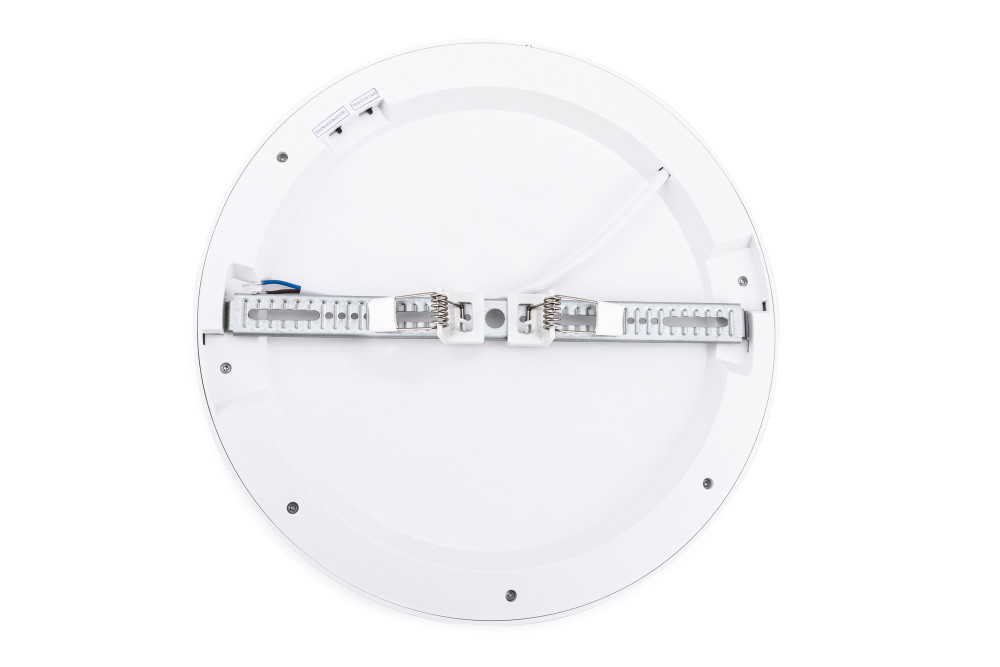

| Luminaire Fixing | Recess or surface mounted |
| Placement / Application | Indoor, General Lighting |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 1600-2400 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000, 4000, 6500 |
| Colour Temperature | 3000/4000/6500 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 36000 |
| Switching Cycles | 50000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 16/20/24 |
|---|---|
| Power Consumption (W) | 16/20/24 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 188 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788299554 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 670 |
| Package Length (mm) | 305 |
| Package Width (mm) | 30 |
| Package Depth (mm) | 305 |
| Outer Carton Barcode | 05055788299561 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 625 |
| Outer Carton Width (mm) | 330 |
| Outer Carton Depth (mm) | 320 |
| Qty per euro pallet | 360 |
Safety Guide
ILDL275-65G024 24W 3000K
