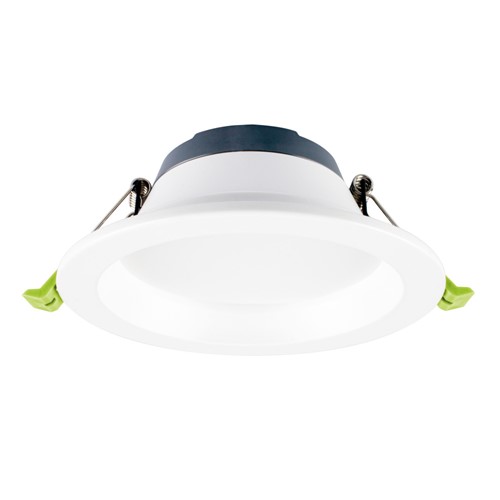

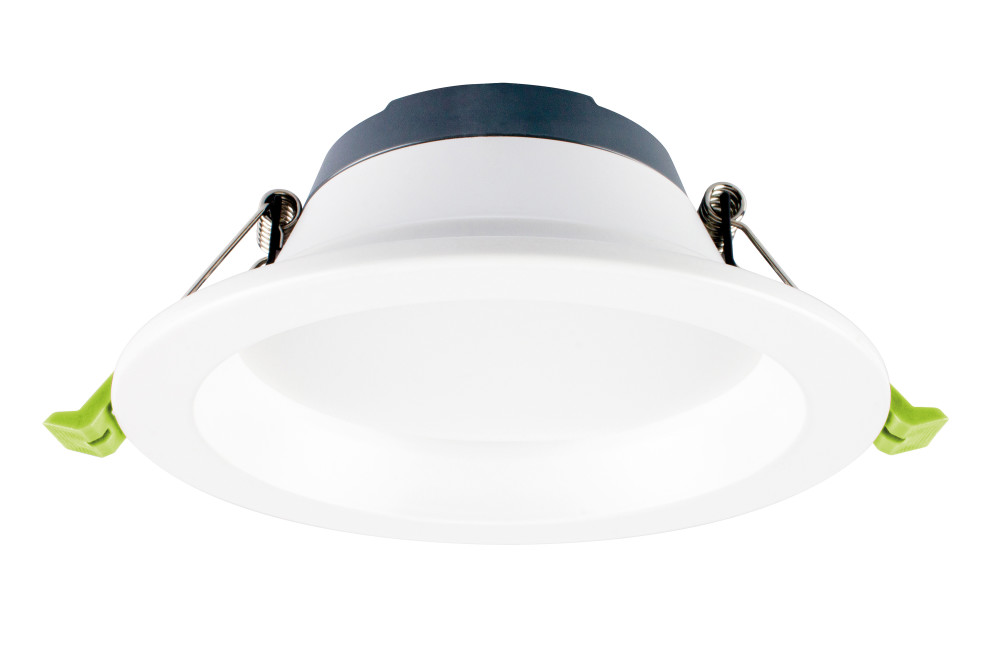

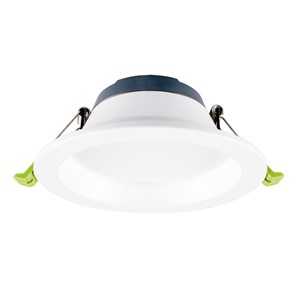

PERFORMANCE RECESS PL 145MM BEZEL 120-130MM CUTOUT 120LM/W 15W 1800LM 3000/4000/5700K CCT ALUMINIUM IP44 COMMERICAL DOWNLIGHT NON-DIM
Part Number:
ILDL145PR002
Create sleek, discreet lighting with Integral’s Performance Recess Commercial Downlight. The shallow recessed design and PC diffuser work together to create soft, uniform lighting with limited glare. Colour switchable and highly efficient, this downlight allows you to enjoy ultimate lighting versatility while saving energy. Plus, with four cutout options available, finding the light to fit your space is easy. Ideal for indoor commercial and residential settings. 5 years warranty for maximum peace of mind.
- Product Feature 1:
- High Efficacy - 120 lm/W
- Product Feature 2:
- Shallow recessed design
- Product Feature 3:
- Aluminimum body with PC diffuser
- Product Feature 4:
- CCT Switchable
- Product Feature 5:
- 4 sizes - cutout options from 90mm to 210mm
- Availability:
-
100+
More stock due in on 16/03/2026
Suggested products
Details
| Barcode | 5055788323594 |
|---|---|
| Quick Order Code | 624888 |
| Category | Downlights |
| Range Name | Performance Recess |
| Product Type | Downlight |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | CCT Switchable |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 145 |
| Product Depth (mm) | 66 |
| Product Width (mm) | 145 |
| Product Weight (g) | 200 |
| Diameter (mm) | 145 |
| Optic | PS Diffuser |
| Material | Aluminium, Plastic |
| Overall diameter (mm) | 145 |
| Construction | Aluminium body, Polycarbonate diffuser |
| Cut Out Diameter (mm) | 120-130 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 1800 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 5700, 3000, 4000 |
| Colour Temperature | 3000/4000/5700 - Warm White/Cool White/Daylight |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 1800 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 15 |
|---|---|
| Power Consumption (W) | 15 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 350 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Insulation Guard | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | B |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788323594 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 0.27 |
| Package Length (mm) | 165 |
| Package Width (mm) | 165 |
| Package Depth (mm) | 78 |
| Outer Carton Barcode | 05055788323631 |
| Qty per Outer Carton | 18 |
| Outer Carton Length (mm) | 515 |
| Outer Carton Width (mm) | 350 |
| Outer Carton Depth (mm) | 255 |
Safety Guide
ILDL145PR002-3000K
