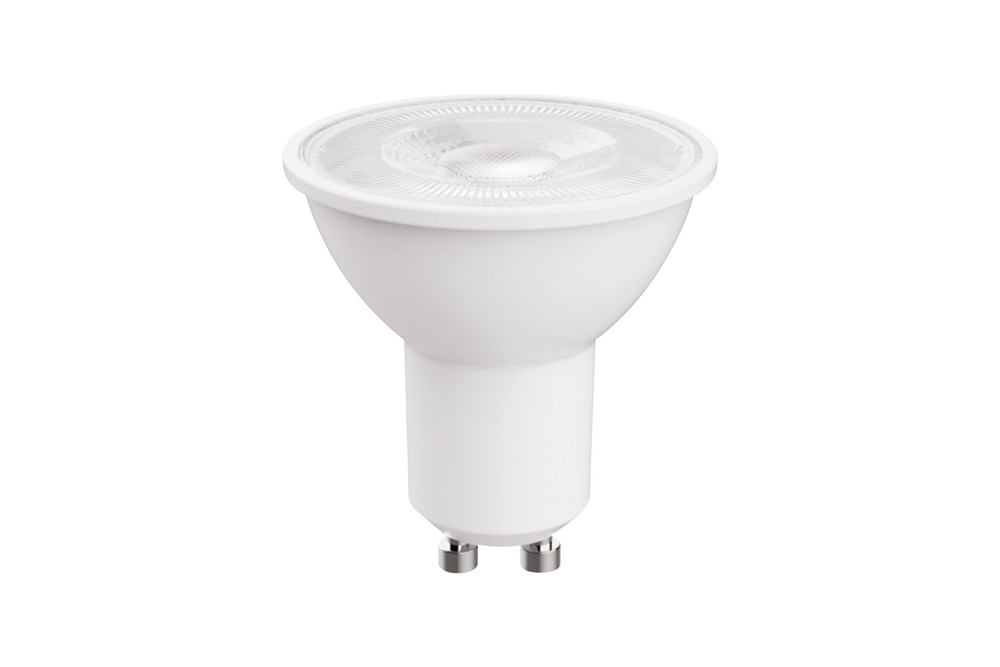

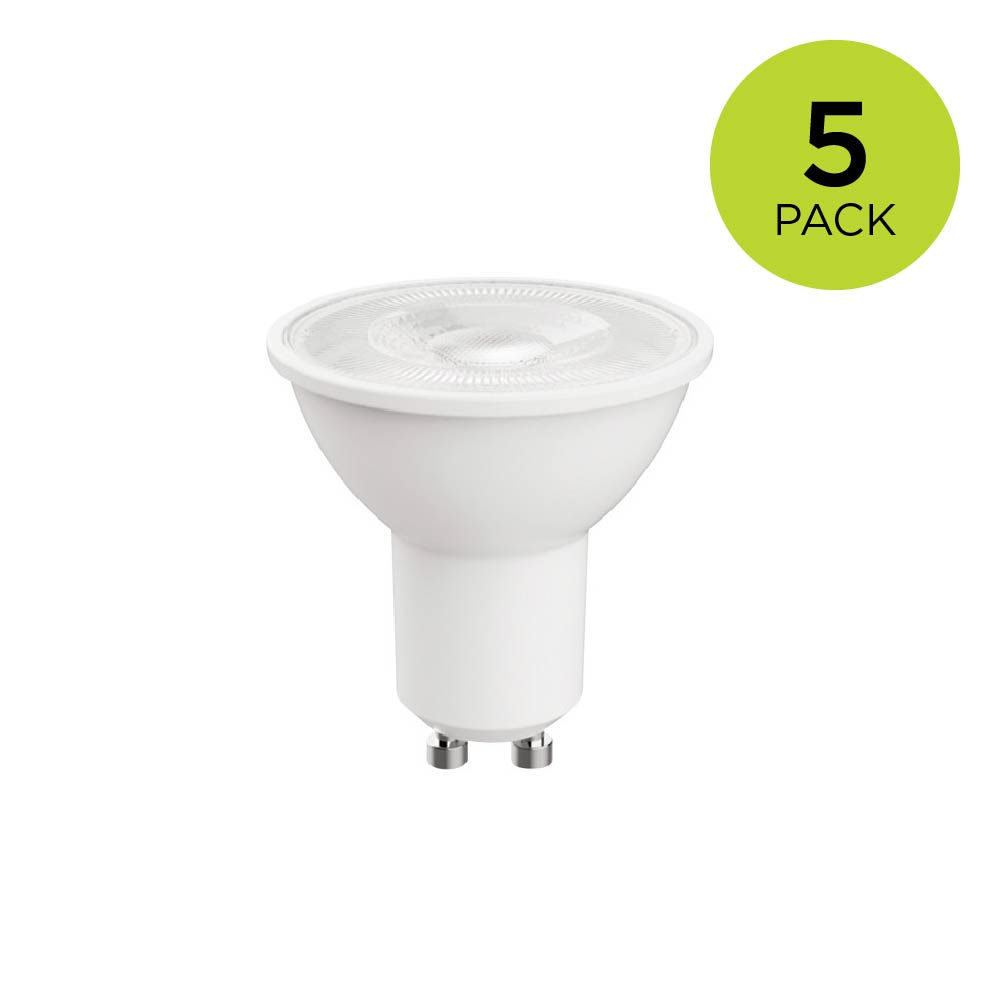

GU10 BULB 5 PACK 420LM 3.4W 4000K NON-DIMM 36 BEAM INTEGRAL
Part Number:
ILGU10NE103-5

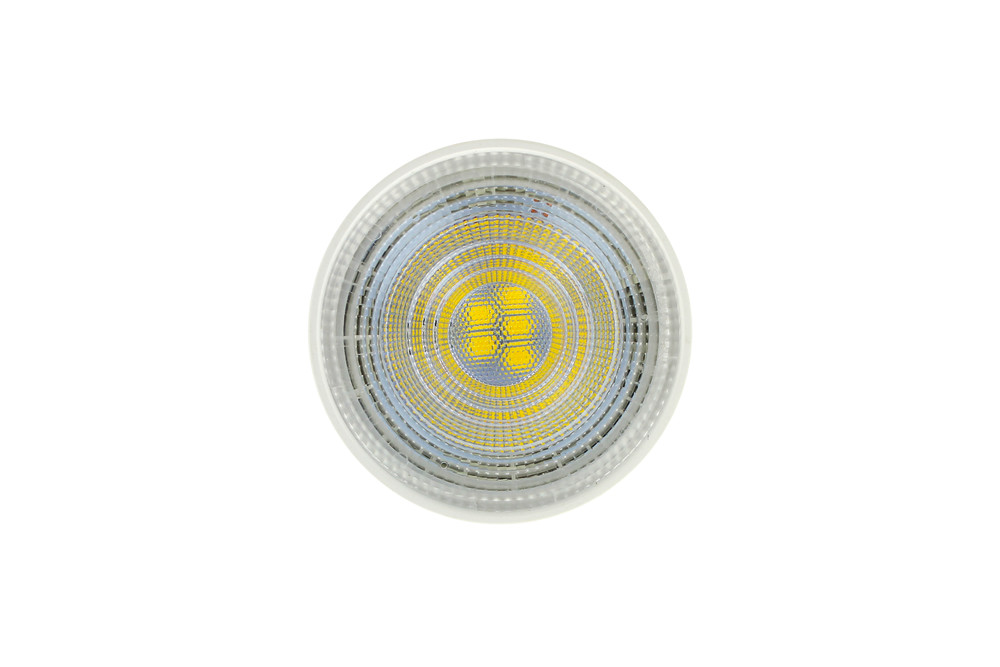

The cleverly engineered surface mounted LEDs of the Integral LED GU10 range give them an attractive look that is very similar to traditional halogen lamps.
These GU10 lamps will retrofit easily into existing fittings and provide significant energy savings and longer lifetime than the halogen lamps they are designed to replace.
- Product Feature 1:
- Cool White Light
- Product Feature 2:
- 345 Useful Lumens (420 Nominal)
- Product Feature 3:
- Non-Dimmable
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788323822 |
|---|---|
| Quick Order Code | 794241 |
| Category | Lamps |
| Product Type | GU10 |
| Range Name | Classic |
| Finish | Clear |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 2 |
Physical Data
| Bulb or Luminaire Shape | Round |
|---|---|
| Product Length (mm) | 54 |
| Product Width (mm) | 50 |
| Product Weight (g) | 23 |
| Material | Plastic and Aluminium heat-sink, Injection moulded diffuser |
| Construction | Plastic White and "Classic look" difuser lens |
| Optic | Designed to give a Classic Look |
| Base Term | GU10 |
| Bulb Base | GU10 |
| Spot Type | SMD |
Light Data
| Energy Efficiency Label (Image) | ILGU10NE103-5_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 420 |
| Luminous efficacy (lm/W) | 101 |
| Peak Intensity (Cd) | 690 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000 - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 345 |
Electrical Data
| Power (W) | 3.4 |
|---|---|
| Power Consumption (W) | 3.4 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 32 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 50 |
Environmental
| IP Rating (Ingress Protection) | IP20 |
|---|---|
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| EN | EN-62560 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | E |
Packaging
| Barcode | 5055788323822 |
|---|---|
| Single box qty | 5 |
| Package Weight (g) | 115 |
| Package Length (mm) | 105 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 60 |
| Outer Carton Barcode | 05055788323822 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 550 |
| Outer Carton Width (mm) | 230 |
| Outer Carton Depth (mm) | 140 |
Safety Guide
ILGU10NE103-5
