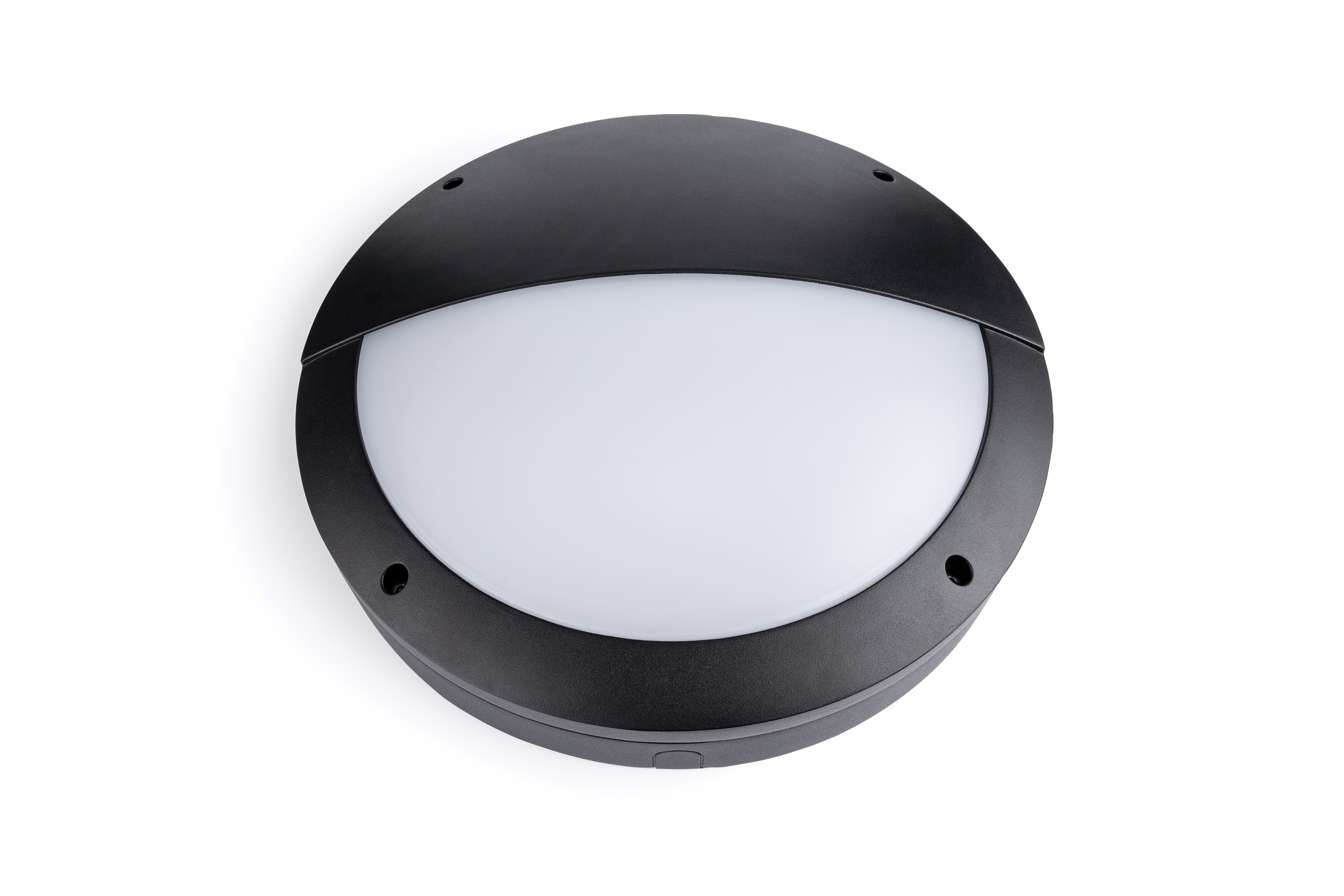

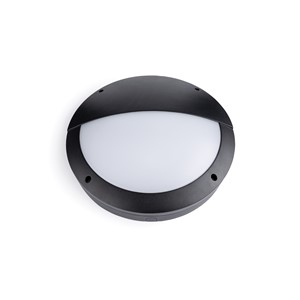

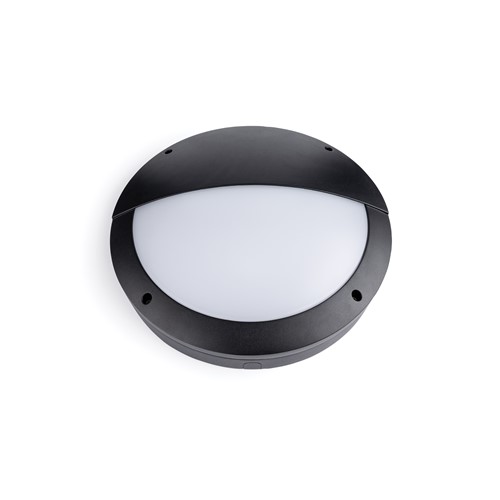

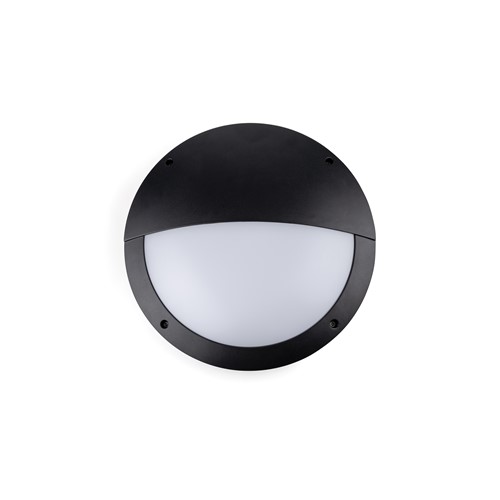

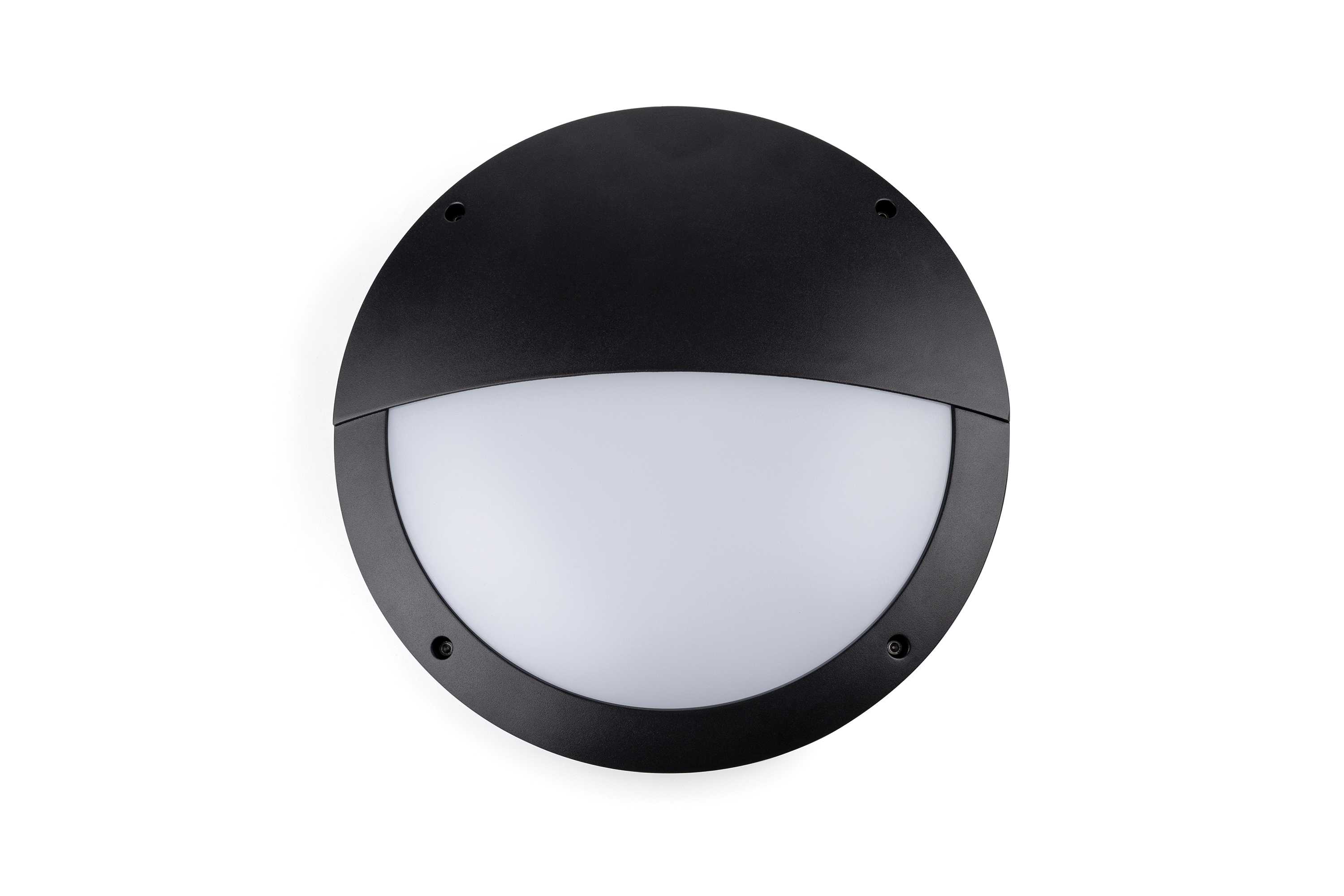

GUARDIAN DIE-CAST ALUMINUM BULKHEAD BLACK FINISH DIECAST ALUMINUM EYELID COVER & BASE , POLYCARBONATE DIFFUSER, WITH PLUG & PLAY GEAR TRAY POWER SELECTABLE 11/13/15/18W, 1012lm -1783lm, CRI 80 , BEAM ANGLE 120, 220-240V/50-60Hz CCT SELECTABLE 3000K/4000K/6500K IP66 IK10 DIAMETER Φ360*92mm INTEGRAL
Part Number:
ILBHD003
Durable and dependable. Define outdoor areas with our die-cast aluminium bulkheads. These light fixtures provide a subtle elegance that complements any exterior and handles all types of weather.
- Product Feature 1:
- IP65, IK10, vandal resistant bulkhead for harsh environments
- Product Feature 2:
- Black eyelid version die-cast aluminium housing and white polycarbonate diffuser
- Product Feature 3:
- Lumen output up to 1783lm
- Product Feature 4:
- CRI 80, beam angle 120°, CCT switchable 3000K/4000K/6500K
- Product Feature 5:
- Power switchable 11/13/15/18W and plug-and-play LED gear tray
- Product Feature 6:
- MW sensor, daylight sensor and 3Hrs emergency kit options
- Availability:
-
0
More stock due in on 20/04/2026
Suggested products
Details
| Barcode | 5056884603009 |
|---|---|
| Quick Order Code | 033658 |
| Category | Luminaires |
| Range Name | Guardian |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Black |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Features | Standard |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | With modular accessory |
|---|---|
| Emergency Category | Bulkheads |
| Product Depth (mm) | 92 |
| Product Weight (g) | 25 |
| Diameter (mm) | 360 |
| Material | Polycarbonate |
| Overall diameter (mm) | 360 |
| Construction | Polycarbonate |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Wiring / Mounting Options | Rear and side / BESA BOX |
Light Data
| Luminous Flux in Lumens (lm) | 1012 to 1783 |
|---|---|
| Luminous efficacy (lm/W) | Up to 99 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 6000 (CCT Switchable) |
| Colour Temperature Name | Warm, Cool White, Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 70000 |
| Switching Cycles | 50000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 11 / 13 / 15 / 18 (Power Switchable) |
|---|---|
| Power Consumption (W) | 11 / 13 / 15 / 18 (Power Switchable) |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5056884603009 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 2550 |
| Package Length (mm) | 364 |
| Package Width (mm) | 96 |
| Package Depth (mm) | 364 |
| Outer Carton Barcode | 05056884603016 |
| Qty per Outer Carton | 6 |
| Outer Carton Length (mm) | 750 |
| Outer Carton Width (mm) | 325 |
| Outer Carton Depth (mm) | 385 |
Safety Guide
ILBHD003_11W_3000K
