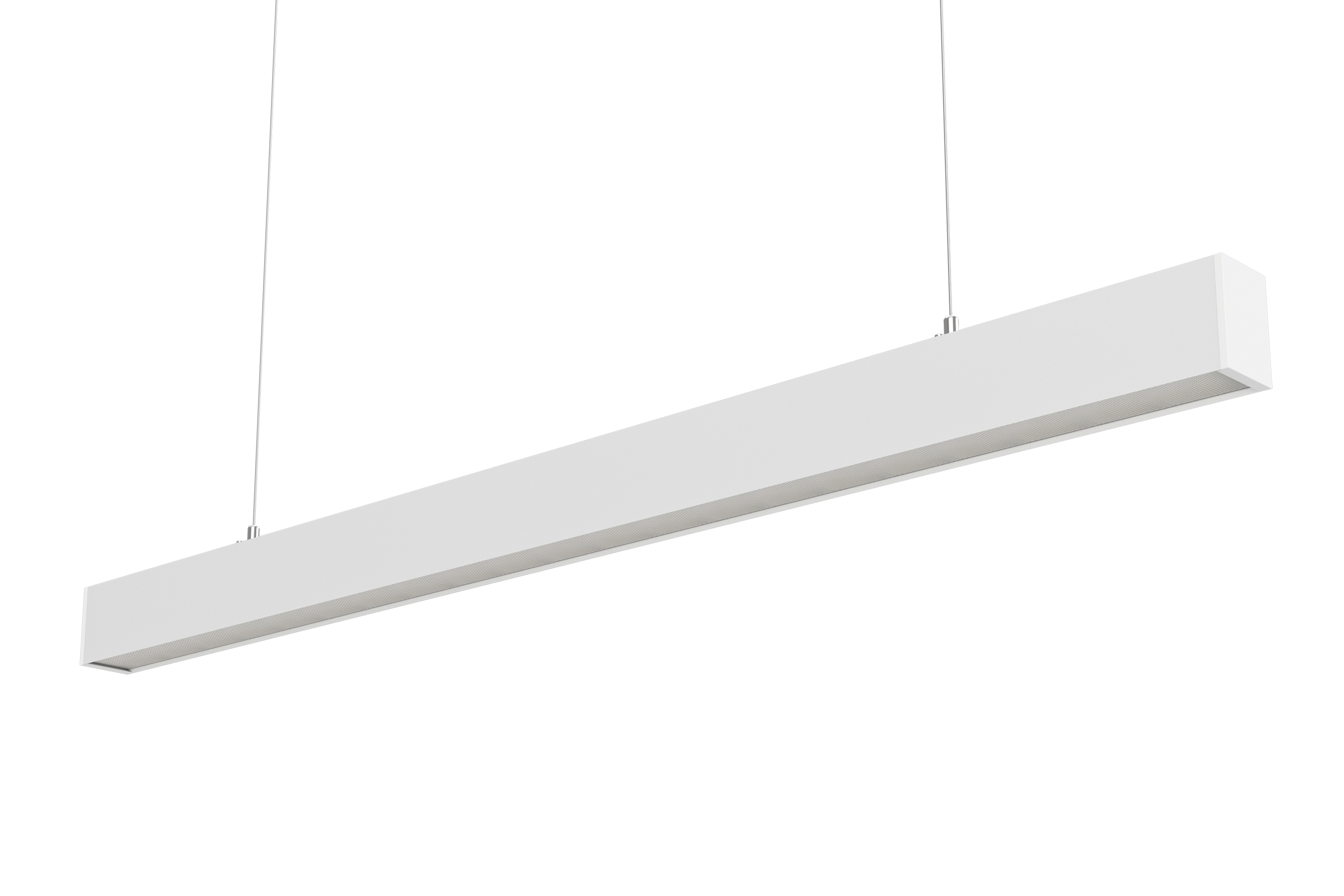

LINEALUX PRO (1410MMX 50MM X 70MM) 5070 LINKABLE LINEAR 4000K 66W 6900LM 105LM/W DALI DIMMABLE PC OPAL DIFFUSER ALUMINUM HOUSING WHITE FINISH 3HR EMERGENCY MANUAL TEST WITH SUSPENSION KITS AND CABLE GROMMETS
Part Number:
ILLLOPW5035
- Product Feature 1:
- Seamlessly linkable linear lighting system for commercial lighting applications
- Product Feature 2:
- Highly customisable: L, T, X, Y and V corners, interchangeable optics, optional uplight module, multiple mounting options
- Product Feature 3:
- 1410mm emergency modules with continuous runs up to 60m on a single feed
- Product Feature 4:
- Fast to install and maintain
- Product Feature 5:
- Standard and custom configurations available
- Product Feature 6:
- 5 Year Warranty
- Availability:
-
53
Suggested products
Details
| Barcode | 5055788325390 |
|---|---|
| Quick Order Code | 816738 |
| Product Type | Commercial Linear |
| Category | Luminaires |
| Range Name | Linealux Pro |
| Finish | White |
| Features | Linkable |
| Market Segment | Commercial indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 5 |
Physical Data
| Bulb or Luminaire Shape | Linear |
|---|---|
| Product Length (mm) | 1410 |
| Product Width (mm) | 50 |
| Product Depth (mm) | 70 |
| Product Weight (g) | 1920 |
| Material | Aluminium |
| Luminaire Fixing | Surface or Suspended |
| Emergency Option | Integrated |
| Linkable | Yes |
| Optic | Opal diffuser |
| Mounting Type | Rear Cable & Side conduit Entry |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 6000 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000 - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 95 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Switching Cycles | 100000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 60 |
|---|---|
| Power Consumption (W) | 60 |
| Power Factor | 0.9 |
| Input Voltage (V) | 220-240 |
| Dimming | DALI |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| IP Rating (Ingress Protection) | IP20 |
|---|---|
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
| EN | EN60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | F |
Packaging
| Single box qty | 1 |
|---|---|
| Barcode | 5055788325390 |
| Package Weight (g) | 3000 |
| Package Length (mm) | 1570 |
| Package Width (mm) | 78 |
| Package Depth (mm) | 57 |
| Outer Carton Barcode | 05055788325499 |
| Qty per Outer Carton | 9 |
| Outer Carton Length (mm) | 1590 |
| Outer Carton Width (mm) | 260 |
| Outer Carton Depth (mm) | 255 |
Safety Guide
