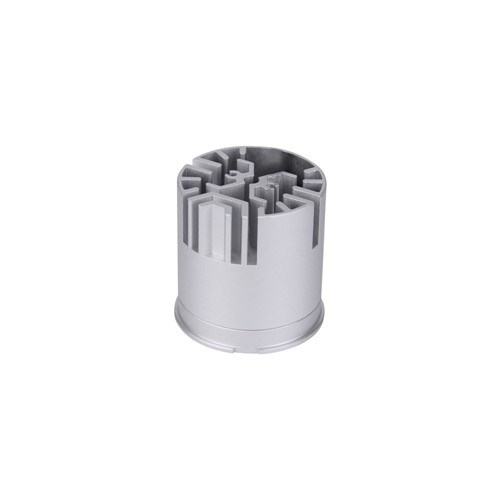

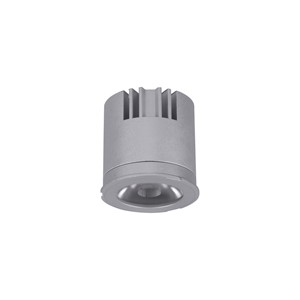

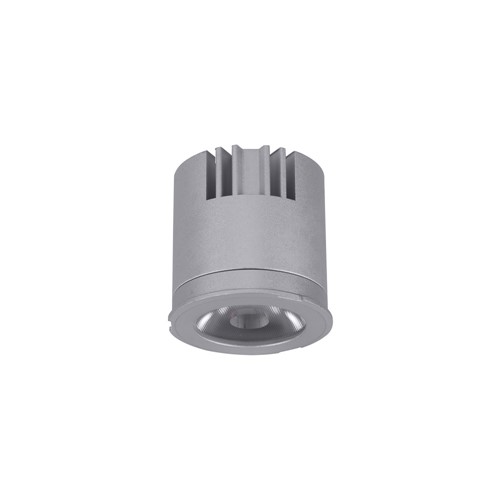

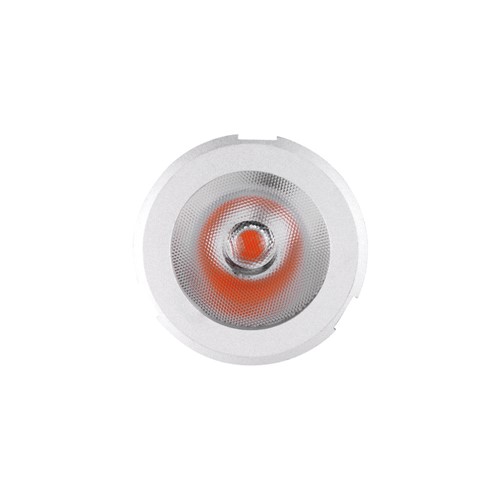

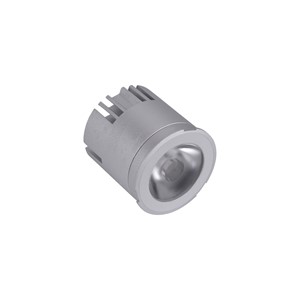

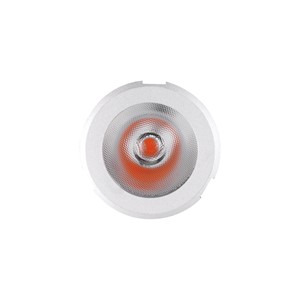

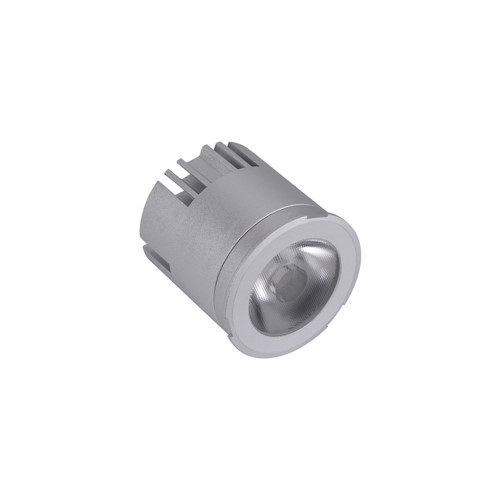

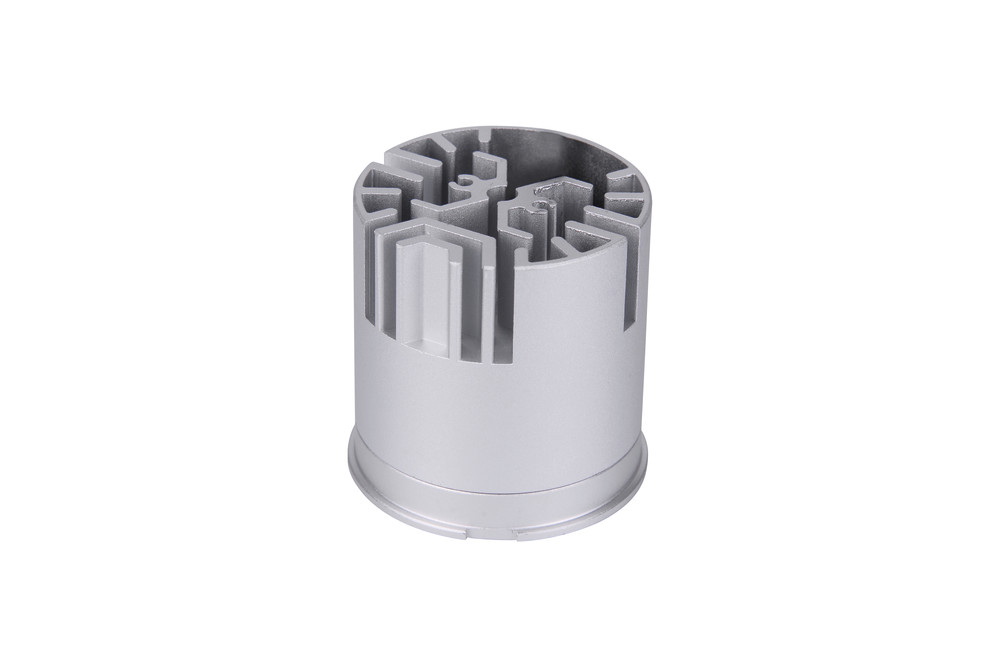

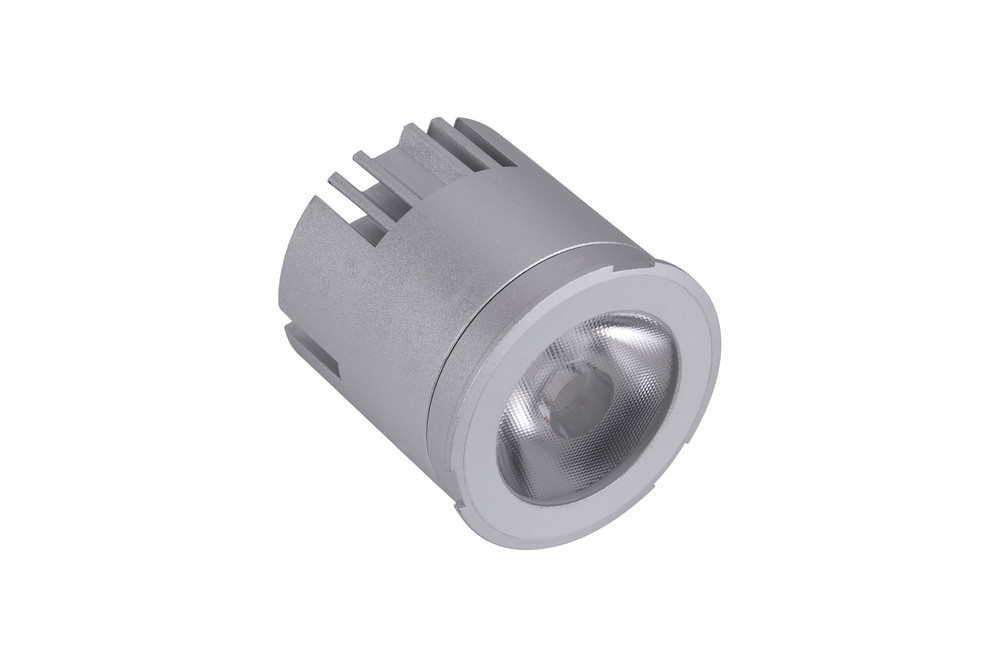

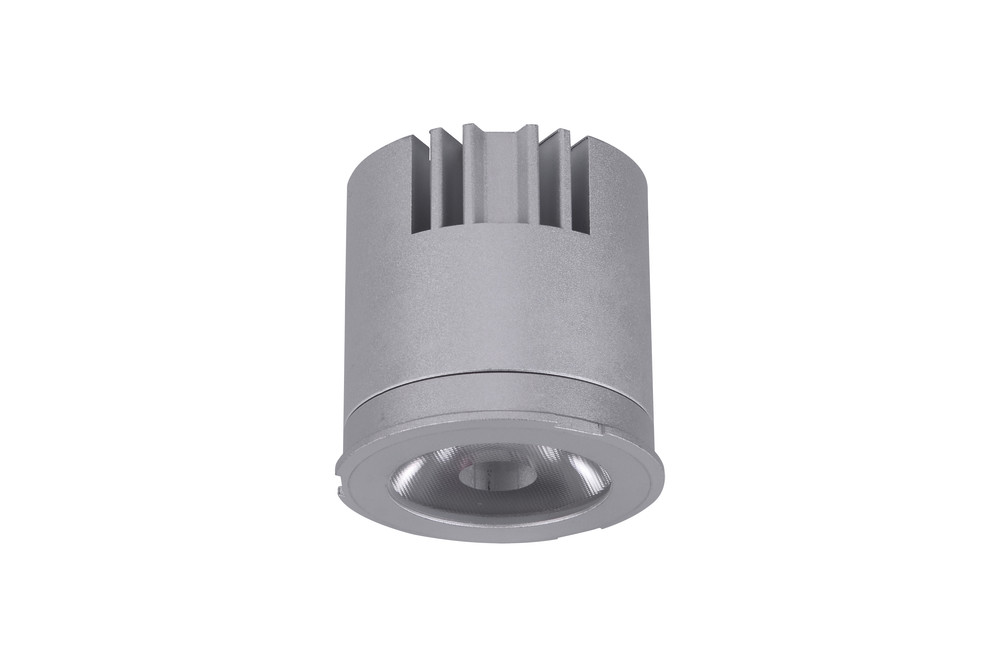

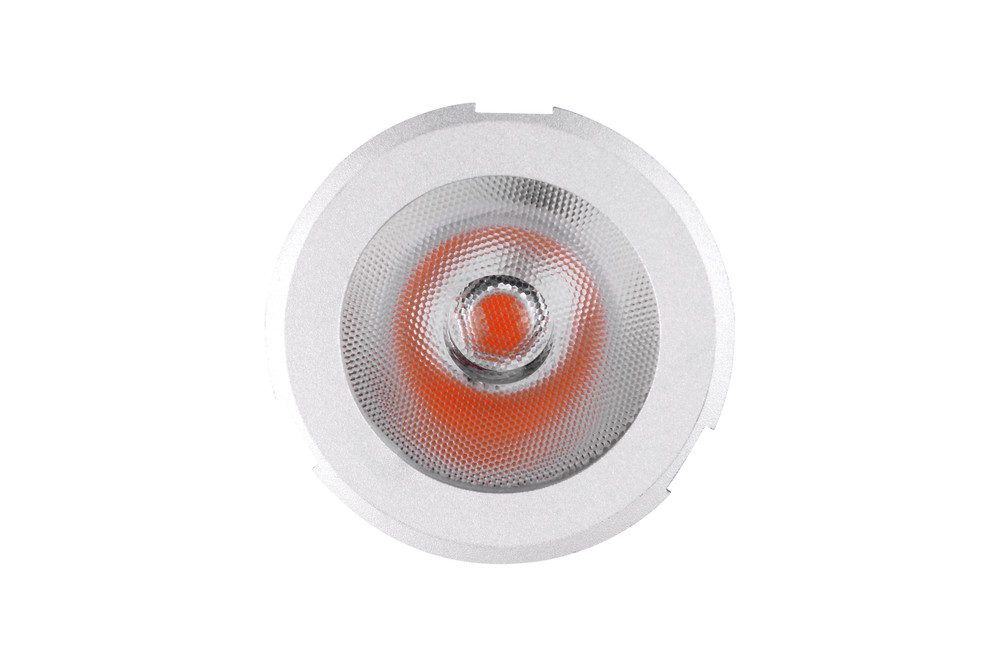

LED LIGHT MODULE 1020LM 11W 92LM/W 4000K CRI90 36 BEAM IP54 36VDC 250MA WITHOUT DRIVER
Part Number:
ILMDE006
Integral’s AccentPlus light modules are the perfect solution for GU10/MR16 compatible downlight projects that require punchy light output or specific dimming integration such as Dali, 0-10V, TRIAC or push dim (see suggested products below for driver options).
The modules are CRI90 giving real colour and have a range of beam angle accessories providing solutions for specific lighting designs.
- Product Feature 1:
- Cool Light
- Product Feature 2:
- Dimmable with compatible driver
- Product Feature 3:
- 1020 lumens
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788268390 |
|---|---|
| Quick Order Code | 825557 |
| Category | Downlights |
| Range Name | AccentPlus |
| Market Segment | Accent lighting |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 50 |
|---|---|
| Product Depth (mm) | 50 |
| Product Width (mm) | 50 |
| Product Weight (g) | 230 |
| Material | Aluminium |
| Construction | Aluminium |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILMDE006_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1020 |
| Luminous efficacy (lm/W) | 92 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | Single |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption (W) | 11 |
|---|---|
| Voltage (V) | 36 |
| Amperage (mA) | 250 |
| Dimming | Dimmable with dimmable drivers and compatible dimmers |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788268390 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 240 |
| Package Length (mm) | 88 |
| Package Width (mm) | 63 |
| Package Depth (mm) | 118 |
| Outer Carton Barcode | 05055788268628 |
| Qty per Outer Carton | 100 |
| Outer Carton Length (mm) | 360 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 290 |
Safety Guide
ILMDE006
