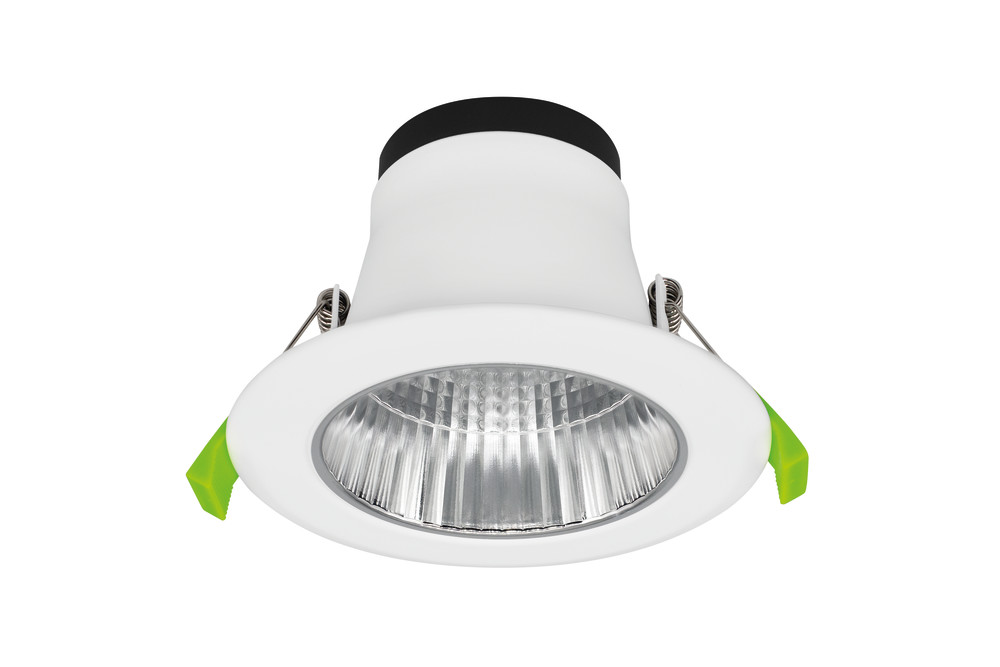

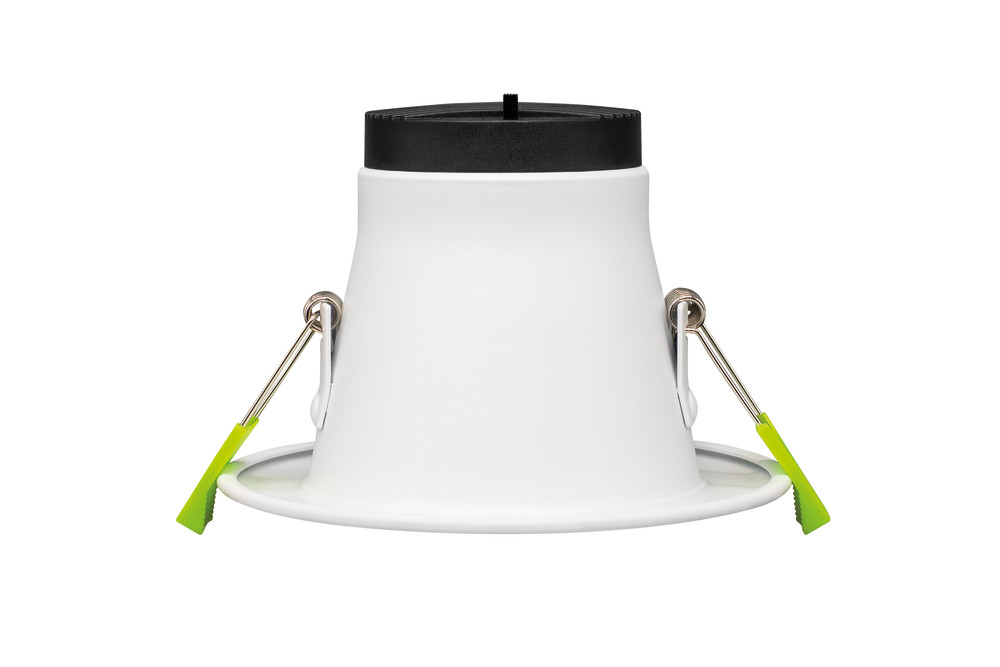

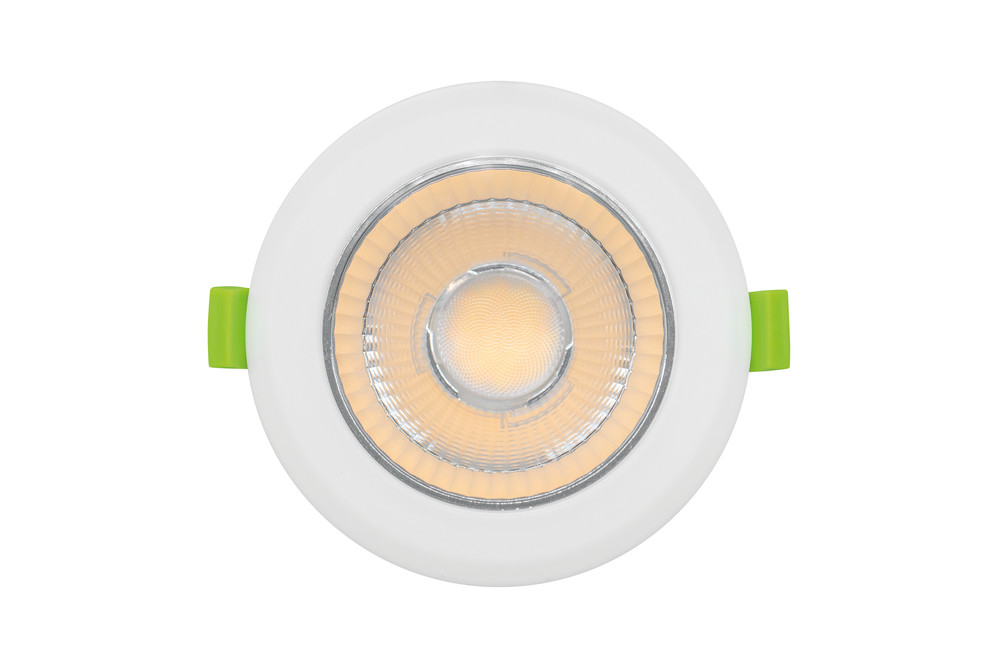

RECESS PLUS 95MM CUTOUT 12W 1440LM 120LM/W CCT ADJUSTABLE 3000/4000K 55 BEAM IP54 36VDC 300MA WITHOUT DRIVER INTEGRAL
Part Number:
ILDL120RP002
Recess Plus is a range of high-performance LED downlights with outstanding efficiency, switchable CCT (3000K/4000K) and extra-long lifetime, ideal for replacement of traditional recessed CFL downlights. With an IP54 rating out of the box they are perfect for a wide range of applications without the need to add accessories. The deep-recessed facetted reflector design ensures a low-glare (<19 in a lighting scheme).
This range of well-finished and lightweight downlights are suitable for placement in Zones 1 and 2 of bathrooms/washrooms, outdoor sheltered areas as well as common indoor spaces. The included easy to use push-fit connector provides for a quick and safe installation. Compatible LED drivers available to allow for DALI, 1-10V, Triac, Switch Dim or Wireless control to suit the project.
This range of well-finished and lightweight downlights are suitable for placement in Zones 1 and 2 of bathrooms/washrooms, outdoor sheltered areas as well as common indoor spaces. The included easy to use push-fit connector provides for a quick and safe installation. Compatible LED drivers available to allow for DALI, 1-10V, Triac, Switch Dim or Wireless control to suit the project.
- Product Feature 1:
- 95mm cut out
- Product Feature 2:
- 1440lm
- Product Feature 3:
- 55 Degrees Beam
- Product Feature 4:
- Highly efficient - 120lm/W
- Product Feature 5:
- CCT Switchable 3000K/4000K
- Product Feature 6:
- IP54
- Product Feature 7:
- Driver Not included
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788260950 |
|---|---|
| Quick Order Code | 876275 |
| Category | Downlights |
| Range Name | Recess Plus |
| Fixed/Tiltable | Fixed |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 5 |
Physical Data
| Bulb or Luminaire Shape | Round |
|---|---|
| Cut Out Diameter (mm) | 95 |
| Diameter (mm) | 120 |
| Overall diameter (mm) | 120 |
| Product Depth (mm) | 80 |
| Product Weight (g) | 270 |
| Material | Aluminium, Steel, PC Diffuser |
| Construction | Pressed Steel |
| Luminaire Fixing | Wall/Ceiling mounted |
| Emergency Option | Optional Conversion Kit |
| Optic | Facetted Aluminium |
| Spot Type | SMD with "COB like effect" |
Light Data
| Luminous Flux in Lumens (lm) | 1440 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 (CCT Switchable) |
| Colour Temperature | 3000/4000 - Warm White / Cool White |
| Colour Temperature Name | Warm White, Cool White |
| Beam Angle | 55 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
| Unified Glare Rating (UGR) | < 19 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 12 |
|---|---|
| Power Consumption (W) | 12 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 300 |
| Driver Included | No |
| Electric Current | DC |
Environmental
| IP Rating (Back/Recessed side) | IP20 |
|---|---|
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | G |
| EU Luminaire | L |
Packaging
| Single box qty | 1 |
|---|---|
| Barcode | 5055788260950 |
| Package Weight (g) | 300 |
| Package Length (mm) | 95 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 75 |
| Outer Carton Barcode | 5055788260950 |
| Qty per Outer Carton | 24 |
| Outer Carton Length (mm) | 380 |
| Outer Carton Width (mm) | 260 |
| Outer Carton Depth (mm) | 400 |
