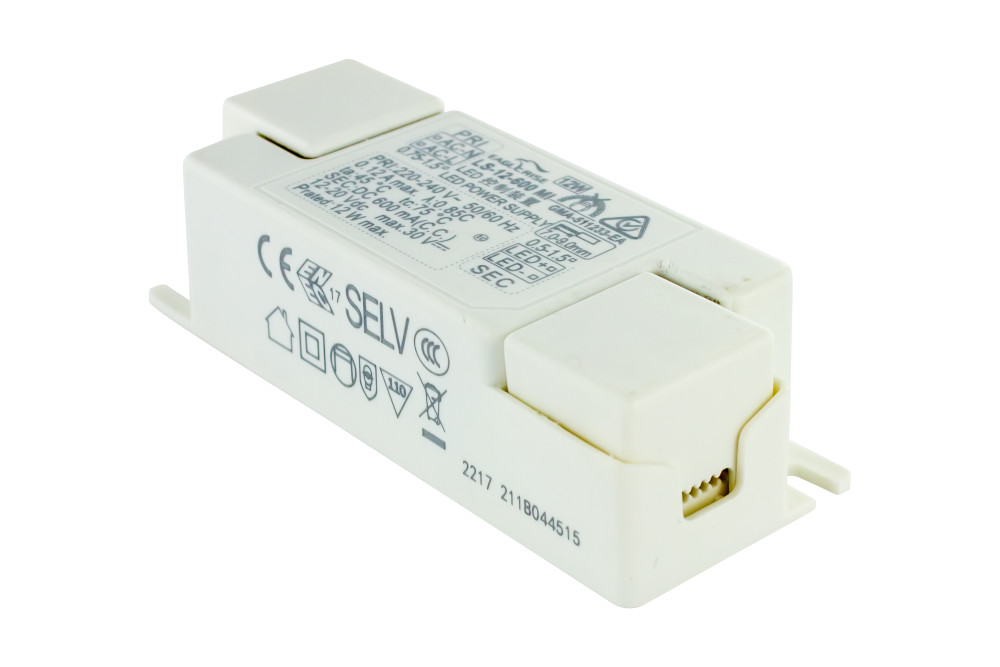

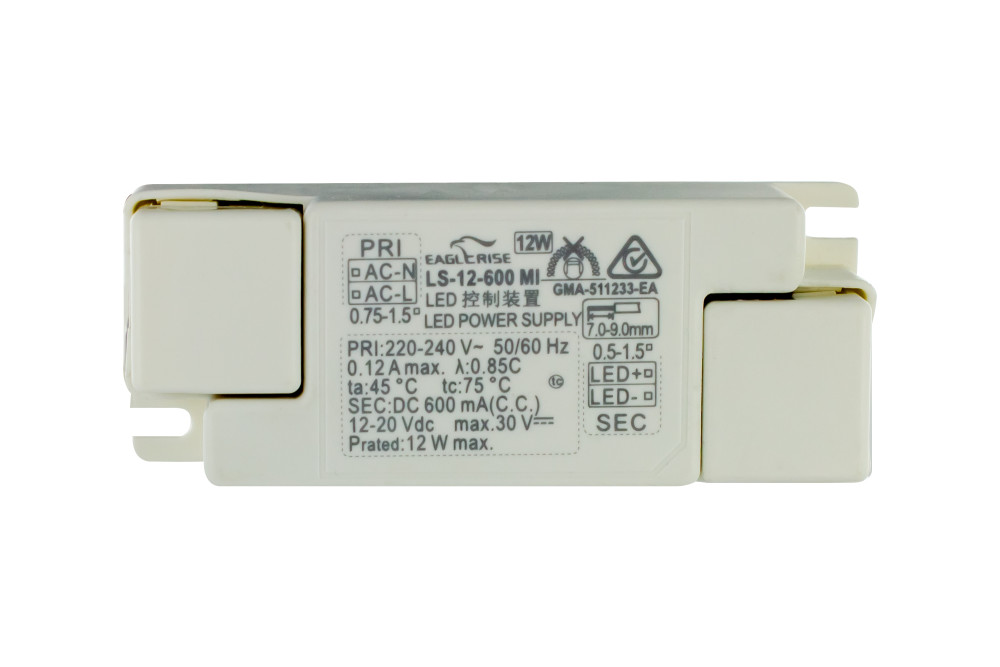

CONSTANT CURRENT DRIVER MAX. 12W 600MA IP20 NON-DIMMABLE 12-20V OUTPUT INTEGRAL.
Part Number:
ILDRCCA081
Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output: 12W max.
- Product Feature 3:
- 600mA
- Product Feature 4:
- Constant current
- Product Feature 5:
- Class II
- Product Feature 6:
- Output Voltage: 12-20VDC
- Availability:
-
12
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788283416 |
|---|---|
| Quick Order Code | 145863 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Current |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 100 |
|---|---|
| Product Depth (mm) | 25 |
| Product Width (mm) | 36 |
| Product Weight (g) | 52 |
| Material | Plastic Shell |
| Placement / Application | Indoor LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 12 |
|---|---|
| Power Consumption (W) | 12 |
| Power Factor | 0.85 |
| Voltage (V) | 12-20 |
| Voltage Range (v) | 220-240 |
| Input Current (A) | 0.05 |
| Input Voltage (V) | 220-240 |
| Output Current (mA) | 600 |
| Output Voltage (V) | 12-20 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN55015; EN61000-3-2 Class C; EN61000-3-3;EN 61547; EN 61000-4-2; EN 61000-4-5 EN 61347-1; EN61347-2-13; EN62384 |
| LVD Certified | Yes |
Environmental
| EN | EN55015; EN61000-3-2 Class C; EN61000-3-3;EN 61547; EN 61000-4-2; EN 61000-4-5 EN 61347-1; EN61347-2-13; EN62384 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788283416 |
|---|---|
| Package Weight (g) | 60 |
| Package Length (mm) | 102 |
| Package Width (mm) | 40 |
| Package Depth (mm) | 27 |
