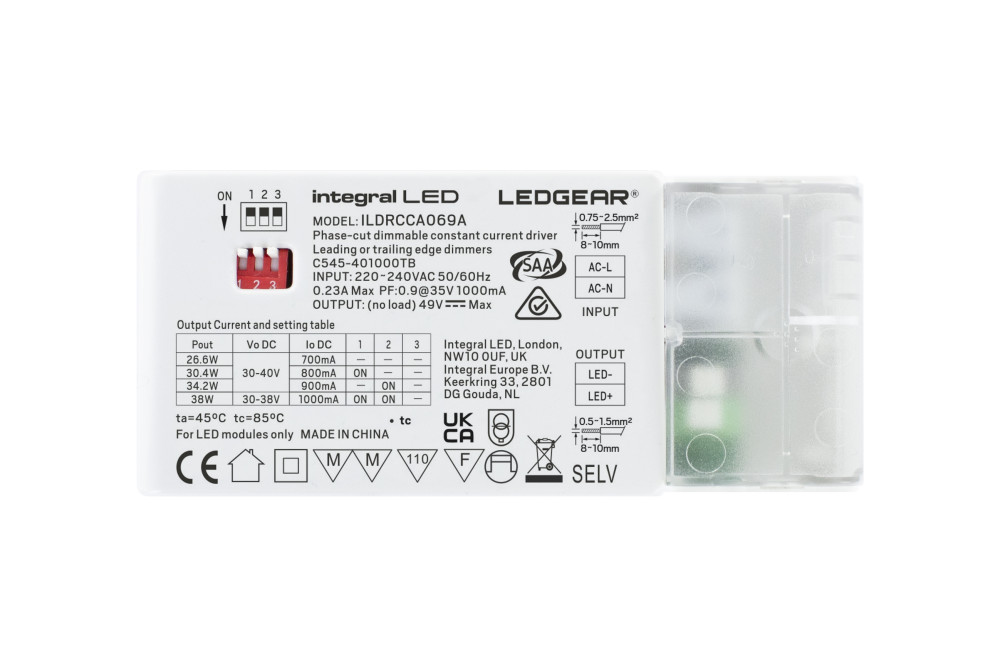

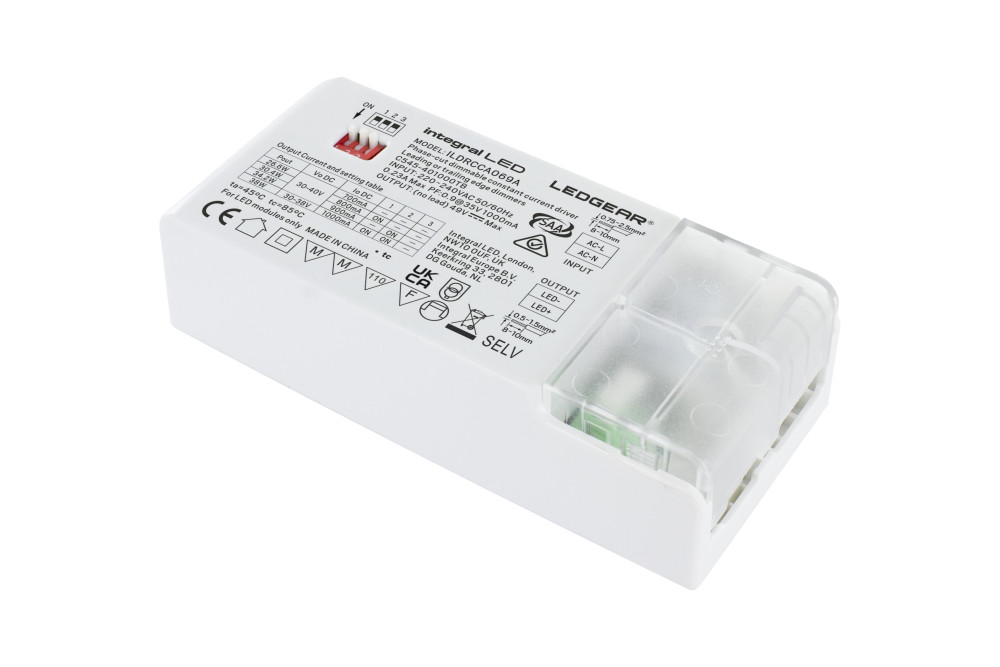

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 28-38W 700-1000MA IP20 TRIAC DIMMABLE 30-40V OUTPUT INTEGRAL

Part Number:

ILDRCCA069A

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output Power range 26.6-38W
Product Feature 3:
Adjustable output current range 700-1000mA
Product Feature 4:
Output voltage range 30-40V
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Quick Order Code 517202
Barcode 5055788252979
Category Drivers
Range Name TRIAC
Product Type Constant Current
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 3
Product Length (mm) 115
Product Depth (mm) 30
Product Width (mm) 52
Product Weight (g) 240
Material Polycarbonate
Placement / Application Indoor, LED Lighting
Frequency Range (Hz) 50/60
Power Factor 0.95
Voltage (V) 30-40
Voltage Range (v) 220-240
Input Current (A) 0.23
Input Voltage (V) 220-240VAC
Output Current (mA) Adjustable
Output Voltage (V) 30-40
Dimming TRIAC
Protection Function Short Circuit Protection, Overload Protection, Overheat Protection
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 240
Package Length (mm) 160
Package Width (mm) 90
Package Depth (mm) 30
