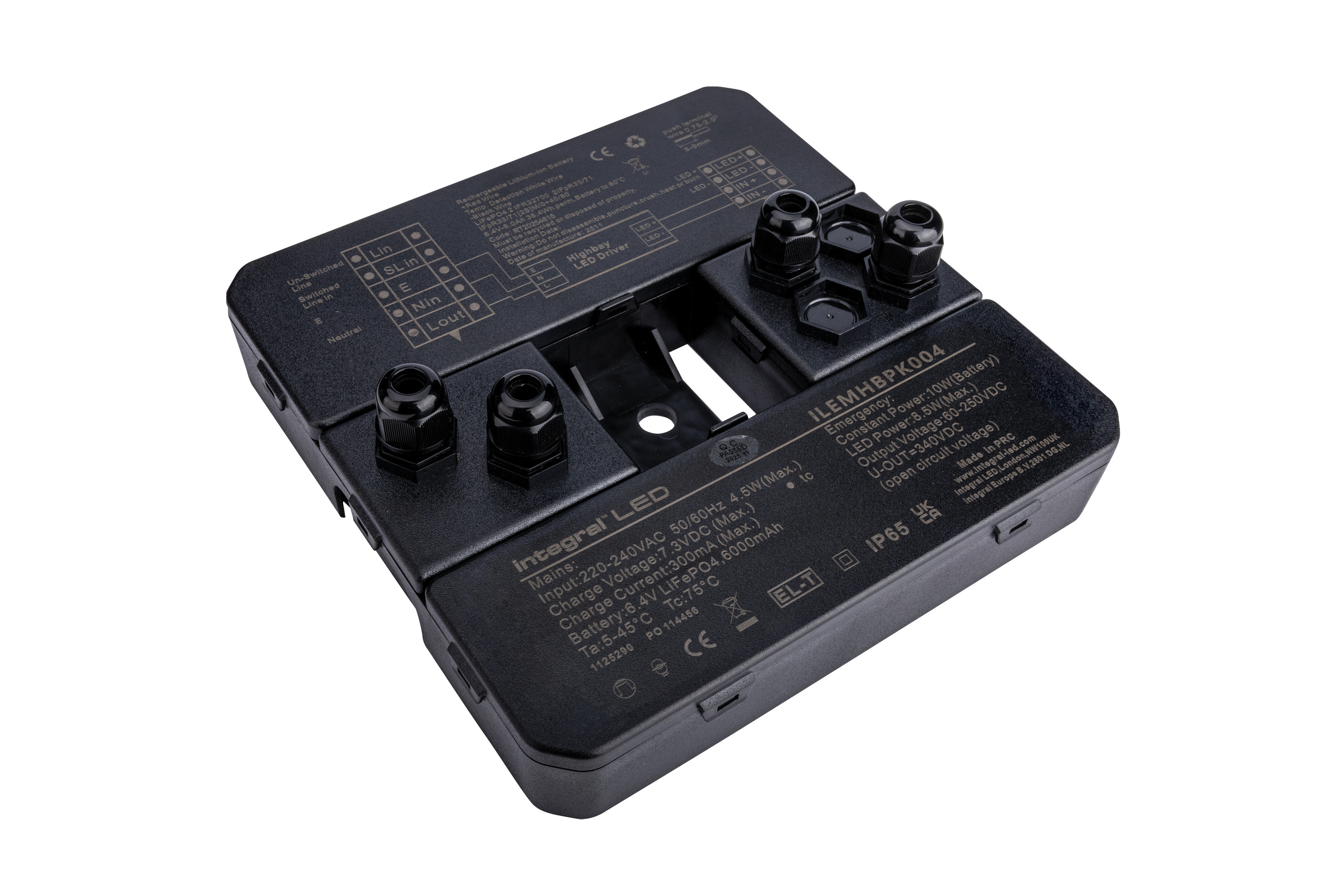

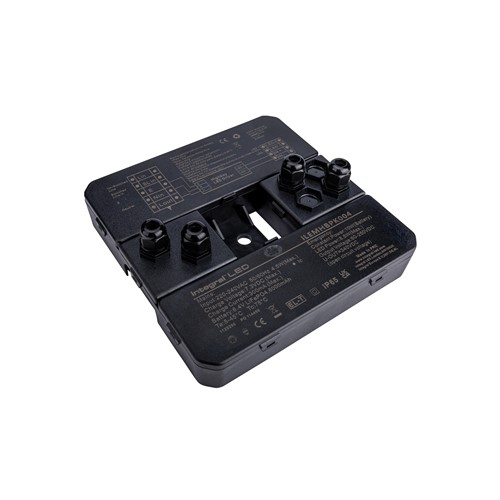

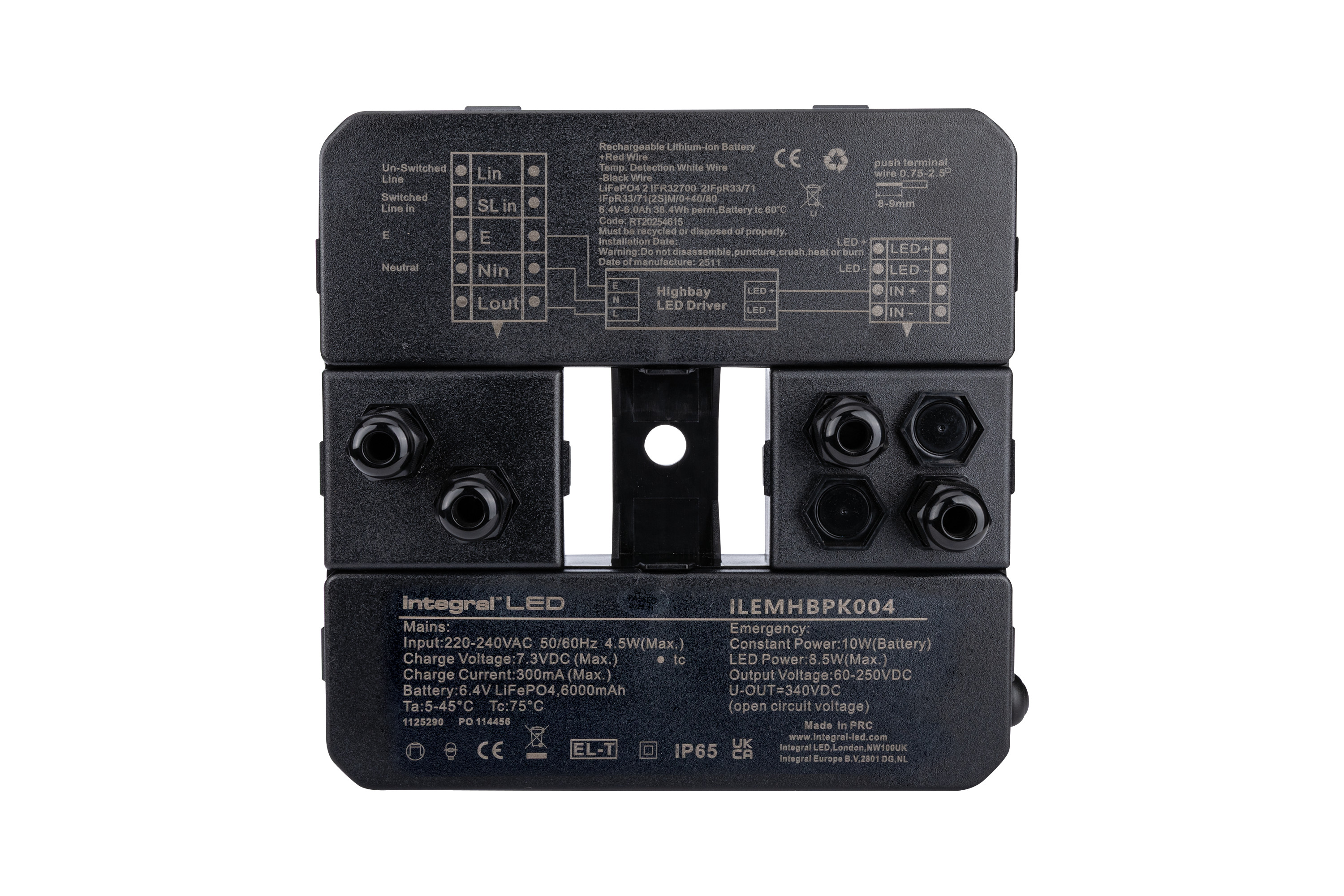

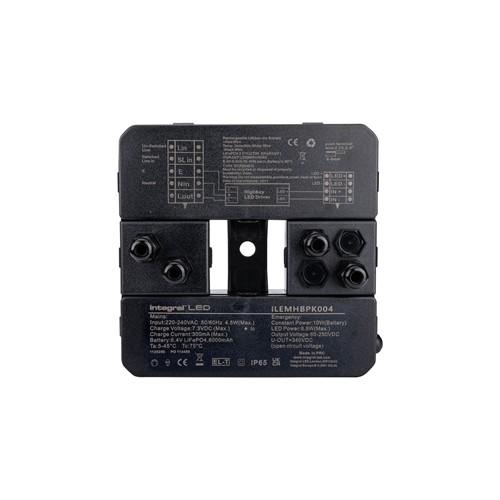

EMERGENCY CONVERSION PACK SUITABLE FOR 200W REMOTE LED DRIVER & DETACHABLE LED BOARD HIGHBAY 10W IP65 1200LM SELF TEST LIFEPO4 REPLACABLE BATTERY 5 YEAR WARRANTY INTEGRAL
Part Number:
ILEMHBPK004
This emergency conversion pack is suitable for Integral LED remote LED driver and detachable LED board Highbays up to 200W. It provides 3 hours of emergency illumination during a power cut and compatible with dimmable and non-dimmable constant current drivers. Simple installation and features include an eco-friendly, long-life LiFeP04 high-capacity battery, short-circuit protection and optional self-test button.
- Product Feature 1:
- IP65 emergency pack suitable for highbays up to 200W
- Product Feature 2:
- Suitable for constant power output emergency power supply
- Product Feature 3:
- Compatible with dimmable and non-dimmable constant current LED drivers
- Product Feature 4:
- Self-test for LED modules with forward DC voltage
- Product Feature 5:
- Automatic shutdown of output if LED load is out of range
- Product Feature 6:
- Electronic charge system and short-circuit-proof battery connection
- Product Feature 7:
- Deep discharge protection and polarity reversal protection for battery
- Product Feature 8:
- 5-year warranty and long life LiFePO4 battery with high capacity
- Availability:
-
0
More stock due in on 29/01/2026
Suggested products
Details
| Barcode | 5056884600602 |
|---|---|
| Quick Order Code | 020406 |
| Category | Emergency |
| Range Name | Emergency Conversion Pack |
| Product Type | Emergency Conversion Pack |
| Product Body Finish | Black |
| Market Segment | Commercial indoor |
| Finish | Black |
| Warranty (Years) | 5 |
Physical Data
| Emergency Category | Emergency Pack |
|---|---|
| Product Length (mm) | 204.2 |
| Product Depth (mm) | 37 |
| Product Width (mm) | 204.2 |
| Product Weight (g) | 943 |
| Material | Polycarbonate |
| Construction | Polycarbonate |
Light Data
| Luminous Flux in Lumens (lm) | 1200 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
Electrical Data
| Power Consumption (W) | 10 |
|---|---|
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Lumens (lm) | 1200 |
| EN | EN-60608 |
| LVD Certified | Yes |
Environmental
| EN | EN-60608 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK07 |
| IP Rating (Back/Recessed side) | IP65 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5056884600602 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 959 |
| Package Length (mm) | 210 |
| Package Width (mm) | 210 |
| Package Depth (mm) | 75 |
| Outer Carton Barcode | 05056884600619 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 435 |
| Outer Carton Width (mm) | 225 |
| Outer Carton Depth (mm) | 400 |
| Qty per euro pallet | 1000 |
