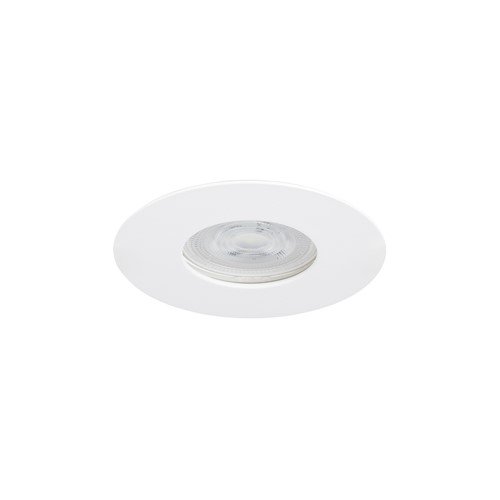

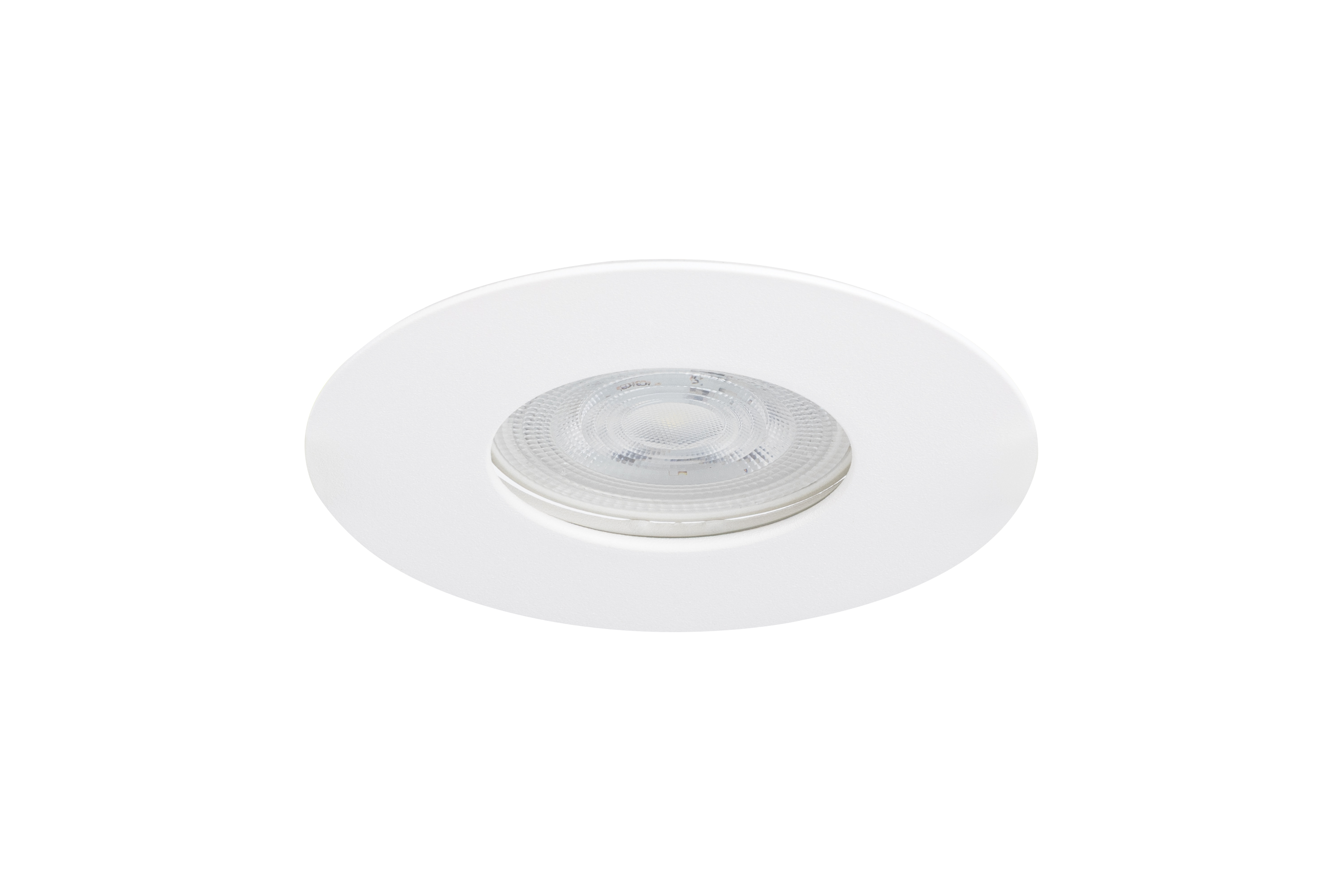

EVOFIRE MIDI 92 FIRE RATED DOWNLIGHT 70-85MM CUTOUT 92MM BEZEL IP65 WHITE ROUND +GU10 HOLDER INTEGRAL
Part Number:
ILDLFR70D051
Introducing Integral’s new Evofire Midi 92 fire-rated downlight in white—for compact construction and seamless installation that doesn’t compromise on safety or affordability.
With an ultra-thin 1mm ‘blend in’ bezel, this midi downlight is more discreet than ever and benefits from IP65 protection, making it the perfect choice for subtle lighting in bedrooms, kitchens, bathrooms, and other living spaces. The fire-resistant glass and steel body forms a barrier below the ceiling for increased safety, while the push fit loop in/out connector makes installation a breeze. Available with seven-year warranty for your peace of mind.
- Product Feature 1:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 2:
- Developed in the UK - Patent GB2557957
- Product Feature 3:
- Fire Rating 30/60/90 minutes
- Product Feature 4:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 5:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 6:
- Supplied with GU10 holders
- Product Feature 7:
- Optional clip-in insulation guard sold separately
- Availability:
-
0
More stock due in on 05/12/2025
Suggested products
Details
| Barcode | 5055788324508 |
|---|---|
| Quick Order Code | 136857 |
| Category | Downlights |
| Range Name | Evofire Midi 92 |
| Product Type | Fire Rated |
| Product Body Finish | White |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Without Insulation Guard |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 7 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 38.5 |
| Product Weight (g) | 0.09 |
| Diameter (mm) | 92 |
| Material | Steel, Glass |
| Overall diameter (mm) | 92 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 70 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | No |
|---|---|
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788324508 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 0.1 |
| Package Length (mm) | 105 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 65 |
| Outer Carton Barcode | 05055788324584 |
| Qty per Outer Carton | 100 |
| Outer Carton Length (mm) | 545 |
| Outer Carton Width (mm) | 440 |
| Outer Carton Depth (mm) | 345 |
| Qty per euro pallet | 2000 |
