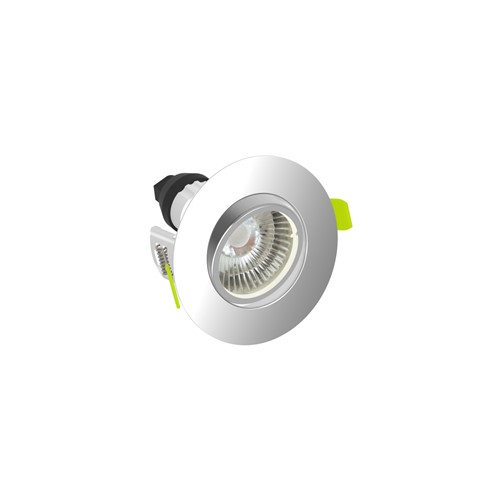

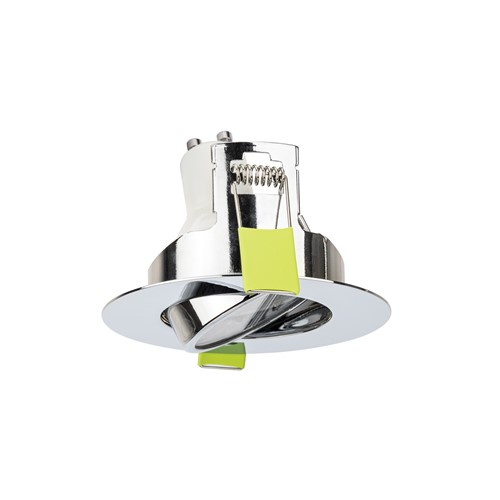

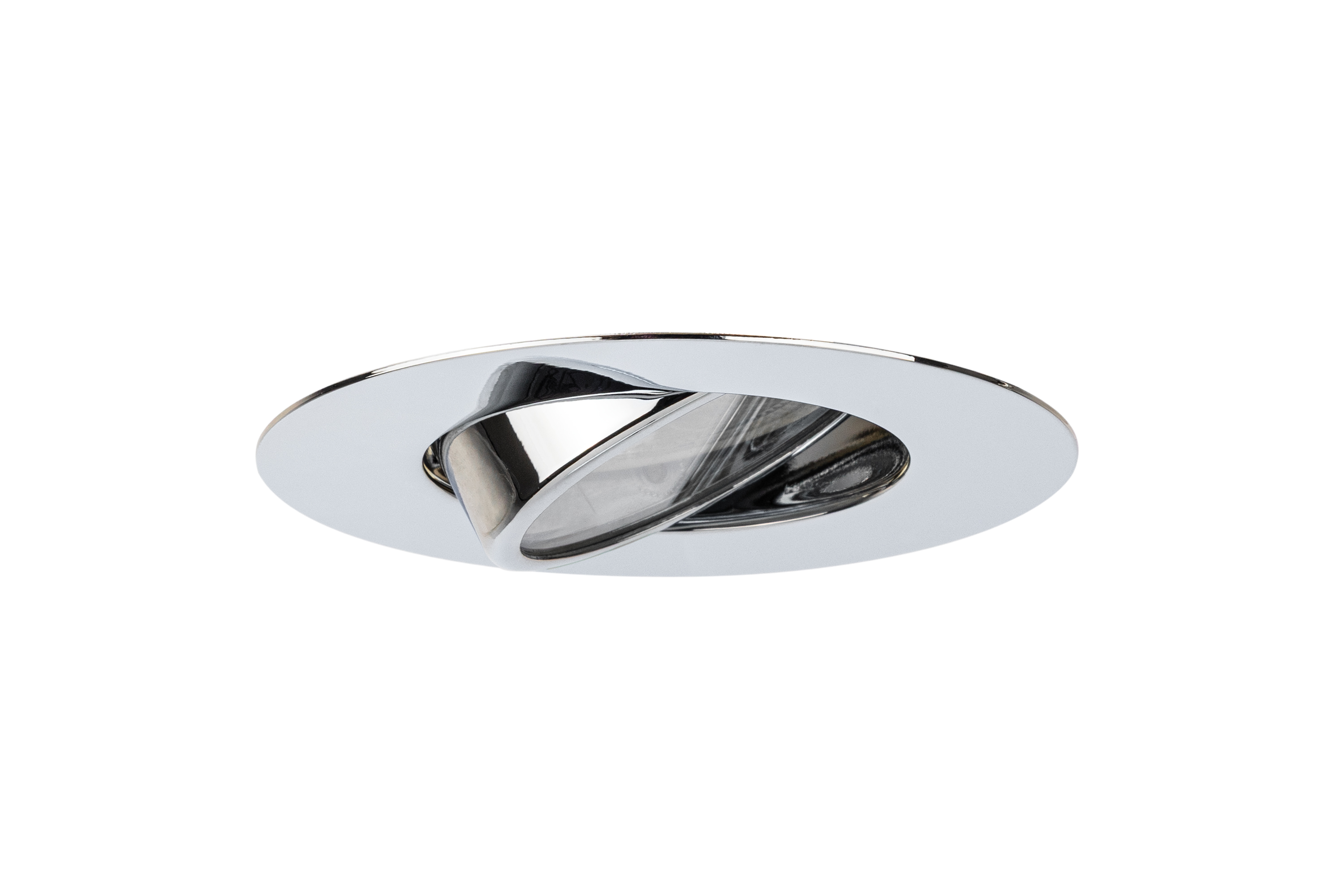

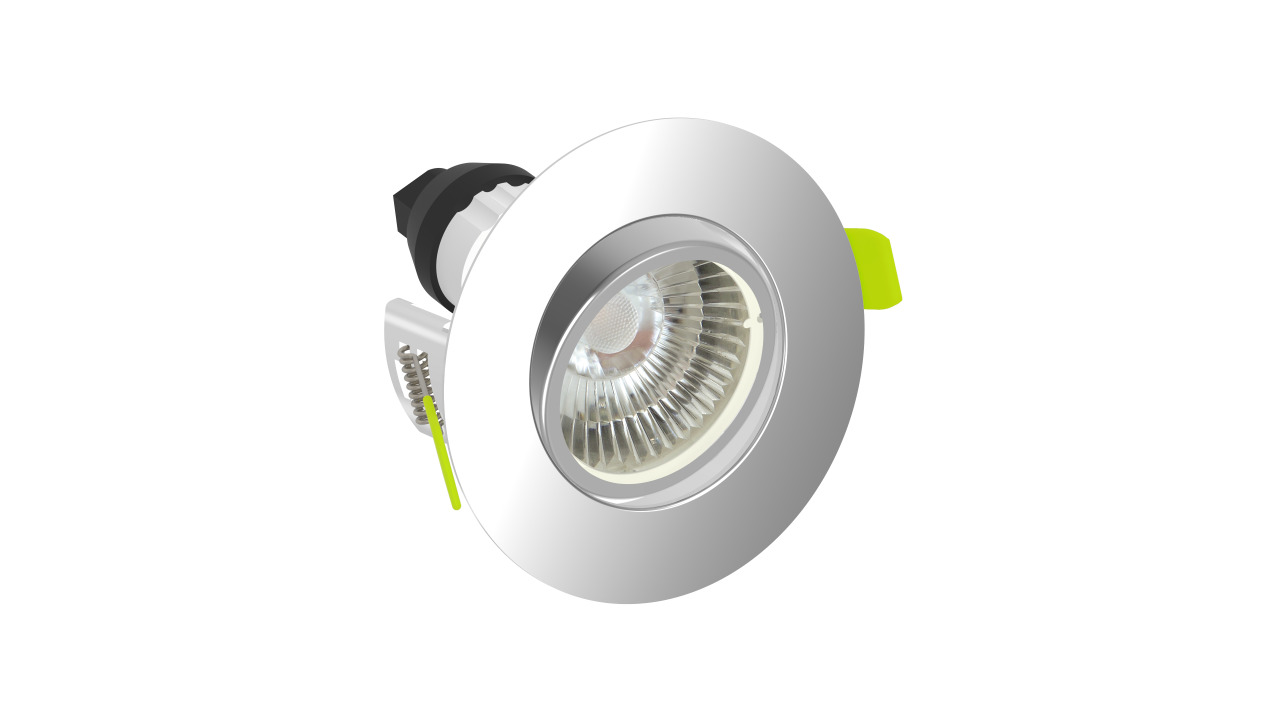

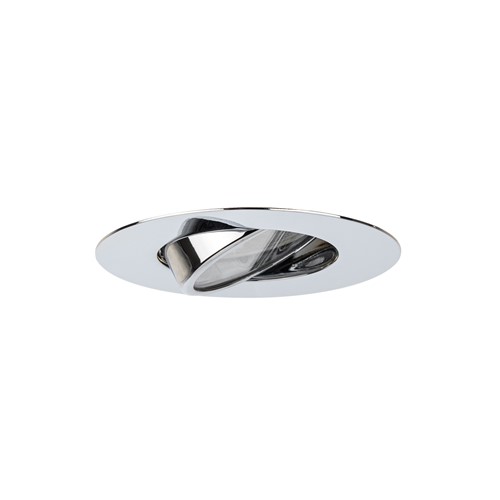

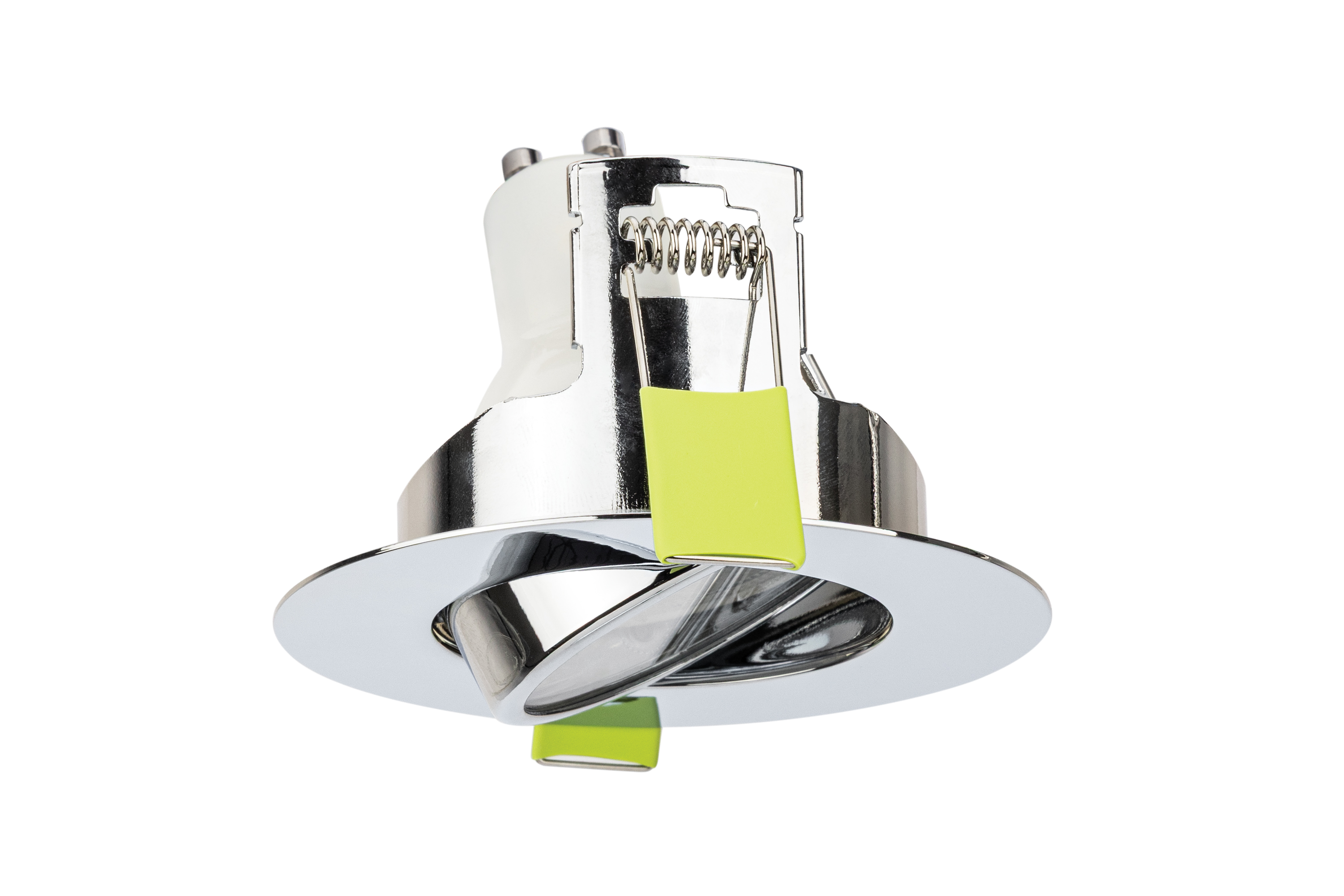

EVOFIRE MIDI 92 TILTABLE FIRE RATED DOWNLIGHT IP20 70-85MM CUTOUT 92MM BEZEL POLISHED CHROME ROUND +GU10 HOLDER INTEGRAL
Part Number:
ILDLFR70K053
Introducing Integral’s new Evofire Midi 92 fire-rated tiltable downlight in polished chrome—for compact construction and seamless installation that doesn’t compromise on safety or affordability.
With an ultra-thin 1mm ‘blend in’ bezel, this midi downlight is more discreet than ever and benefits from IP20 protection, making it the perfect choice for subtle lighting in dry indoor spaces like bedrooms and lounges. The fire-resistant glass and steel body forms a barrier below the ceiling for increased safety, while the push fit loop in/out connector makes installation a breeze. Direct light in your preferred direction with tiltable mechanism. Available with seven-year warranty for your peace of mind.
- Product Feature 1:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 2:
- Developed in the UK - Patent GB2557957
- Product Feature 3:
- Fire Rating 30/60/90 minutes
- Product Feature 4:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 5:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 6:
- Supplied with GU10 holders
- Product Feature 7:
- Optional clip-in insulation guard sold separately
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788324560 |
|---|---|
| Quick Order Code | 757067 |
| Product Type | Fire Rated |
| Category | Downlights |
| Range Name | Evofire Midi 92 |
| Fixed/Tiltable | Tiltable |
| Product Body Finish | Polished Chrome |
| Features | Without Insulation Guard |
| Market Segment | Commercial indoor, Residential indoor |
| Placement / Application | Lighting artwork & decor |
| Warranty (Years) | 7 |
Physical Data
| Bulb or Luminaire Shape | Round |
|---|---|
| Cut Out Diameter (mm) | 70-85 |
| Diameter (mm) | 92 |
| Overall diameter (mm) | 92 |
| Product Depth (mm) | 38.5 |
| Product Weight (g) | 180 |
| Material | Steel, Glass |
| Construction | Pressed Steel, Glass |
| Insulation Guard | No, Compatible with clip-in insulation guard |
| Luminaire Fixing | Recess mounted |
| Emergency Option | No |
Light Data
Electrical Data
Environmental
| Fire Rating (mins) | 30, 60, 90 for solid timber joist, 30, 60 for I-Joist, 30 for metal web joist |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
Packaging
| Single box qty | 1 |
|---|---|
| Barcode | 5055788324560 |
| Package Weight (g) | 0.21 |
| Package Length (mm) | 105 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 105 |
| Outer Carton Barcode | 05055788324645 |
| Qty per Outer Carton | 80 |
| Outer Carton Length (mm) | 440 |
| Outer Carton Width (mm) | 440 |
| Outer Carton Depth (mm) | 320 |
| Qty per euro pallet | 1920 |
