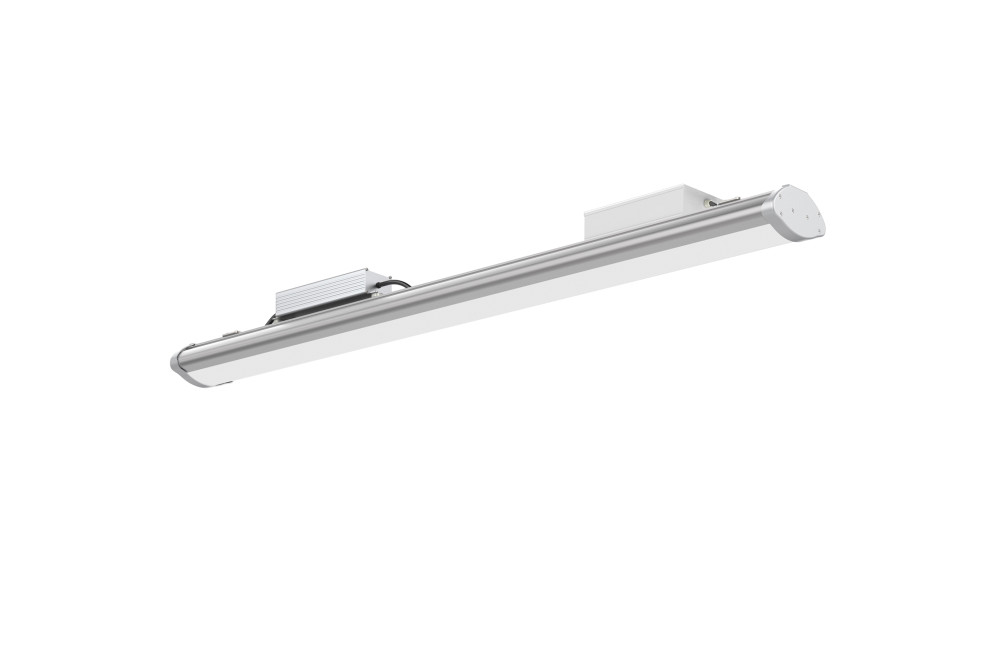

SLIMLINE LINEAR HIGH BAY IP65 23400LM 180W 4000K 130LM/W 120 BEAM DIMMABLE EMERGENCY INTEGRAL

Part Number:

ILHBL203E

Discreet and attractive, the Slimline Linear High Bay is a functional and aesthetic choice for large showrooms and retail premises as well as industrial environments. This High Bay offers 23,400 lumen output at a super-efficient 130lm/W, which will make huge savings to energy costs compared to legacy lighting technology. The IP65 rating makes it water, steam and dust resistant, ensuring that it is suitable for demanding industrial workplaces.

This Emergency model will provide 3 hours of light at 2,600lm in the event of a power cut.

Product Feature 1:
23400lm
Product Feature 2:
4000K
Product Feature 3:
130lm/W
Product Feature 4:
Class I
Product Feature 5:
5 Year Warranty
Product Feature 6:
Emergency
Availability:
27

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 526265
Barcode 5055788246626
Category Luminaires
Range Name Slimline
Type Linear
Product Type Linear High Bay
Product Body Finish Natural Aluminium
Market Segment Commercial indoor, Industrial indoor
Finish Natural Aluminium
Features Emergency Function
Warranty (Years) 5
Emergency Option Integrated
Emergency Category High Bays
Linkable No
Product Length (mm) 1205
Product Depth (mm) 72
Product Width (mm) 135
Product Weight (g) 7600
Optic Polycarbonate diffuser
Material PC
Construction PC extrusion
Bulb or Luminaire Shape Linear
Luminaire Fixing Suspended
Mounting Type Rear Cable Entry
Placement / Application Indoor, Outdoor, General Lighting
Energy Efficiency Label (Image) ILHBL203E_EU_label
Luminous Flux in Lumens (lm) 23400
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 70
Frequency Range (Hz) 50/60 Hz
Instant on (Less than 1 second) Yes
LED Size (mm) 3030
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 100000
Useful Lumens (lm) 23400
Power Consumption (W) 180
Power Factor 0.95
Voltage Range (v) 100-240
Input Voltage (V) 220-240
Dimming Dimmable
Driver Included Yes
Electric Current AC
Emergency Type Non-Maintained
Protection Function Short Circuit, overload and overheating protection on driver
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating D
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK10
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 50
Package Weight (g) 9400
Package Length (mm) 1260
Package Width (mm) 180
Package Depth (mm) 90

Product Specification Sheet

Safety Guides

LDT Files

Installation Guides
