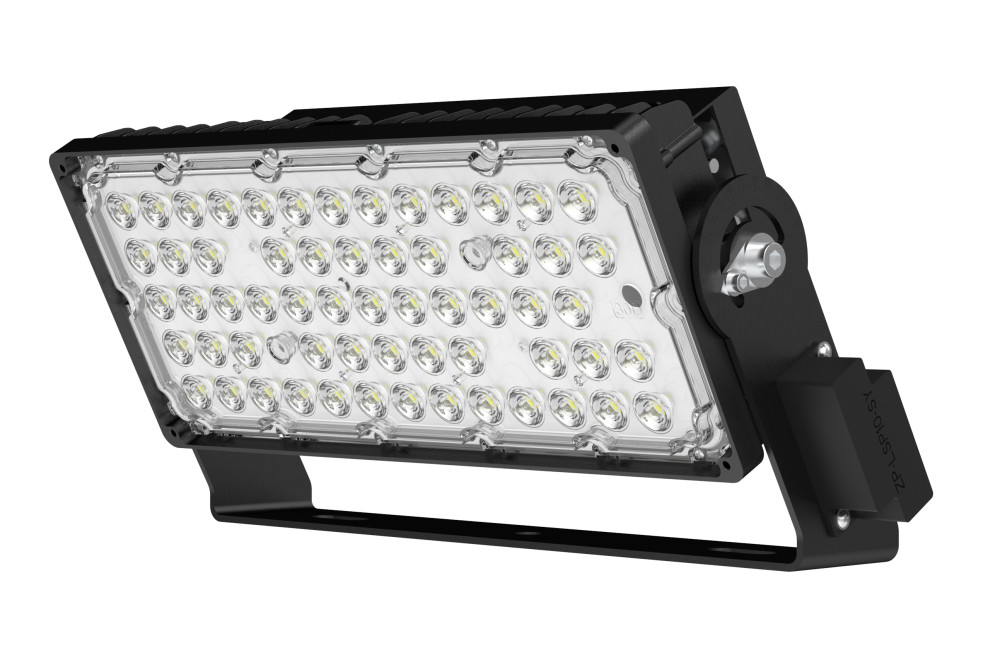

PRECISION PRO II SPORTS LED FLOODLIGHT 200W 28000LM 5700K 30 BEAM 140LM/W CRI>90,R9≥50,TLCI≥85 IP66 IK10 INTEGRAL BLACK
Part Number:
ILFLD571
The Precision Pro II Sports LED floodlight is ideal for sports arenas and outdoor sporting venues. Its IP66 and IK10 ratings ensure protection from the elements, water, and impacts. The colour temperature is specially honed to be close to natural daylight, ensuring perfect conditions for both human vision and TV broadcasting. Bright light doesn’t need to sacrifice efficiency with 130LM/W efficacy. 5 years warranty for maximum peace of mind.
- Product Feature 1:
- Ideal for Small to Large Sports Arenas
- Product Feature 2:
- Highly efficient - 130lm/W
- Product Feature 3:
- Lighting Level Optimisation through Controlled & Glare free Optics
- Product Feature 5:
- 30° beam angle
- Product Feature 6:
- Easy Access to Control Gear from the rear
- Availability:
-
31
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788318910 |
|---|---|
| Quick Order Code | 697314 |
| Category | Luminaires |
| Range Name | Precision Pro II |
| Market Segment | Commercial & Industrial Outdoor |
| Finish | Matt Black |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 353 |
|---|---|
| Product Depth (mm) | 64 |
| Product Width (mm) | 162 |
| Product Weight (g) | 2800 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate, Glass |
| Construction | Aluminium, Iron and 304 Stainless Steel |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Bracket for Wall & Pole Mounting |
| Mounting Type | Pre Wired 1M flex |
| Placement / Application | Outdoor, General Lighting |
| Control Gear | Non-replaceable |
Light Data
| Beam Type | Symmetrical |
|---|---|
| Luminous Flux in Lumens (lm) | 26000 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 5700 |
| Colour Temperature Name | Daylight |
| Beam Angle | 30 |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | No |
| Switching Cycles | 25000 |
| Useful Lumens (lm) | 26000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption (W) | 200 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | C |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788318910 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 3300 |
| Package Length (mm) | 390 |
| Package Width (mm) | 260 |
| Package Depth (mm) | 140 |
| Outer Carton Barcode | 05055788319009 |
| Qty per Outer Carton | 1 |
| Outer Carton Length (mm) | 390 |
| Outer Carton Width (mm) | 260 |
| Outer Carton Depth (mm) | 140 |
Safety Guide
ILFLD571
