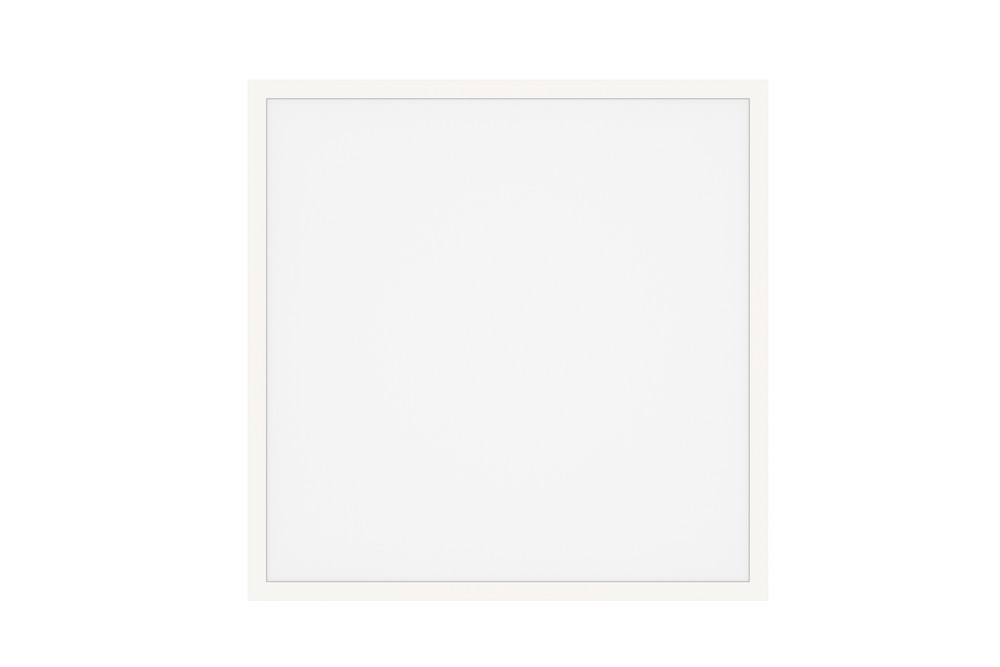

EVO LED PANEL LIGHT 600X600 3600LM 30W 3000K BACKLIT NON-DIMM 120LM/W 5YR WARRANTY INTEGRAL
Part Number:
ILP6060B048
This is a 33W, 3350lm 600x600 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface. The high level of efficacy (102lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 3350 Lumens
- Product Feature 3:
- Highly efficient - 102lm/W
- Product Feature 4:
- 5 year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788283591 |
|---|---|
| Quick Order Code | 411746 |
| Product Type | 600 x 600 |
| Category | Panels |
| Range Name | Evo |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 595 |
|---|---|
| Product Width (mm) | 595 |
| Product Depth (mm) | 35 |
| Product Weight (g) | 1600 |
| Material | Aluminium, Steel, PS Diffuser |
| Construction | Aluminimum backplate and frame |
| Emergency Option | Optional Conversion Kit |
| Emergency Category | Panels |
| Optic | Opal diffuser |
Light Data
| Luminous Flux in Lumens (lm) | 3350 |
|---|---|
| Luminous efficacy (lm/W) | 102 |
| Peak Intensity (Cd) | 1197 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000 - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Lighting Method | Back-lit |
| Switching Cycles | 17500 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 33 |
|---|---|
| Power Consumption (W) | 33 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 850 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| IP Rating (Back/Recessed side) | IP20 |
|---|---|
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | E |
| TP rating | None |
Packaging
| Barcode | 5055788283591 |
|---|---|
| Package Weight (g) | 2090 |
| Package Length (mm) | 625 |
| Package Width (mm) | 600 |
| Package Depth (mm) | 42 |
Safety Guide
ILP6060B048
