G9 BULB 600LM 4.8W 2700K NON-DIMM 320 BEAM INTEGRAL
Part Number:
ILG9NC019

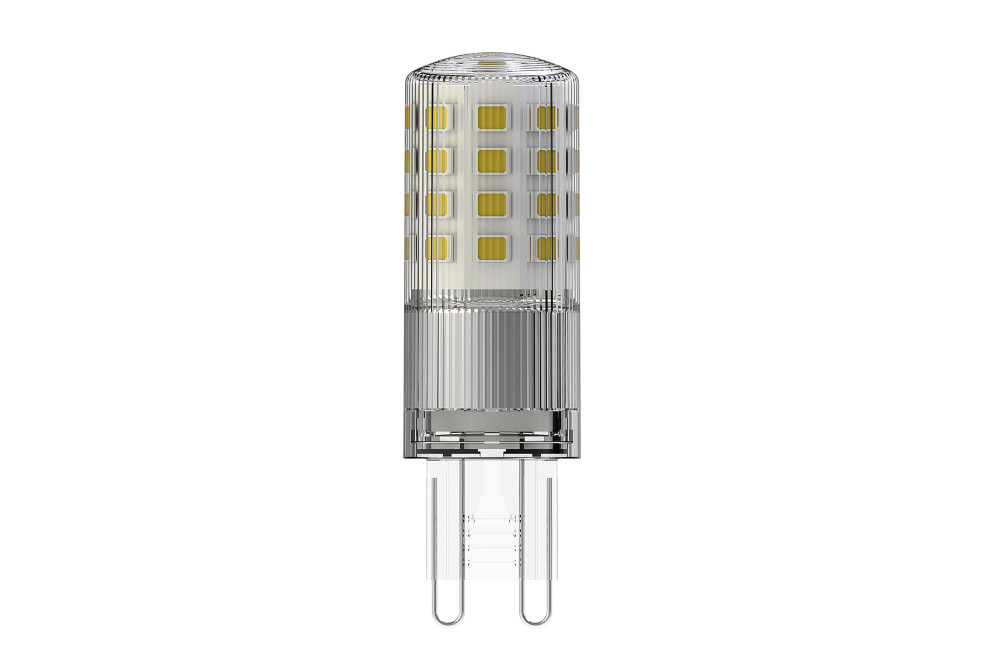

This Integral LED G9 lamp offers a high 600lm output in 2700K. At 4.8W this capsule lamp is highly efficient compared to the halogen lamps they are designed to replace. Ideal for pendant fittings and accent lighting in domestic, hospitality and retail applications.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 600 Lumens
- Product Feature 3:
- Non-Dimmable
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788300052 |
|---|---|
| Quick Order Code | 685070 |
| Product Type | G9 |
| Category | Lamps |
| Range Name | G9 |
| Market Segment | Commercial indoor, Residential indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 2 |
Physical Data
| Bulb or Luminaire Shape | Cylindrical |
|---|---|
| Product Length (mm) | 59 |
| Product Width (mm) | 18 |
| Product Depth (mm) | 18 |
| Product Weight (g) | 11 |
| Material | Plastic |
| Construction | Plastic heat-sink, Injection moulded diffuser |
| Base Term | G9 |
| Bulb Base | G9 |
| Globe Finish | Clear |
Light Data
| Energy Efficiency Label (Image) | ILG9NC019_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 600 |
| Luminous efficacy (lm/W) | 125 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700 - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 320 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 30000 |
Electrical Data
| Power (W) | 4.8 |
|---|---|
| Power Consumption (W) | 4.8 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 48 |
| Amperage (mA) | 40 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 48 |
Environmental
| IP Rating (Ingress Protection) | IP20 |
|---|---|
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| EN | EN-62560 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | E |
Packaging
| Barcode | 5055788300052 |
|---|---|
| Package Weight (g) | 21 |
| Package Length (mm) | 20 |
| Package Width (mm) | 20 |
| Package Depth (mm) | 54 |
| Qty per euro pallet | 23040 |
