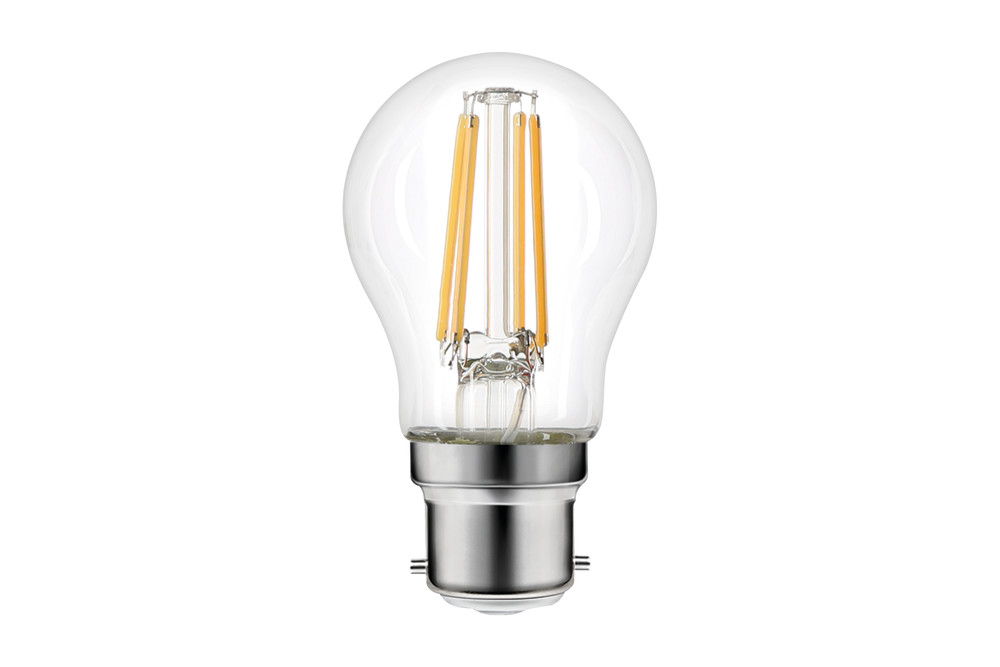

OMNI FILAMENT GOLF BALL BULB B22 470LM 3.4W 4000K DIMMABLE 320 BEAM CLEAR FULL GLASS INTEGRAL
Part Number:
ILGOLFB22DE071
Integral Filament Omni Lamps utilise Filament LED technology and a full-glass body to create a decorative look and wide beam angle that looks fantastic in chandeliers and fittings where the lamp is exposed. These retrofit lamps are highly efficient and are an ideal replacement for traditional tungsten filament bulbs.
- Product Feature 1:
- Filament technology with super-wide beam angle
- Product Feature 2:
- Cool White light
- Product Feature 3:
- 470 Lumens
- Product Feature 4:
- Dimmable
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788272083 |
|---|---|
| Quick Order Code | 573382 |
| Category | Lamps |
| Range Name | Omni |
| Product Type | Golf Ball |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 80 |
|---|---|
| Product Width (mm) | 45 |
| Product Weight (g) | 21 |
| Material | Aluminium, Glass |
| Base Term | Bayonet cap |
| Bulb Base | B22 |
| Construction | Glass shell, Filament strip, Aluminium base |
| Globe Finish | Clear |
| Globe Type | Golf Ball |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILGOLFB22DE071_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 470 |
| Luminous efficacy (lm/W) | 138 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 320 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Filament chip |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 3.4 |
|---|---|
| Power Consumption (W) | 3.4 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 40 |
| Amperage (mA) | 25 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A++ |
| New Energy Rating | D |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788272083 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 46 |
| Package Length (mm) | 90 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 50 |
| Inner Carton Barcode | 05055788273004 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 266 |
| Inner Carton Width (mm) | 110 |
| Inner Carton Depth (mm) | 100 |
| Outer Carton Barcode | 05055788273929 |
| Qty per Outer Carton | 60 |
| Outer Carton Length (mm) | 356 |
| Outer Carton Width (mm) | 286 |
| Outer Carton Depth (mm) | 230 |
| Qty per euro pallet | 3840 |
