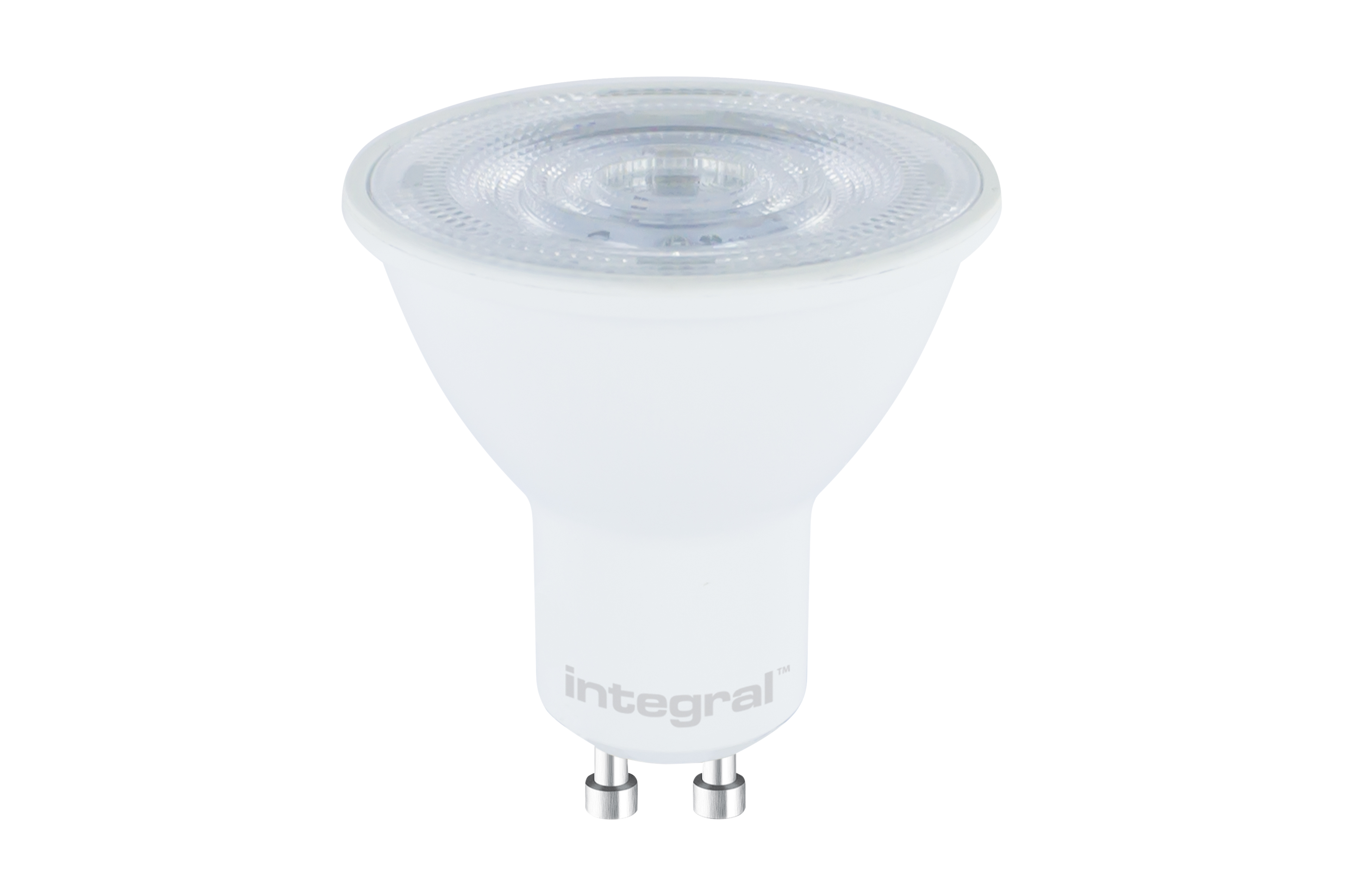

CLASSIC GU10 BULB 520LM 4.9W 4000K DIMMABLE 55 BEAM INTEGRAL
Part Number:
ILGU10DE101
This GU10 lamp offers a wider beam angle of 55 degrees, which will cover a larger area in light with fewer lamps than other GU10 spotlights. The LEDs are specially arranged for a COB-like effect, which paired with the diffuser lens creates a light quality very similar to traditional halogen spotlights.
- Product Feature 1:
- Cool White Light
- Product Feature 2:
- 460 Useful Lumens (520 Nominal)
- Product Feature 3:
- Dimmable
- Availability:
-
1000+
More stock due in on 18/03/2025
Details
| Barcode | 5055788237211 |
|---|---|
| Quick Order Code | 881146 |
| Category | Lamps |
| Range Name | 56 deg Beam Angle |
| Product Type | GU10 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 54 |
|---|---|
| Product Width (mm) | 50 |
| Product Weight (g) | 50 |
| Optic | Designed to give a Classic Look |
| Material | Plastic and Aluminium heat-sink, Injection moulded diffuser |
| Base Term | GU10 |
| Bulb Base | GU10 |
| Construction | Plastic White and "Classic look" difuser lens |
| Bulb Fixing | Downlight |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD with "COB like effect" |
Light Data
| Energy Efficiency Label (Image) | ILGU10DE101_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 540 |
| Luminous efficacy (lm/W) | 106 |
| Peak Intensity (Cd) | 600 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 55 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 460 |
Electrical Data
| Power (W) | 4.9 |
|---|---|
| Power Consumption (W) | 4.9 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 65 |
| Amperage (mA) | 32 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 65 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788237211 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 42 |
| Package Length (mm) | 55 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 60 |
| Inner Carton Barcode | 05055788237228 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 290 |
| Inner Carton Width (mm) | 120 |
| Inner Carton Depth (mm) | 70 |
| Outer Carton Barcode | 05055788237235 |
| Qty per Outer Carton | 100 |
| Outer Carton Length (mm) | 626 |
| Outer Carton Width (mm) | 310 |
| Outer Carton Depth (mm) | 170 |
