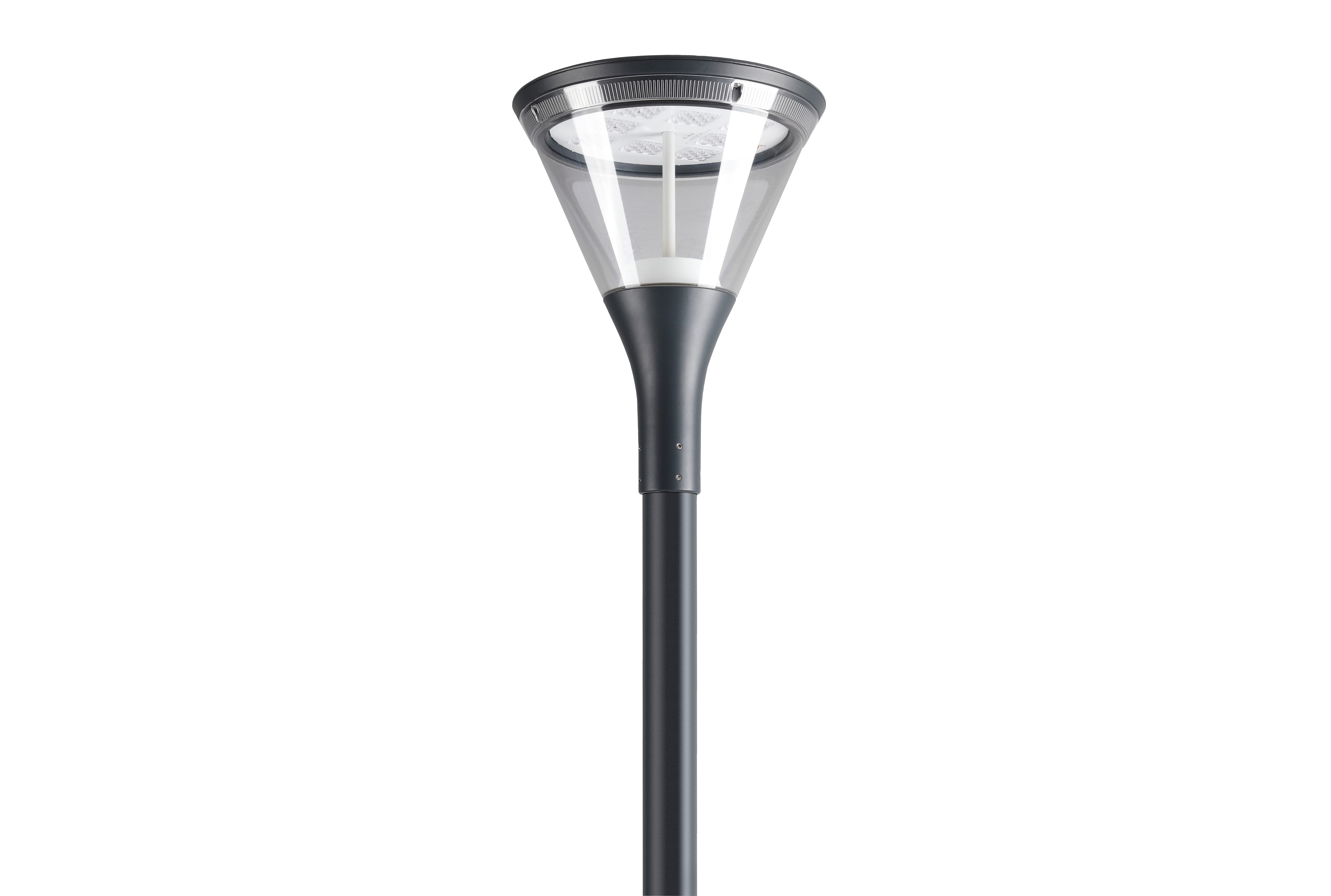

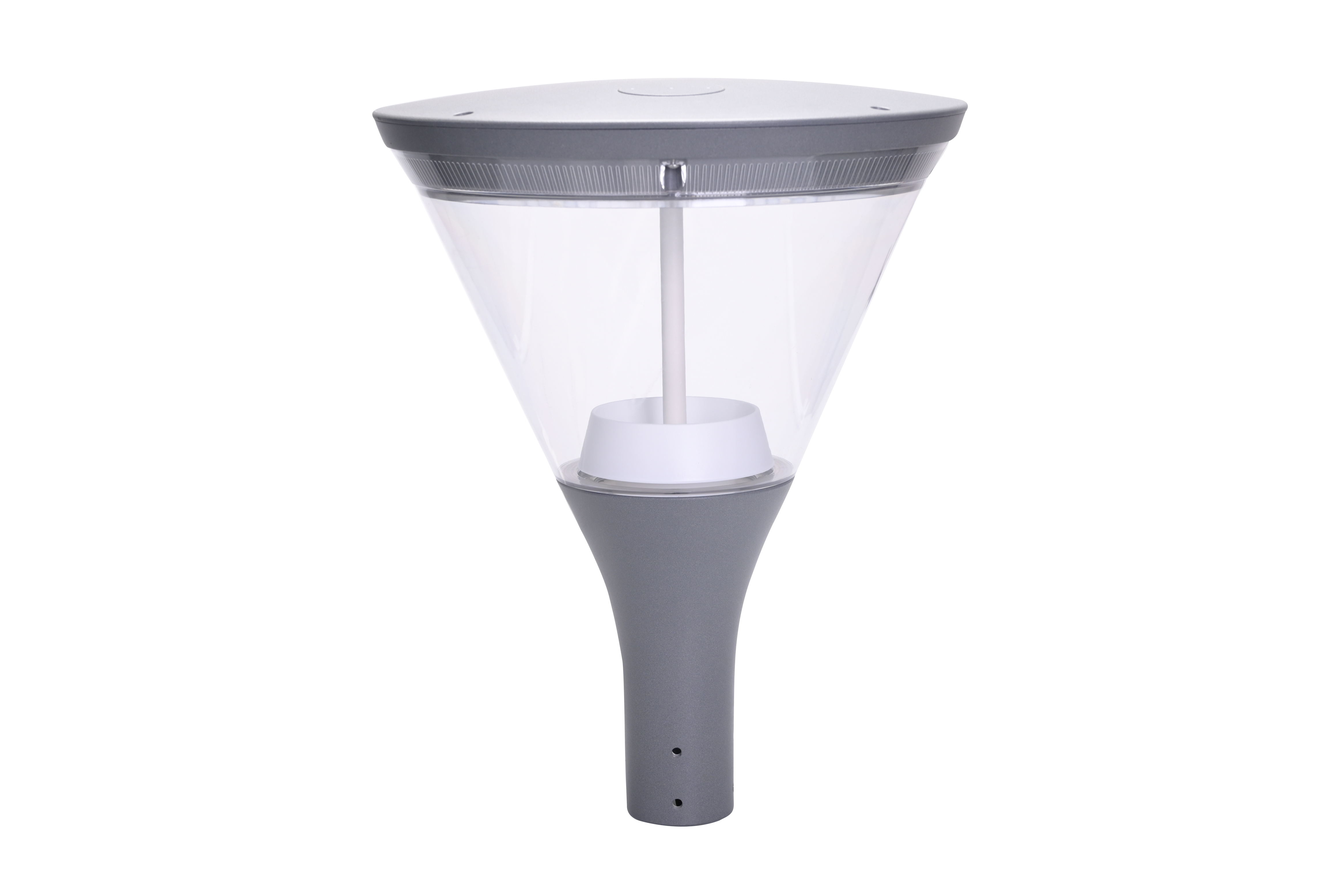

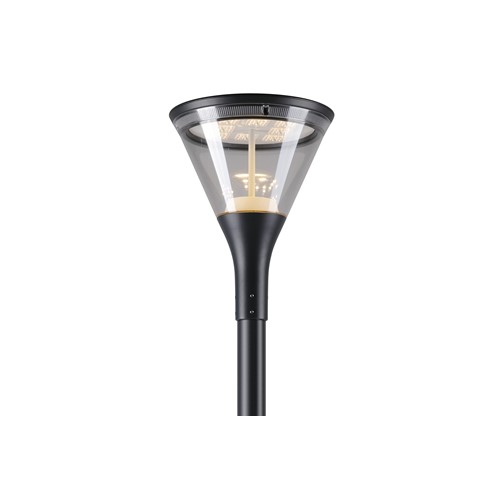

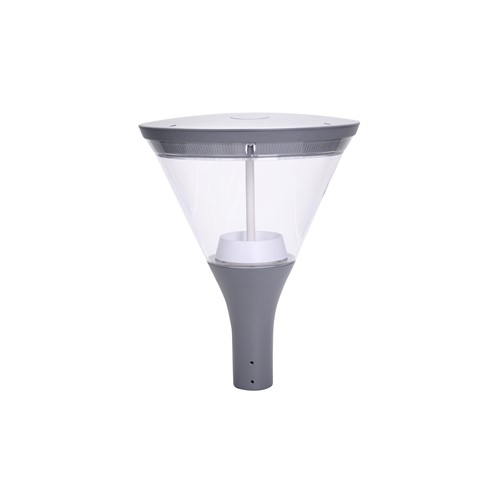

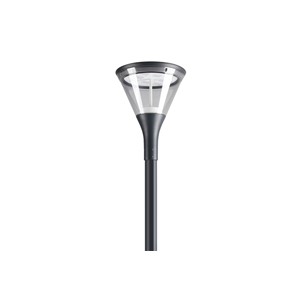

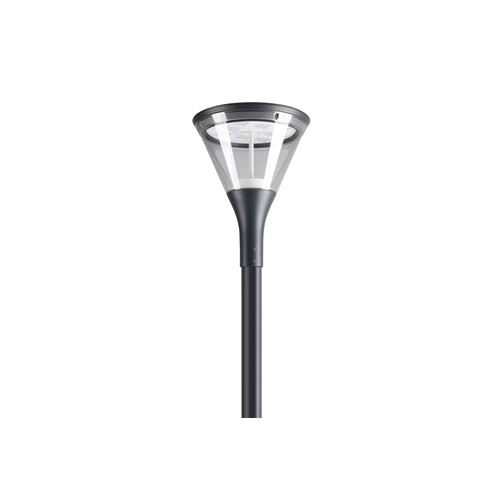

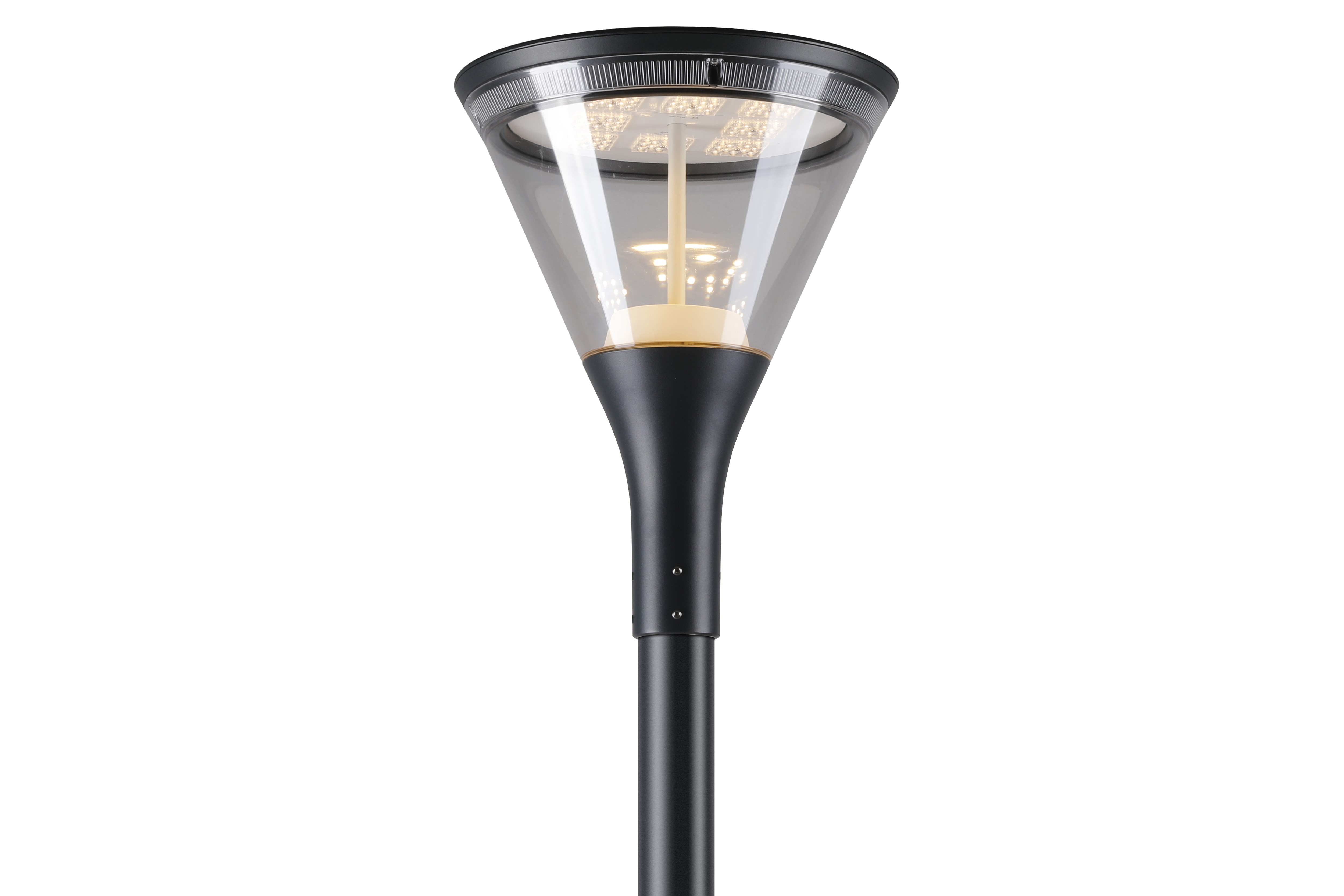

SKYLINE POST TOP URBAN LIGHTING POWER SELECTABLE PC CLEAR OPTICS 25W-35W-45W-60W CCT SELECTABLE 3000K/4000K/5000K IP66 IK10 WITH 10KV SURGE PROTECTOR DEVICE & NEMA3 SOCKET SUPPLIED WITH SHORTING CAP 528MM X 400MM 76mm SPIGOT BLACK 1M CABLE WITH IP68 CONNECTOR BLACK HOUSING 5 YEAR WARRANTY INTEGRAL
Part Number:
ILSLA005
Contemporary, sleek, durable. This pollution-reducing post top outdoor area light is ideal for precinct lighting, car parks and public areas like promenades and landscapes. 3 colour temperatures, 4 power settings and a 5-year warranty.
- Product Feature 1:
- Contemporary design urban lighting post with 3 CCT and 4 power selections
- Product Feature 2:
- 90° beam and 360° light spread for uniform light distribution
- Product Feature 3:
- Delivered lumen package from 3750lm to 9000lm - 140lm/W
- Product Feature 4:
- 3-Pin NEMA socket suitable for dusk-dawn photocell
- Product Feature 5:

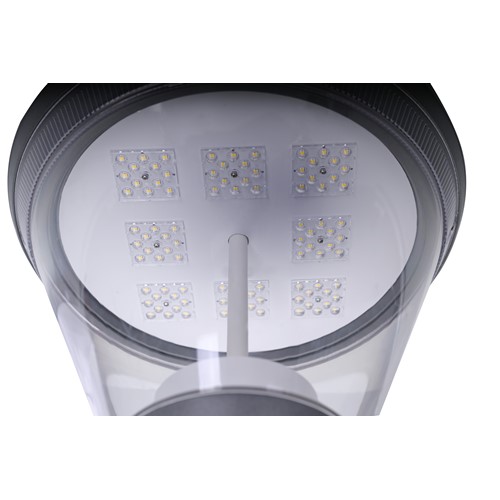

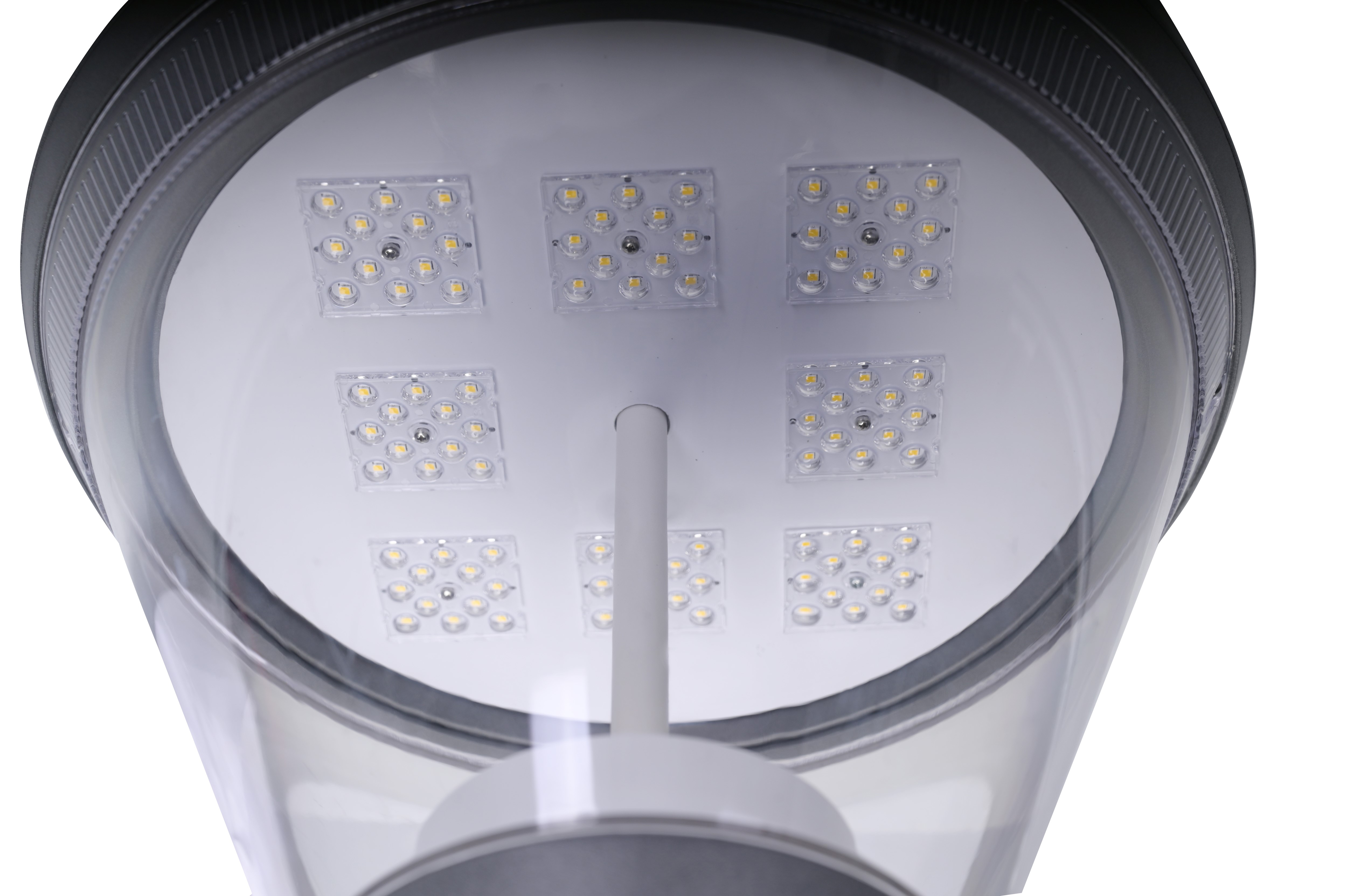

- LED light source from the upper hat prevents upward lighting and reduces light pollution
- Product Feature 6:
- IP66, IK10, RAL7024 die-cast aluminium body with clear polycarbonate diffuser and 76mm spigot
- Product Feature 7:
- Ideal for precinct lighting, car parks and public areas such as promenades and landscapes
- Availability:
-
0
More stock due in on 10/02/2026
Details
| Barcode | 5056884600664 |
|---|---|
| Quick Order Code | 915223 |
| Category | Luminaires |
| Range Name | Amenity |
| Product Body Finish | Grey |
| Market Segment | Commercial and Outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 518 |
|---|---|
| Product Depth (mm) | 518 |
| Product Width (mm) | 404 |
| Product Weight (g) | 10500 |
| Construction | Aluminium and polycarbonate body, Tempered glass, Integrated driver |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Bracket for Wall & Pole Mounting |
| Placement / Application | Outdoor |
Light Data
| Luminous Flux in Lumens (lm) | 3200 |
|---|---|
| Luminous efficacy (lm/W) | 150 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 5000 (CCT Switchable) |
| Colour Temperature | 3000/4000/5000 - Warm White / Cool White / Daylight |
| Colour Temperature Name | Warm White to Daylight |
| Beam Angle | 360 |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 47/63 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 100000 |
| Sensor / Overide | No |
| Switching Cycles | 25000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption (W) | 80 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 108-305 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Back/Recessed side) | IP66 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5056884600664 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 10500 |
| Package Length (mm) | 420 |
| Package Width (mm) | 420 |
| Package Depth (mm) | 615 |
| Qty per euro pallet | 6 |
