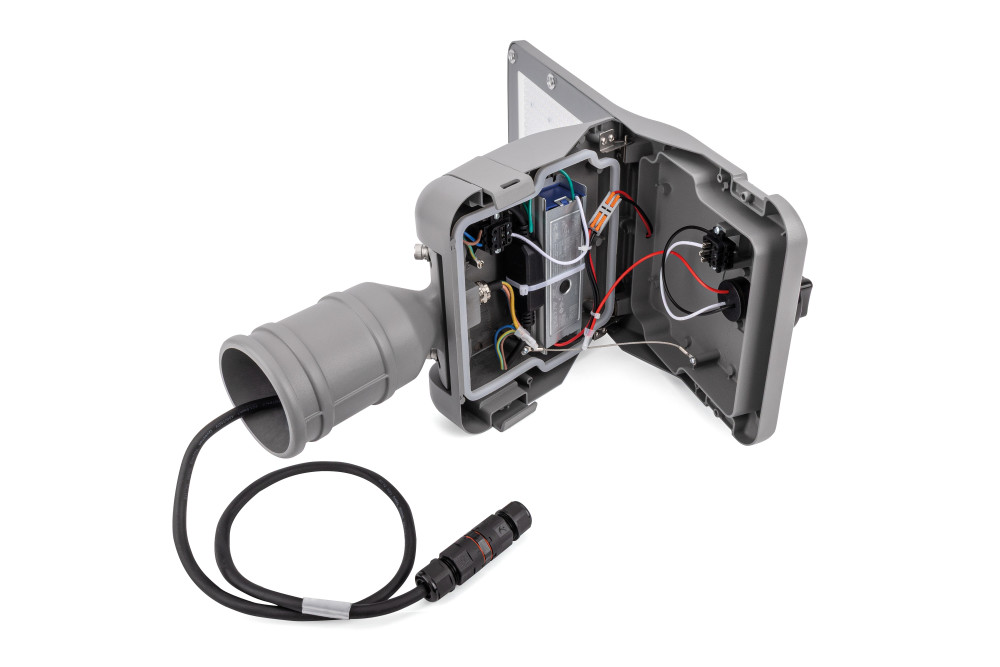

VISION STREETLIGHT 80W 12800lm 4000K T2M OPTICS IP65 IK08 76mm DIA SPIGOT 160LM/W NEMA3 WITH CAP , KNIFE SWITCH AUTO DISCONNECTOR RAL7037 LIFUD DRIVER, 10KV SURGE PROTECTOR,UMSUG CERTIFIED 1M 3*1.5mmSq CABLE WITH IP68 EXTERNAL CONNECTOR , 5YEAR WARRANTY
Part Number:
ILSLB011

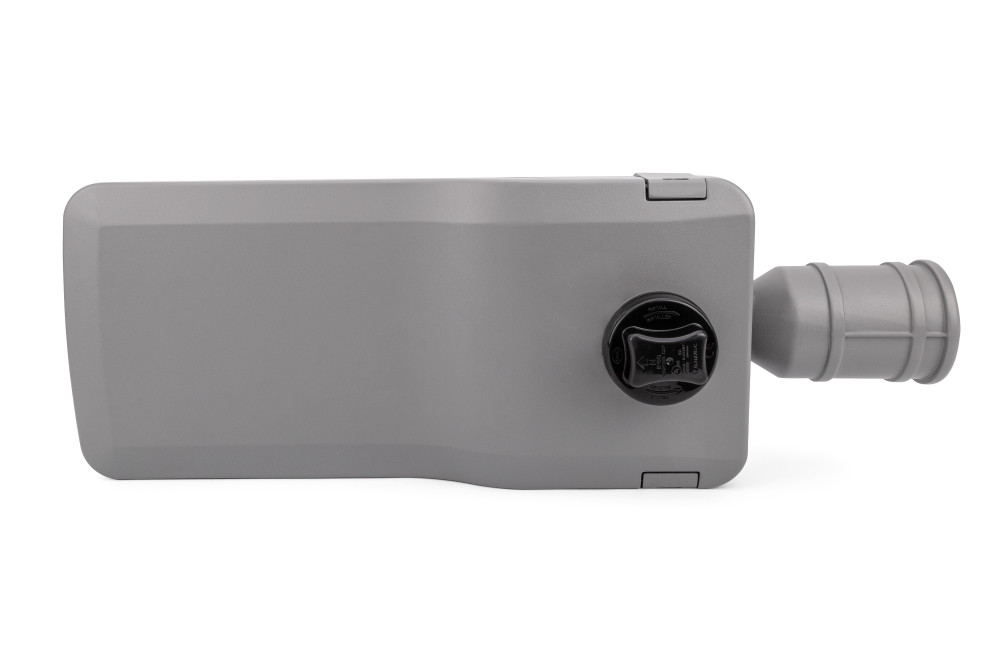

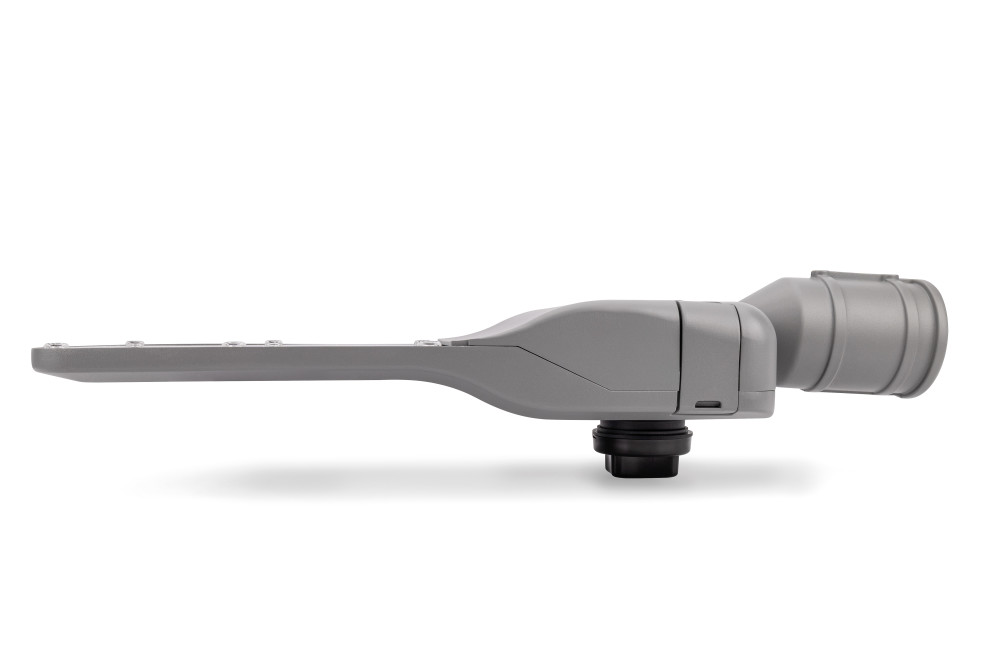

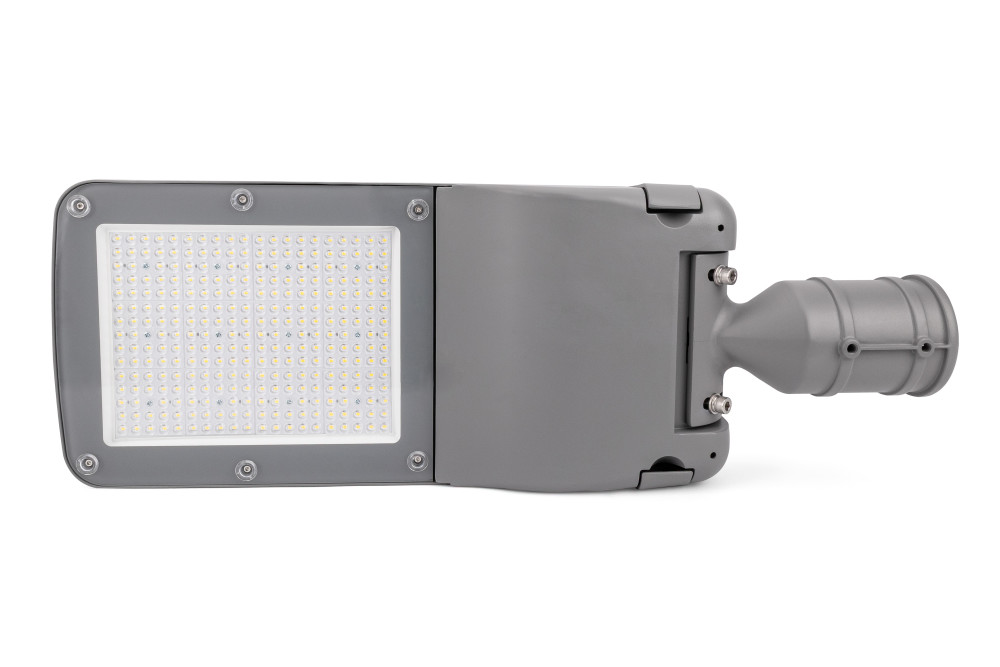

This compact LED street light offers smooth elegance for residential streets, walkways, traffic routes and car parks. The design is suitable for post top or side entry mounting with adjustable and tilt degree settings which allow uniformity from any angle. Easy to install and toolless maintenance.
- Product Feature 1:
- Compact LED design
- Product Feature 2:
- Ultra-efficient 160Lm/w
- Product Feature 3:
- Ultra efficient LED lantern for residential street, highways, walkways and car parks
- Product Feature 4:
- Suitable for Post-top & side-entry mounting with adjustable tilt settings
- Product Feature 5:
- 3-pin NEMA socket with shorting cap supplied
- Product Feature 6:
- Suitable for Post-top & side-entry mounting with adjustable tilt settings
- Product Feature 7:
- Suitable for 76mm Spigot mounting
- Product Feature 8:
- Contact us for columns and accessories
- Availability:
-
78
More stock due in on 07/04/2026
Suggested products
Details
| Barcode | 5055788302896 |
|---|---|
| Quick Order Code | 466995 |
| Category | Luminaires |
| Range Name | Vision |
| Product Body Finish | Grey |
| Market Segment | Commercial and Outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 654.3 |
|---|---|
| Product Depth (mm) | 150.3 |
| Product Width (mm) | 227 |
| Product Weight (g) | 4390 |
| Material | Aluminium, Tempered Glass |

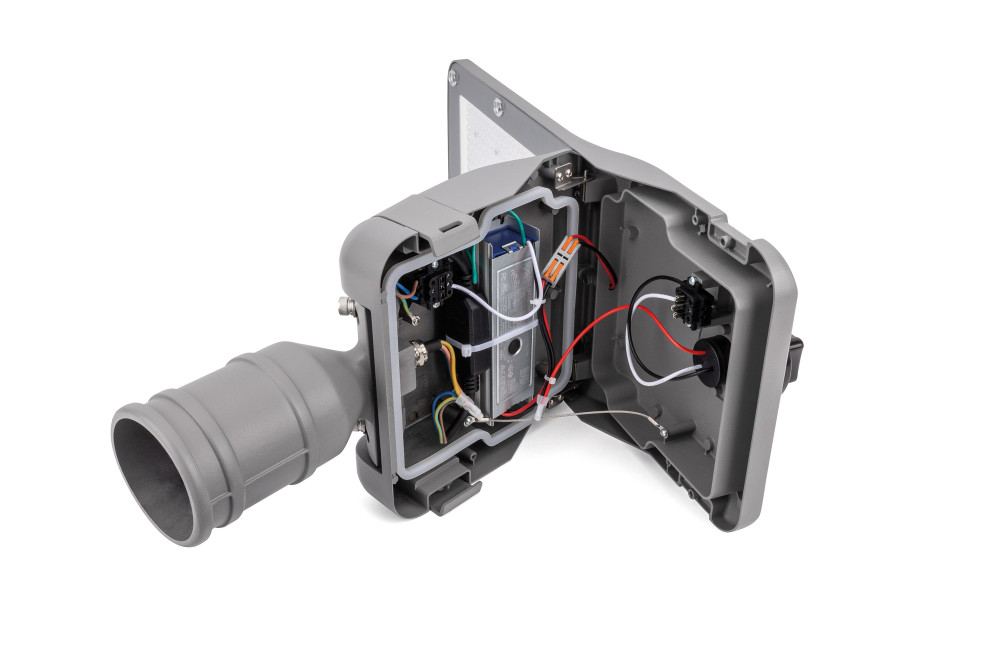

| Construction | Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Bracket for Wall & Pole Mounting |
| Placement / Application | Outdoor |
| Control Gear | Non-replaceable |
Light Data
| Beam Type | Asymmetrical |
|---|---|
| Luminous Flux in Lumens (lm) | 12800 |
| Luminous efficacy (lm/W) | 160 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | T2-M |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | No |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption (W) | 72 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 100-240 |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | C |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Back/Recessed side) | IP65 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788302896 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 5620 |
| Package Length (mm) | 735 |
| Package Width (mm) | 300 |
| Package Depth (mm) | 200 |
| Outer Carton Length (mm) | 735 |
| Outer Carton Width (mm) | 300 |
| Outer Carton Depth (mm) | 200 |
| Qty per euro pallet | 60 |
Safety Guide
ILSLB011
