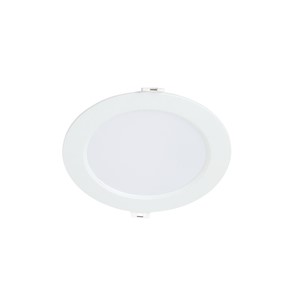

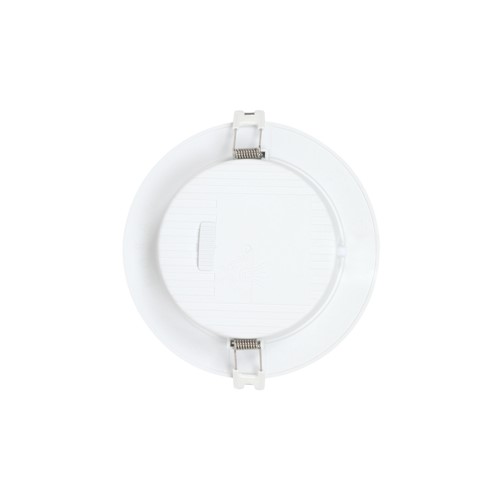

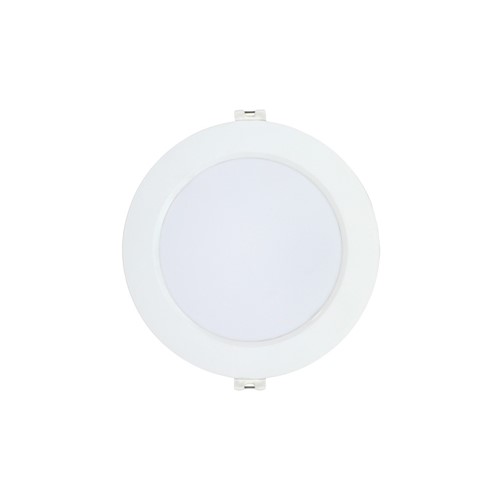

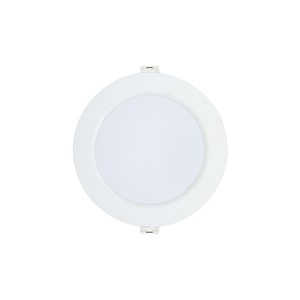

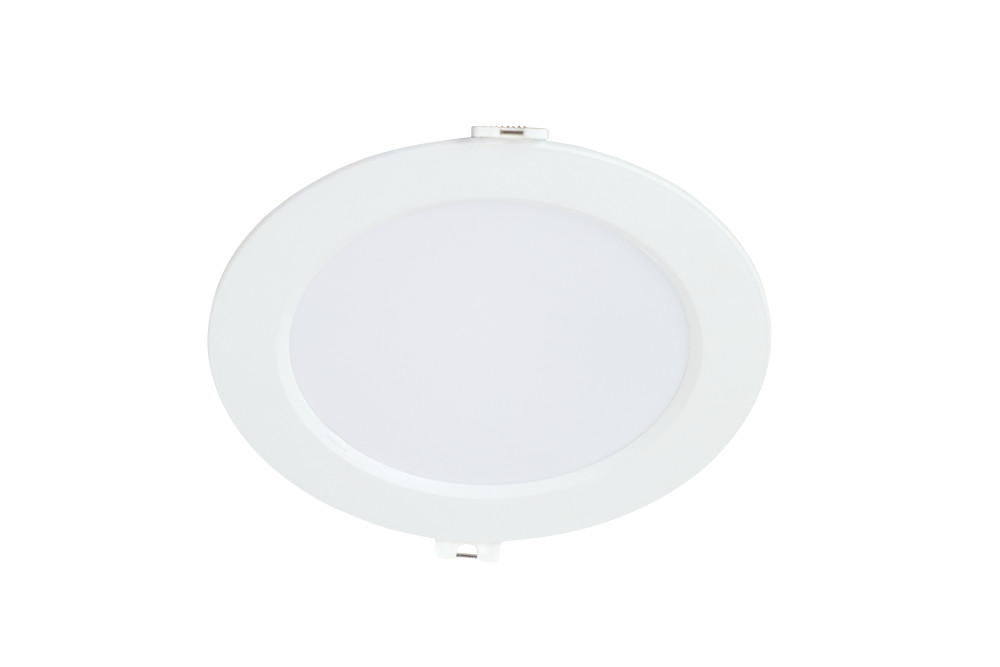

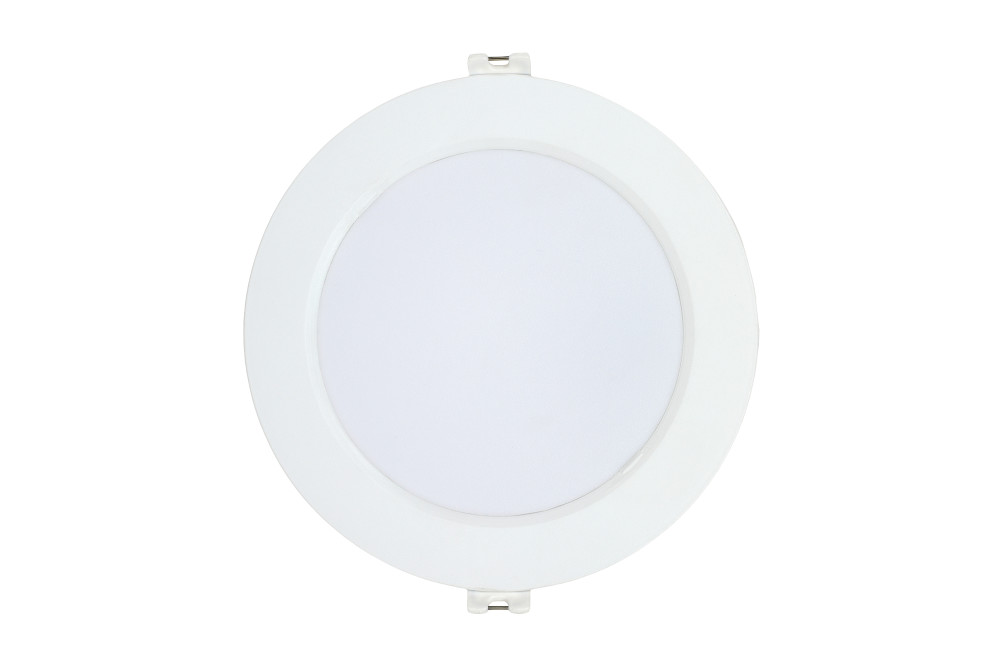

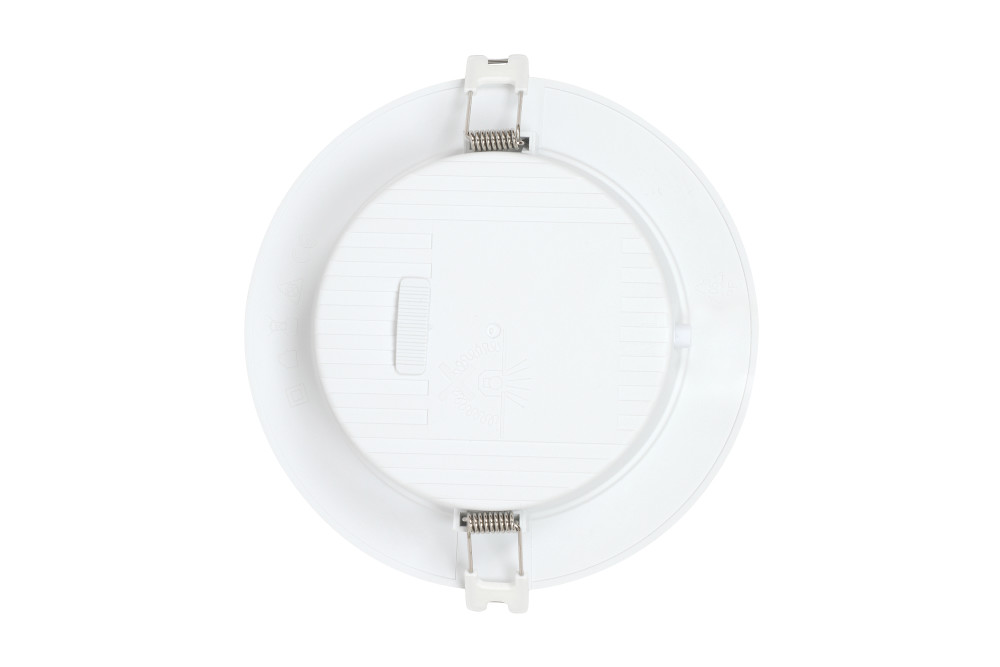

CIRCULAR PANEL DOWNLIGHT 190-200MM CUTOUT 18W 1800LM 100LM/W CCT SWITCHABLE 3000K/4000K/6500K NON-DIMMABLE
Part Number:
ILDL190V101
- Product Feature 1:
- Up to 100lm/W
- Product Feature 2:
- Clean, modern, high quality design
- Product Feature 3:
- Thin 2mm bezel for a seamless,flush finish
- Product Feature 4:
- Cut outs: 125mm - 275mm
- Product Feature 5:
- Up to 2400lm
- Availability:
-
0
More stock due in on 02/10/2025
Suggested products
Details
| Barcode | 5055788312185 |
|---|---|
| Quick Order Code | 929570 |
| Category | Downlights |
| Range Name | Circular panel |
| Product Type | Downlight |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 220.8 |
| Product Depth (mm) | 28.9 |
| Product Width (mm) | 220.8 |
| Product Weight (g) | 180 |
| Diameter (mm) | 220.8 |
| Optic | PS Diffuser |
| Material | Plastic |
| Overall diameter (mm) | 220.8 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 190-200 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 1800 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000, 4000, 6500 |
| Colour Temperature | 3000/4000/6500 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 1800 |
Electrical Data
| Power (W) | 18 |
|---|---|
| Power Consumption (W) | 18 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 140 |
| Input Current (A) | 0.14 |
| Input Voltage (V) | 230 |
| Output Current (mA) | 60 |
| Output Voltage (V) | 250 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Insulation Guard | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 35 |
Packaging
| Barcode | 5055788312185 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 190 |
| Package Length (mm) | 238 |
| Package Width (mm) | 225 |
| Package Depth (mm) | 35 |
| Outer Carton Barcode | 5055788312239 |
| Qty per Outer Carton | 40 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 375 |
| Outer Carton Depth (mm) | 475 |
| Qty per euro pallet | 480 |
Safety Guide
ILDL190V101-3000K
