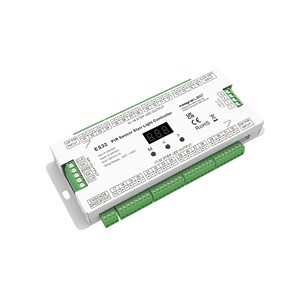

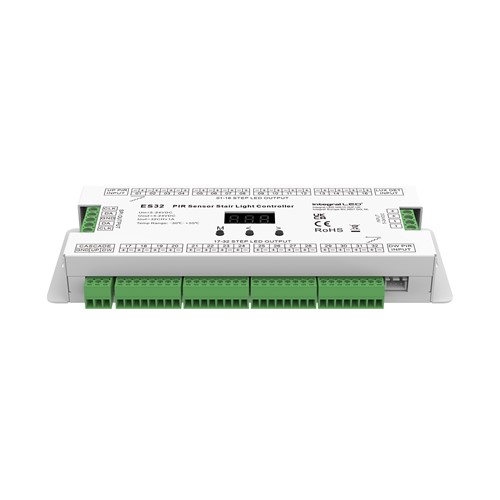

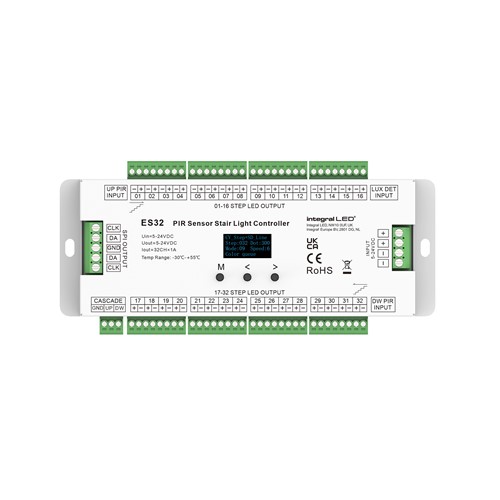

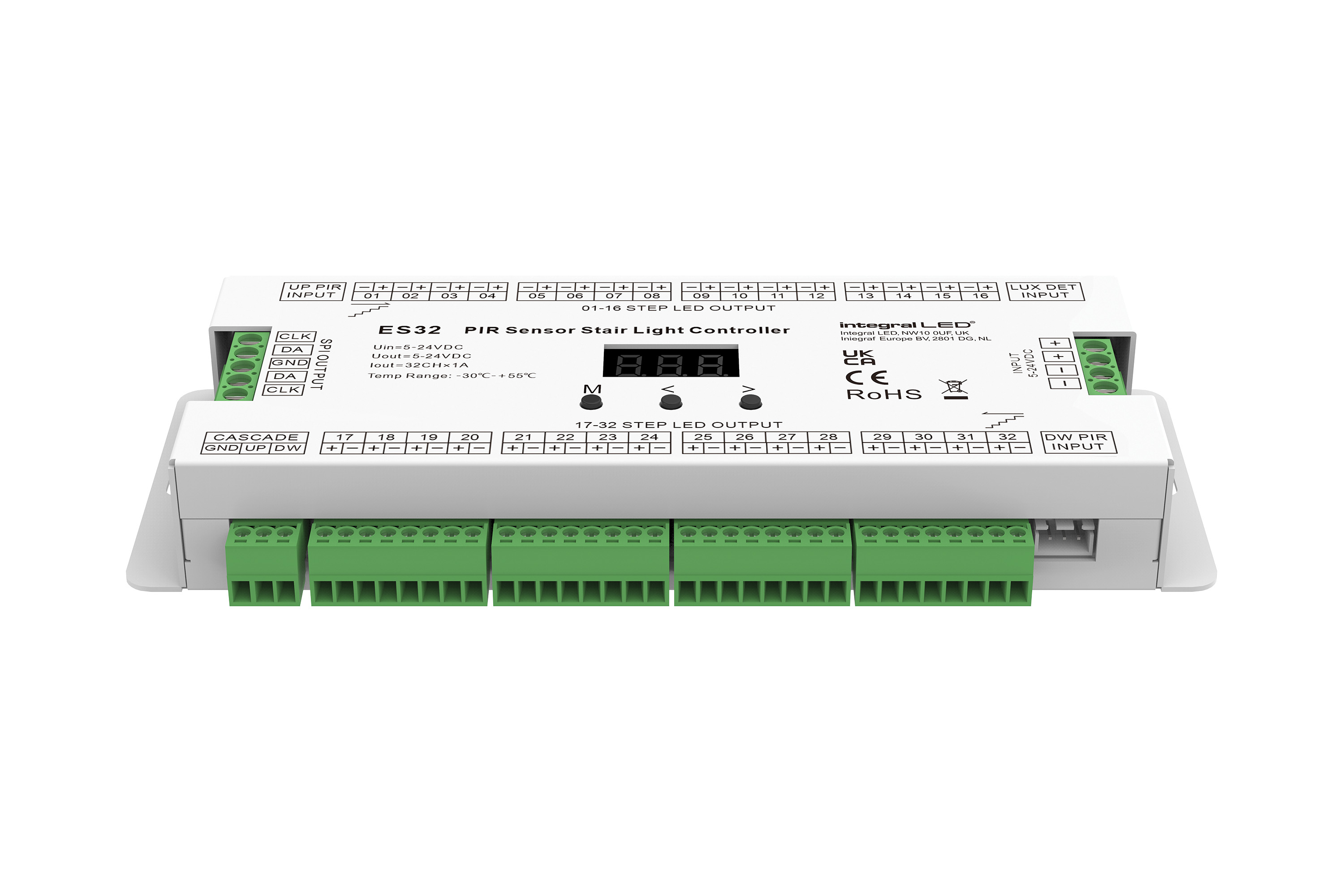

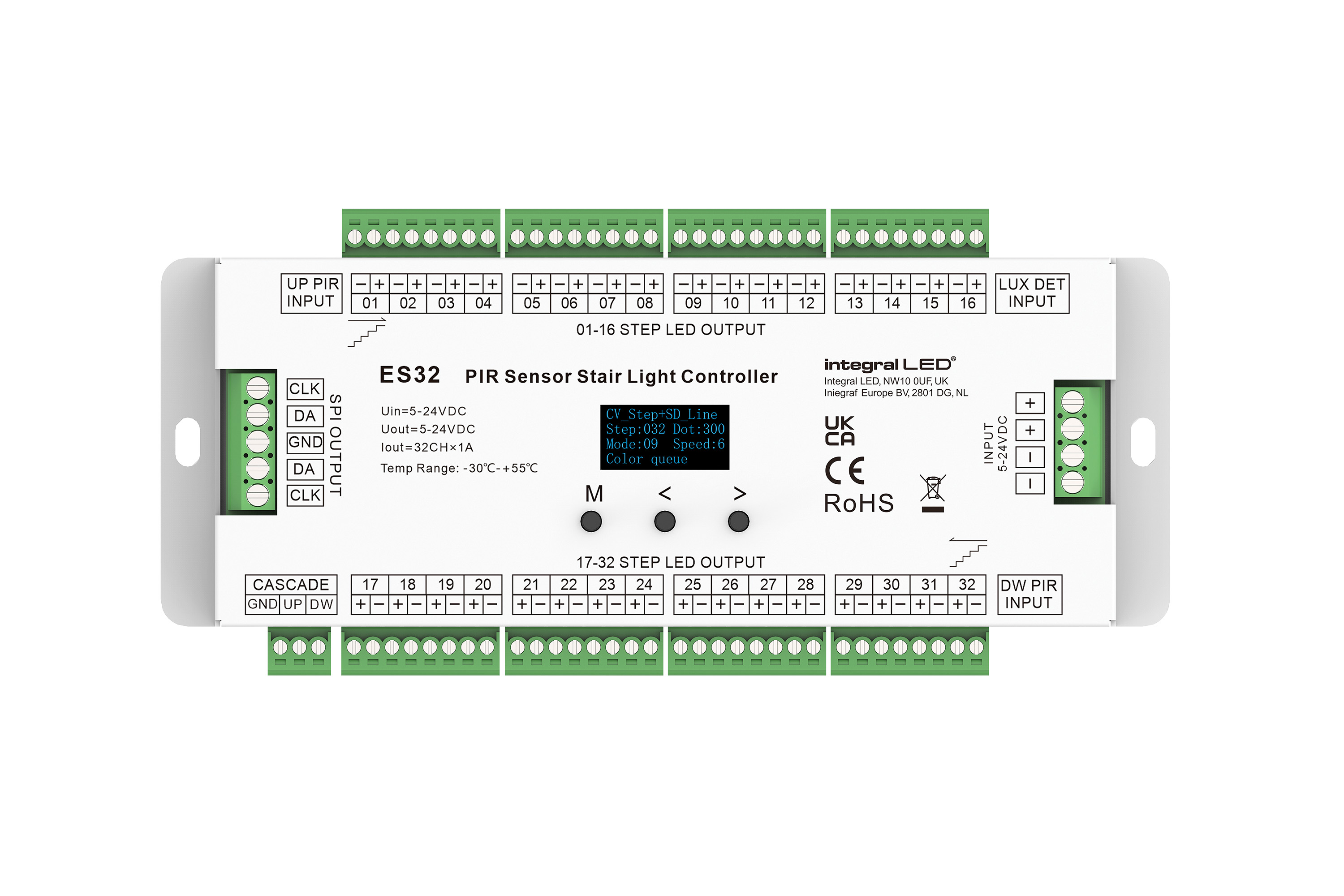

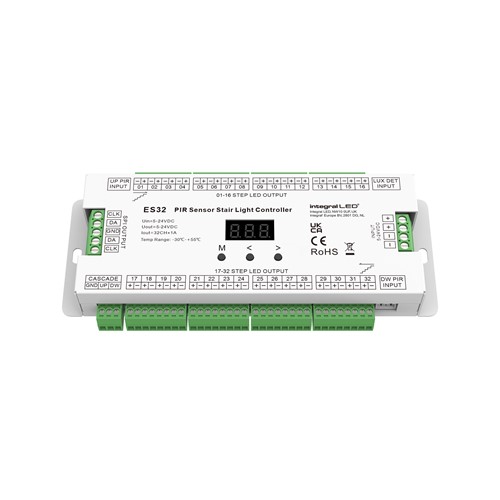

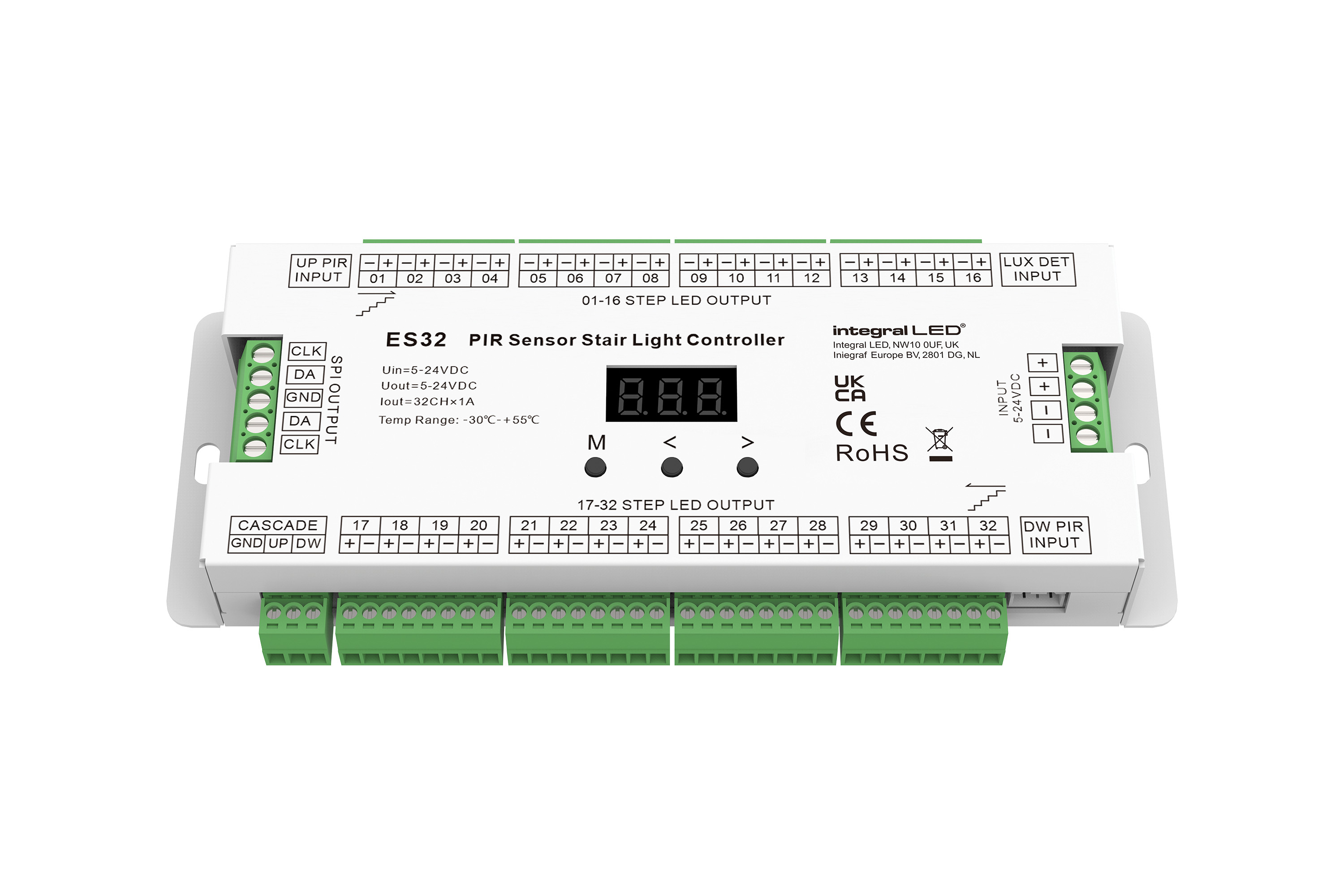

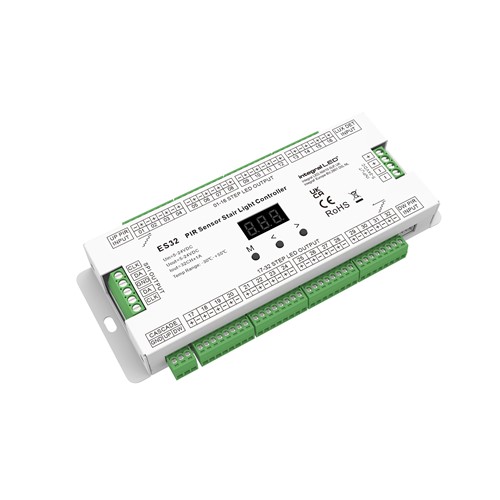

STAIR CONTROLLER SKYDANCE ES32 32 CHANNEL 5-24V OUTPUT 5-24VDC INPUT 1A/CHANNEL SPI DIGITAL INCLUDES 2X PIR & 1X DAYLIGHT SENSOR
Part Number:
ILRC056
This 32-channel stair controller uses PIR and daylight sensors to trigger illumination in each step as users ascend or descend, adding tasteful luxury to modern residential, commercial, and architectural spaces. Compatible with both Digital RGB and Digital White SPI strips for versatile lighting strip compatibility.
- Product Feature 1:
- Stair controller for use with digital SPI strip (Digital RGB or Digital White)
- Product Feature 2:
- Have stairs individually light up as you ascend or descend, triggered by a sensor
- Product Feature 3:
- 32-channel 5-24V Output, 5-24VDC Input, 1A per Channel
- Product Feature 4:
- Includes 2x PIR Sensor and 1x Daylight sensor to activate strip
- Availability:
-
48
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5056884605089 |
|---|---|
| Quick Order Code | 607869 |
| Category | Strips |
| Range Name | Skydance |
| Product Type | Controllers for strips |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 640 |
|---|---|
| Material | PCB, Plastic Shell |
| Handheld or Wall Mount | Underneath the stairs |
Light Data
Electrical Data
| Voltage Range (v) | 5-24 |
|---|---|
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Barcode | 5056884605089 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 640 |
| Package Length (mm) | 200 |
| Package Width (mm) | 90 |
| Package Depth (mm) | 70 |
| Outer Carton Barcode | 05056884605096 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 400 |
| Outer Carton Width (mm) | 225 |
| Outer Carton Depth (mm) | 230 |
Safety Guide
