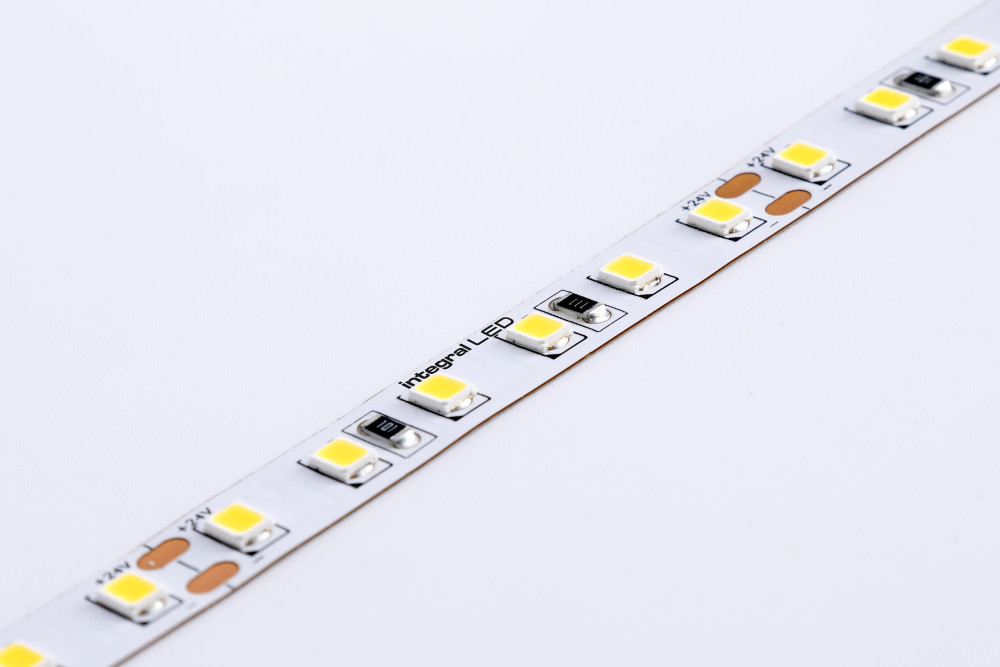

ULTRALONG MAX50 CORE IP20 4000K STRIP 12 MM TAPE 50M REEL 700LM/M 5.6W/M 48V
Part Number:
ILSTWHIA955E
Elevate the ambience of your spaces with the Integral LED Core Ultralong Max50 Strip, designed to blend performance and style seamlessly. Providing exceptional brightness with superior energy efficiency, this strip is capabale of maintaining harmonious control over 50 metres using a single driver, making it is ideal for applications requiring continuous, uninterrupted runs where multiple drivers or cut points are impractical.
Suitable for dry indoor environments, this LED strip offers a cool white 4000K colour temperature creates a neutral and fresh atmosphere.
- Product Feature 1:
- Core SMD 48V for maximum efficiency
- Product Feature 2:
- Ultralong MAX50 for runs up to a maximum of 50m without cuts
- Product Feature 3:
- 5.6W per metre
- Product Feature 4:
- IP20
- Product Feature 5:
- 50m Pack
- Availability:
-
3
More stock due in on 15/09/2025
Suggested products
Details
| Barcode | 5055788303794 |
|---|---|
| Quick Order Code | 353738 |
| Category | Strips |
| Range Name | Core |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Ultralong |
| Warranty (Years) | 5 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Max Run Length (m) | 50 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 50 |
| Strip Width (mm) | 12 |
Light Data
| Luminous efficacy (lm/W) | 125 |
|---|---|
| Lumens per meter (lm/m) | 700 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 84 |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 5.6 |
|---|---|
| Voltage (V) | 48 |
| Voltage Range (v) | 48 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788303794 |
|---|---|
| Package Weight (g) | 1640 |
| Package Length (mm) | 450 |
| Package Width (mm) | 430 |
| Package Depth (mm) | 15 |
| Outer Carton Barcode | 055788305736 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 470 |
| Outer Carton Width (mm) | 290 |
| Outer Carton Depth (mm) | 450 |
| Qty per euro pallet | 160 |
