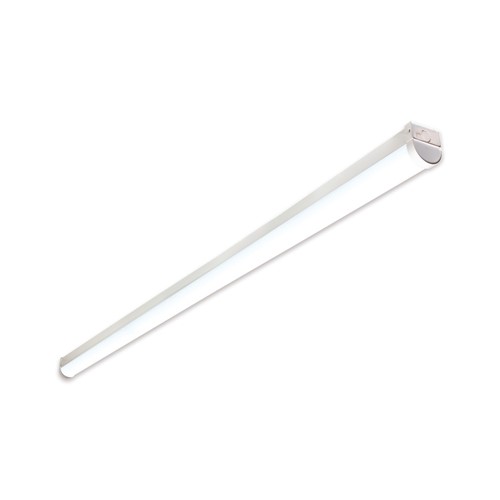

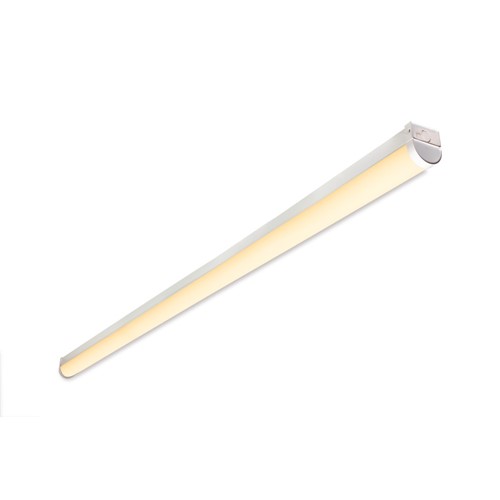

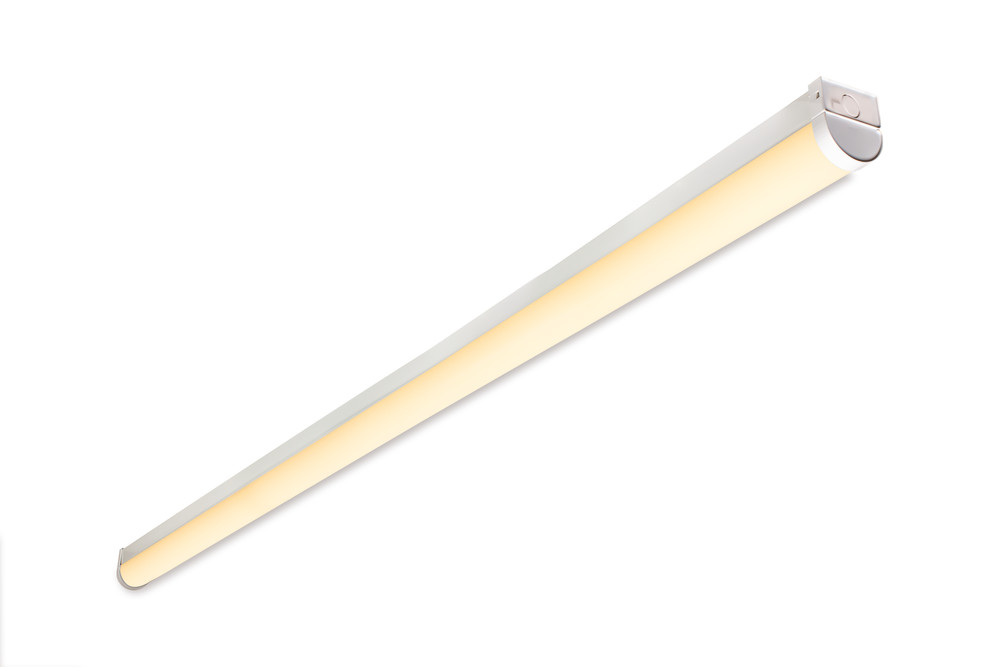

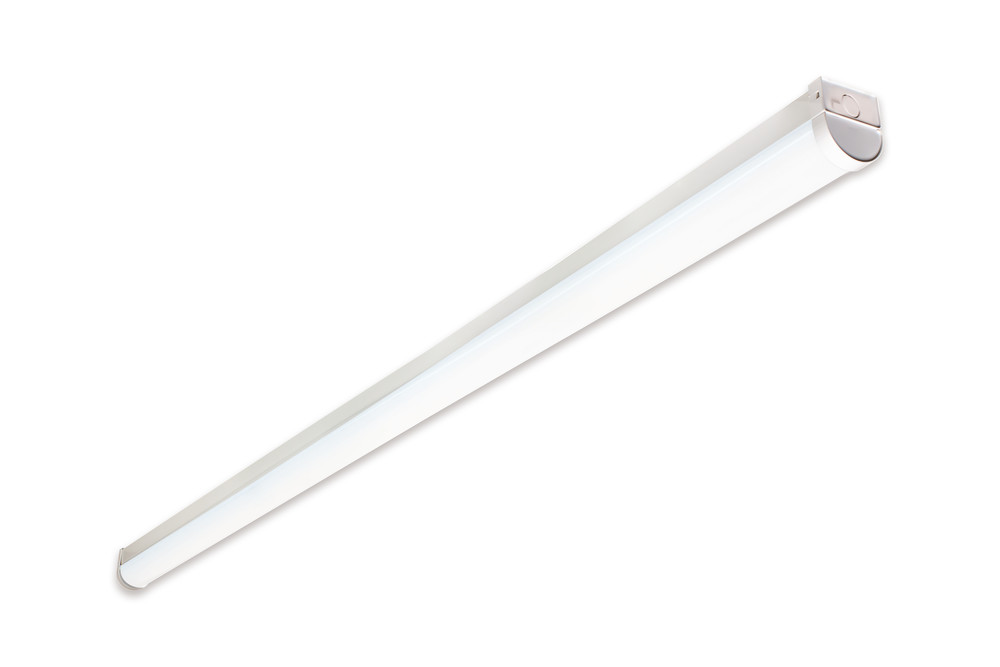

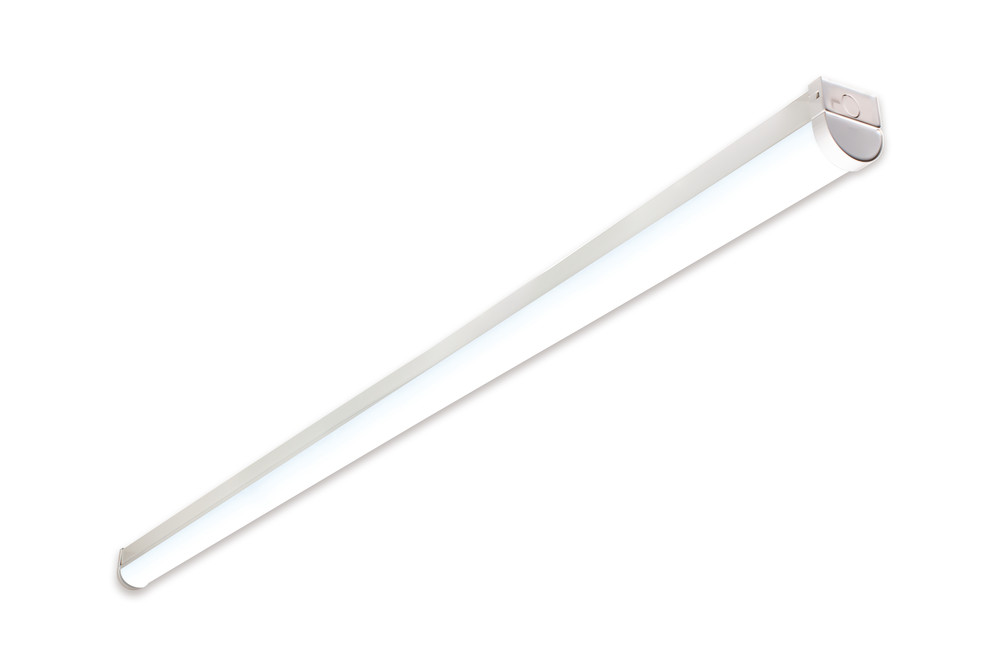

LIGHTSPAN+ PRO T8 BATTEN 6FT POWER & CCT ADJUSTABLE PWM FOR CORRIDOR SENSOR - 36/42/50/63W 3000/4000/6500K 4860-9130LM 145LM/W 120 BEAM LINKABLE
Part Number:
ILBTC185
- Product Feature 1:
- 36W: 4860/5400/4860 42W: 5460/6090/5460 50W: 6500/7250/6500 63W: 8190/9130/8190 lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 145lm/W
- Product Feature 4:

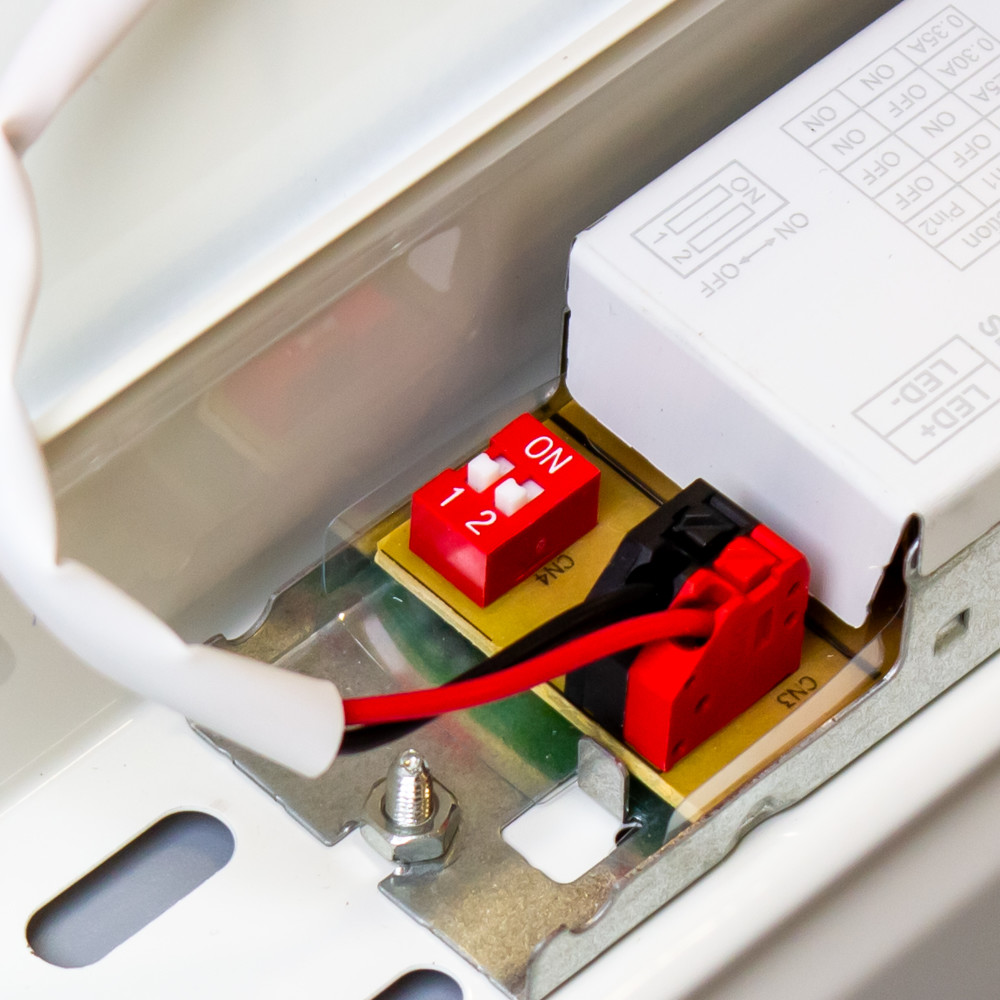

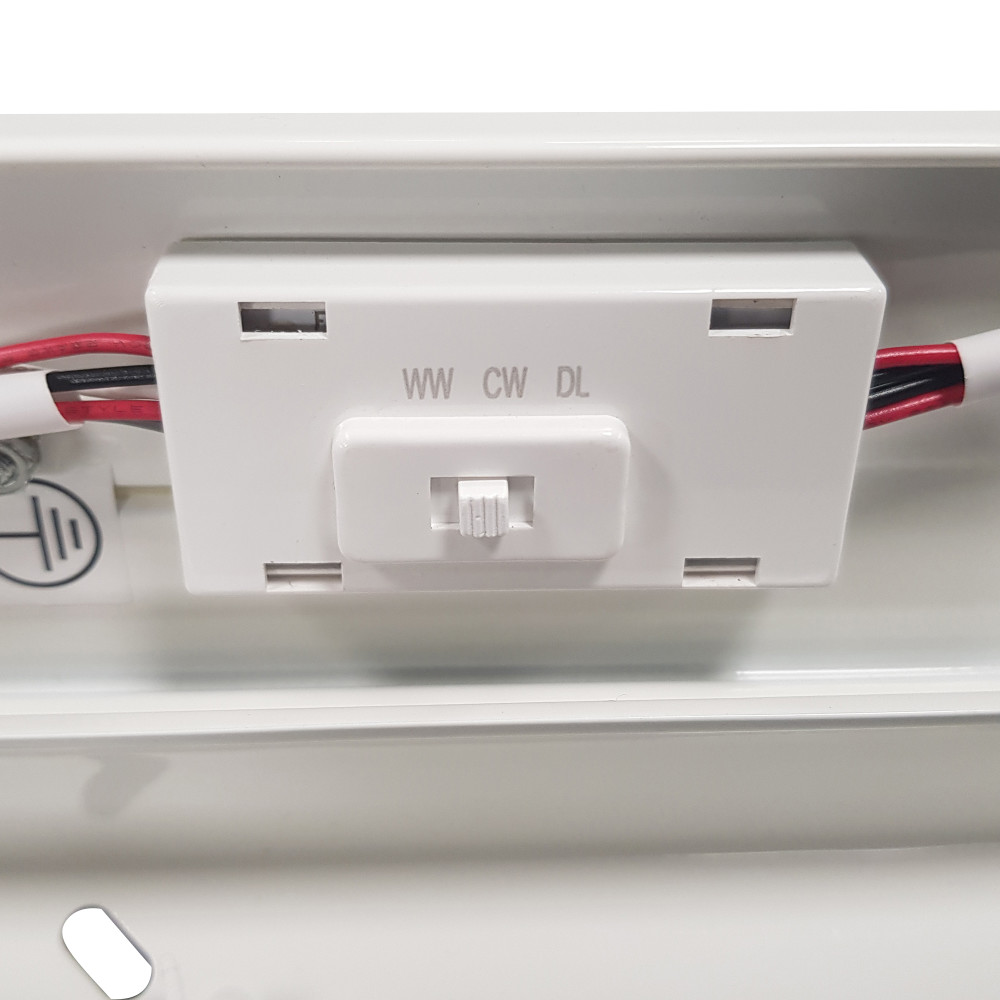

- Power & CCT Switchable
- Product Feature 5:
- IP20
- Product Feature 6:
- IK08
- Availability:
-
89
More stock due in on 25/10/2025
Suggested products
Details
| Barcode | 5055788292029 |
|---|---|
| Quick Order Code | 970360 |
| Category | Luminaires |
| Range Name | Lightspan+ PRO |
| Type | Single / Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | With modular accessory |
|---|---|
| Size (in ft) | 6ft |
| Linkable | Yes |
| Product Length (mm) | 1734 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 60 |
| Product Weight (g) | 2400 |
| Optic | Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 36W: 4860/5400/4860 42W: 5460/6090/5460 50W: 6500/7250/6500 63W: 8190/9130/8190 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 6300, 3000, 4000 |
| Colour Temperature | 3000/4000/6300 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 36/42/50/63 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | PWM for corridor sensor only |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788292029 |
|---|---|
| Package Weight (g) | 2600 |
| Package Length (mm) | 1742 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
Packaging
Documents
Product Specification Sheet
Safety Guides
Safety Guide
LDT Files
-
ILBTC185-36-3000K
-
ILBTC185-36-4000K
-
ILBTC185-36-6500K
-
ILBTC185-63-3000K
-
ILBTC185-63-4000K
-
ILBTC185-63-6500K
