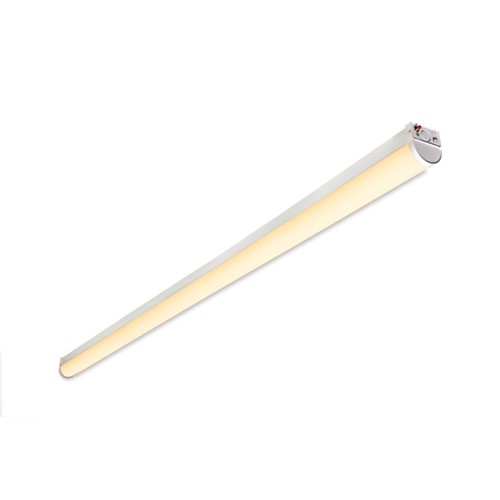

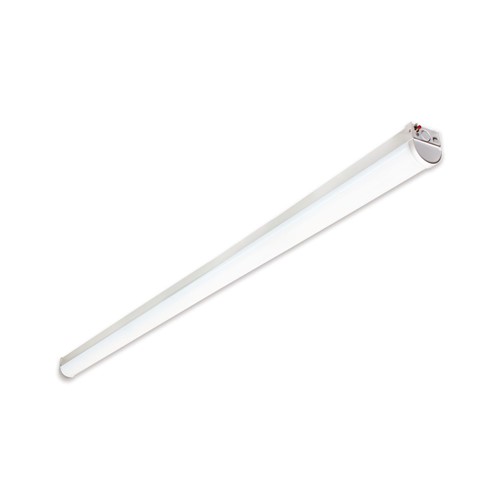

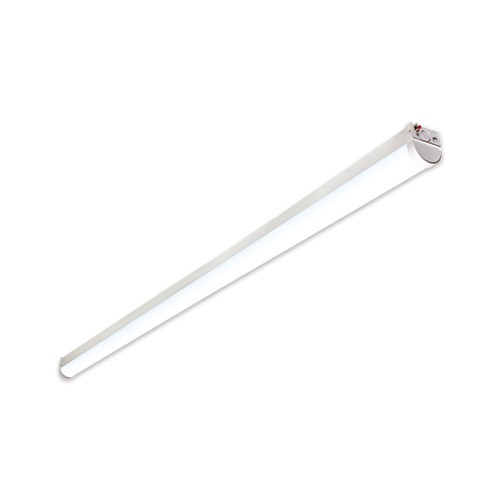

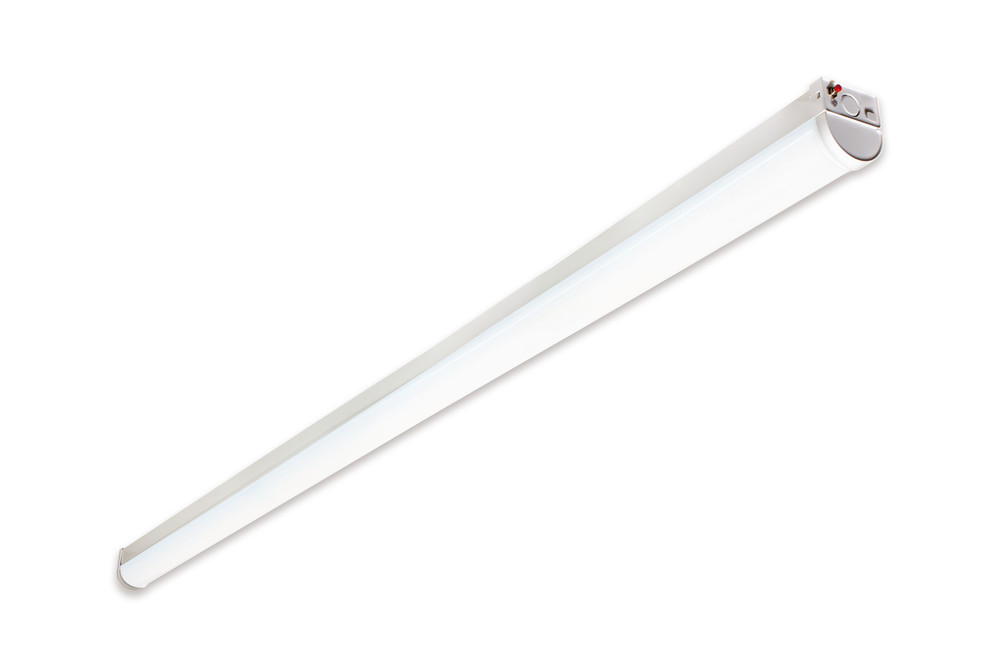

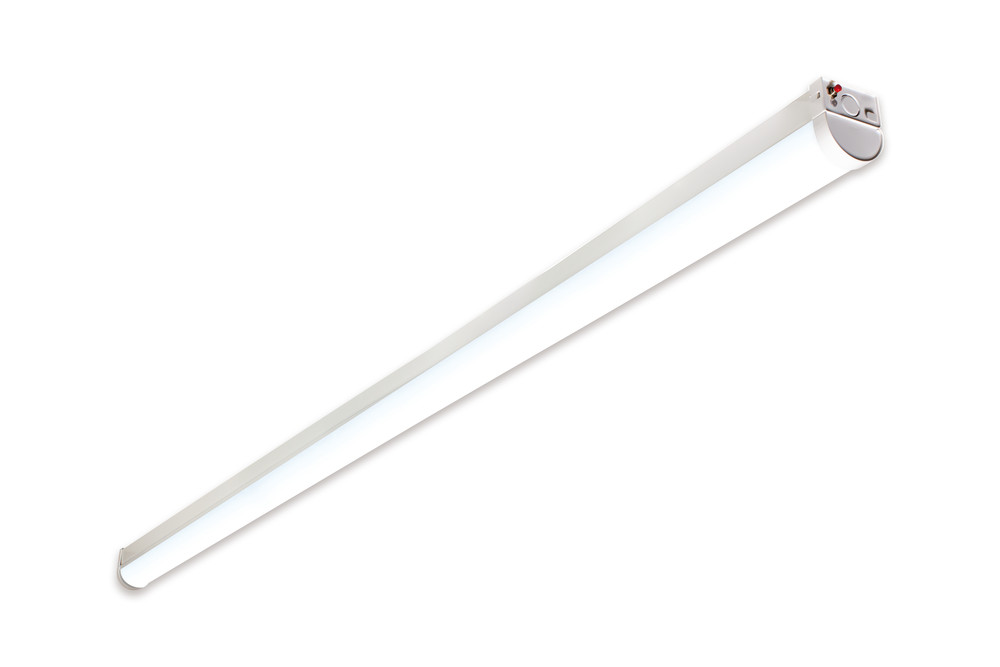

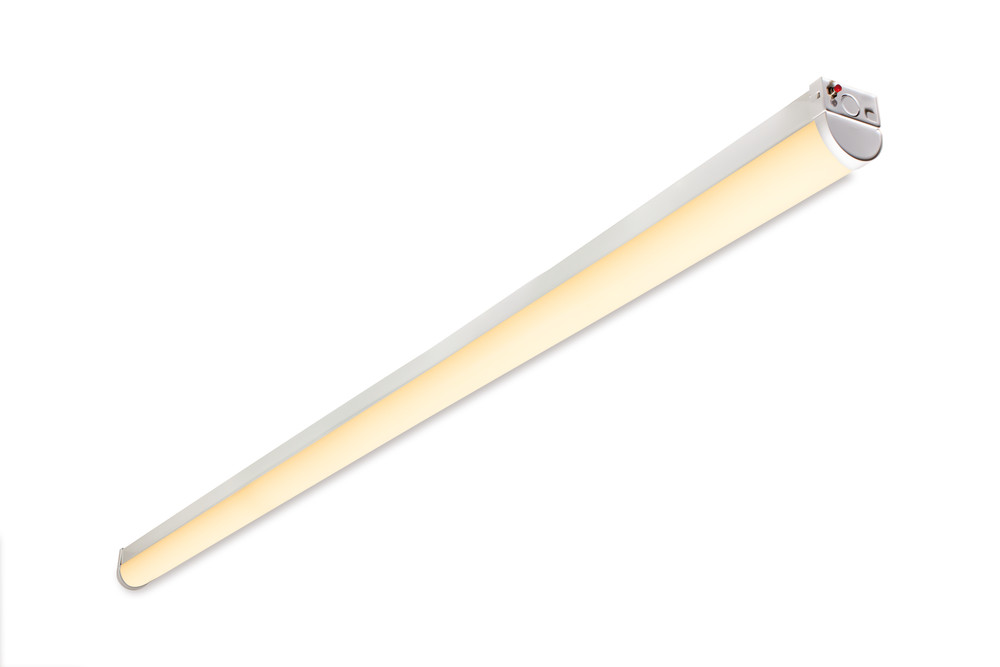

LIGHTSPAN+ T8 BATTEN 6FT EM3HR POWER & CCT ADJUSTABLE - 36/42/50/63W 3000/4000/6300K 4860-9130LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL
Part Number:
ILBTC141
Integral Lightspan+ battens provide an exceptionally efficient alternative to equivalent fluorescent fixtures. With switchable Power & CCT, they are ideal for indoor commercial, industrial and retail spaces that need different colour temperature and lumen output to suit the activity. With an efficacy of up to 145lm/W, Lightspan+ battens offer huge energy savings compared to equivalent fluorescent lighting.
- Product Feature 1:
- 36W: 4860/5400/4860 42W: 5460/6090/5460 50W: 6500/7250/6500 63W: 8190/9130/8190 lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 145lm/W
- Product Feature 4:
- Power & CCT Switchable
- Product Feature 5:
- 3hr emergency
- Product Feature 6:
- IP20
- Product Feature 7:
- IK08
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788261087 |
|---|---|
| Quick Order Code | 586242 |
| Category | Luminaires |
| Range Name | Lightspan+ |
| Type | Single / Twin |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Size (in ft) | 6ft |
|---|---|
| Linkable | Yes |
| Product Length (mm) | 1734 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 60 |
| Product Weight (g) | 2600 |
| Optic | Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTC141_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 36W: 4860/5400/4860 42W: 5460/6090/5460 50W: 6500/7250/6500 63W: 8190/9130/8190 |
| Correlated Colour Temperature (CCT) (K) | 6300, 3000, 4000 |
| Colour Temperature | 3000/4000/6300 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 36/42/50/63 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788261087 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 2800 |
| Package Length (mm) | 1742 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
| Outer Carton Barcode | 5055788261087 |
| Qty per Outer Carton | 6 |
| Outer Carton Length (mm) | 1755 |
| Outer Carton Width (mm) | 215 |
| Outer Carton Depth (mm) | 165 |
Safety Guide
ILBTC141-35W-3000K
