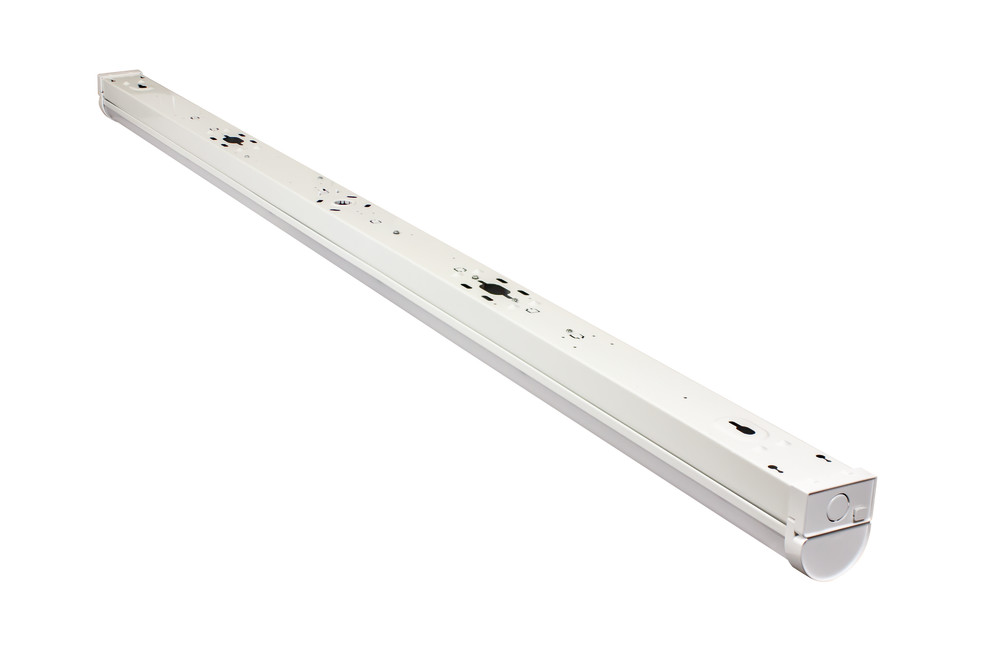

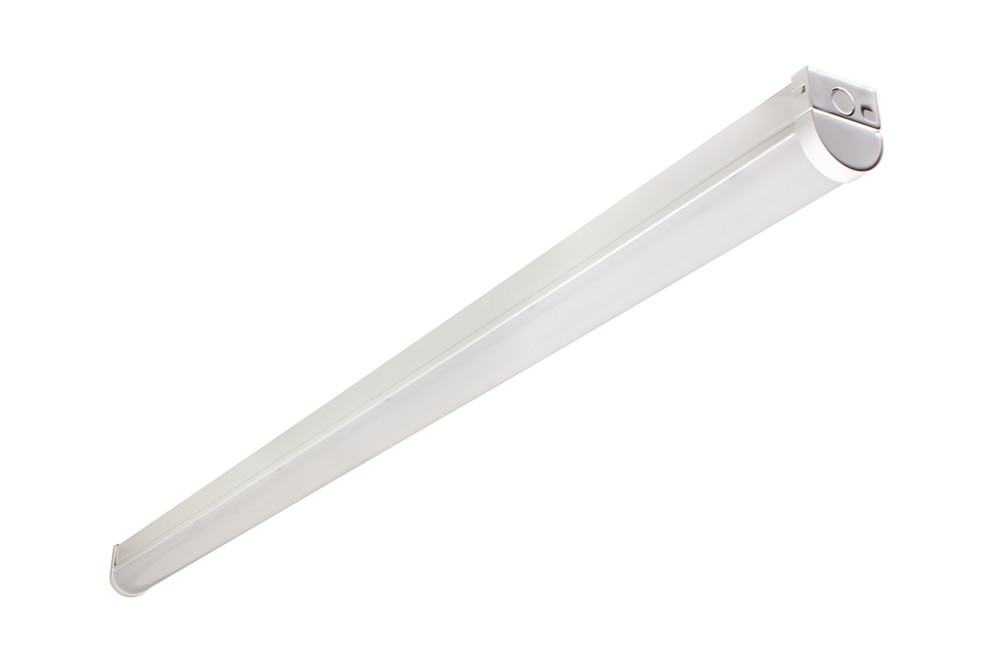

LIGHTSPAN T8 BATTEN 5FT TWIN WITH MOTION SENSOR 7800LM 60W 130LM/W 4000K 120 BEAM LINKABLE NON-DIMM INTEGRAL

Part Number:

ILBTC063

Integral Lightspan Battens provide an efficient alternative to T8 fluorescent tube fittings. With their high lumen output, Lightspan battens are ideal for indoor commercial spaces that need bright task lighting and at up to 130lm/W they offer big energy savings compared to equivalent fluorescent fittings.

Product Feature 1:
7800lm
Product Feature 2:
Class I
Product Feature 3:
130lm/W
Product Feature 4:
3 Year warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 421681
Barcode 5055788237037
Category Luminaires
Range Name Lightspan
Type Twin
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Finish Matt White
Warranty (Years) 3
Size (in ft) 5ft
Product Length (mm) 1470
Product Depth (mm) 70
Product Width (mm) 60
Product Weight (g) 1650
Optic Polycarbonate diffuser
Material Polycarbonate, Aluminium
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Wall / Ceiling / Pendant / Conduit mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTC063_EU_label
Luminous Flux in Lumens (lm) 7800
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 30000
Useful Lumens (lm) 400
Power Consumption (W) 60
Power Factor 0.9
Voltage Range (v) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 1900
Package Length (mm) 1475
Package Width (mm) 68
Package Depth (mm) 79

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
