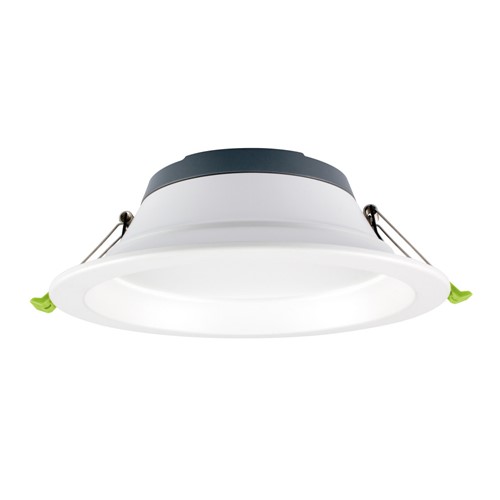

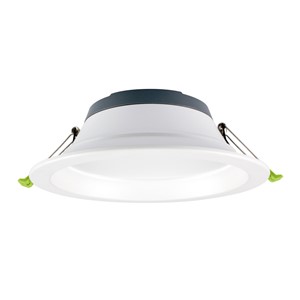

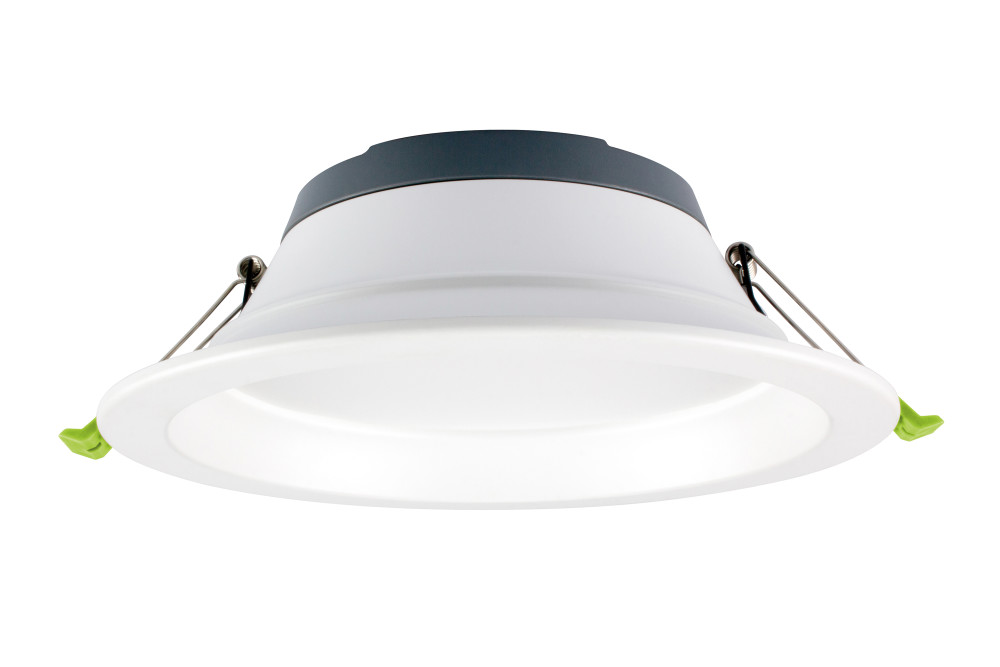

PERFORMANCE RECESS PL 230MM BEZEL 195-210MM CUTOUT 120LM/W 26W/35W 3120/4200LM 3000/4000/5700K CCT ALUMINIUM IP44 COMMERICAL DOWNLIGHT NON-DIM
Part Number:
ILDL230PR004
- Product Feature 1:
- High Efficacy - 120 lm/W
- Product Feature 2:
- Shallow recessed design
- Product Feature 3:
- Aluminimum body with PC diffuser
- Product Feature 4:
- CCT Switchable
- Product Feature 5:
- 4 sizes - cutout options from 90mm to 210mm
- Availability:
-
0
More stock due in on 20/11/2025
Suggested products
Details
| Barcode | 5055788323617 |
|---|---|
| Quick Order Code | 978731 |
| Category | Downlights |
| Range Name | Performance Recess |
| Product Type | Downlight |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | CCT Switchable |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 232 |
| Product Depth (mm) | 85 |
| Product Width (mm) | 232 |
| Product Weight (g) | 400 |
| Diameter (mm) | 232 |
| Optic | PS Diffuser |
| Material | Aluminium, Plastic |
| Overall diameter (mm) | 232 |
| Construction | Aluminium body, Polycarbonate diffuser |
| Cut Out Diameter (mm) | 195-210 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 3120, 4200 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 5700, 3000, 4000 |
| Colour Temperature | 3000/4000/5700 - Warm White/Cool White/Daylight |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 3120, 4200 |
Electrical Data
| Power Consumption (W) | 35, 26 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 900 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Insulation Guard | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788323617 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 0.515 |
| Package Length (mm) | 247 |
| Package Width (mm) | 247 |
| Package Depth (mm) | 95 |
| Outer Carton Barcode | 05055788323655 |
| Qty per Outer Carton | 12 |
| Outer Carton Length (mm) | 515 |
| Outer Carton Width (mm) | 515 |
| Outer Carton Depth (mm) | 305 |
Safety Guide
ILDL230PR004-26W-3000K
