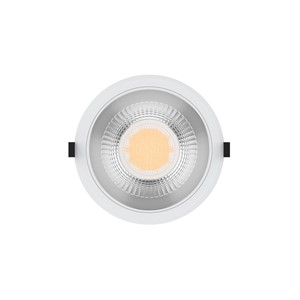

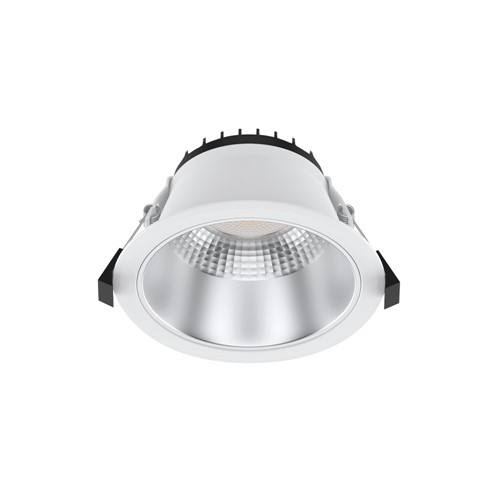

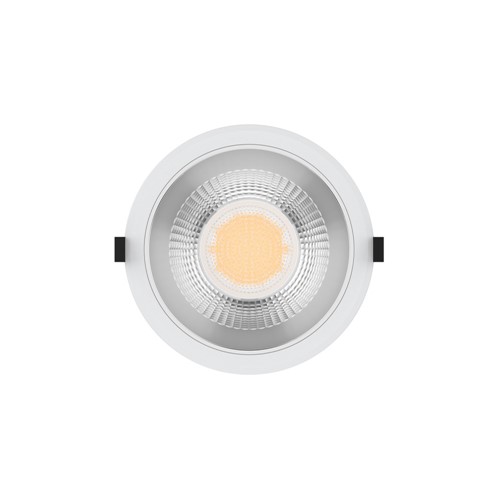

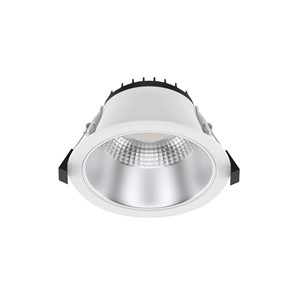

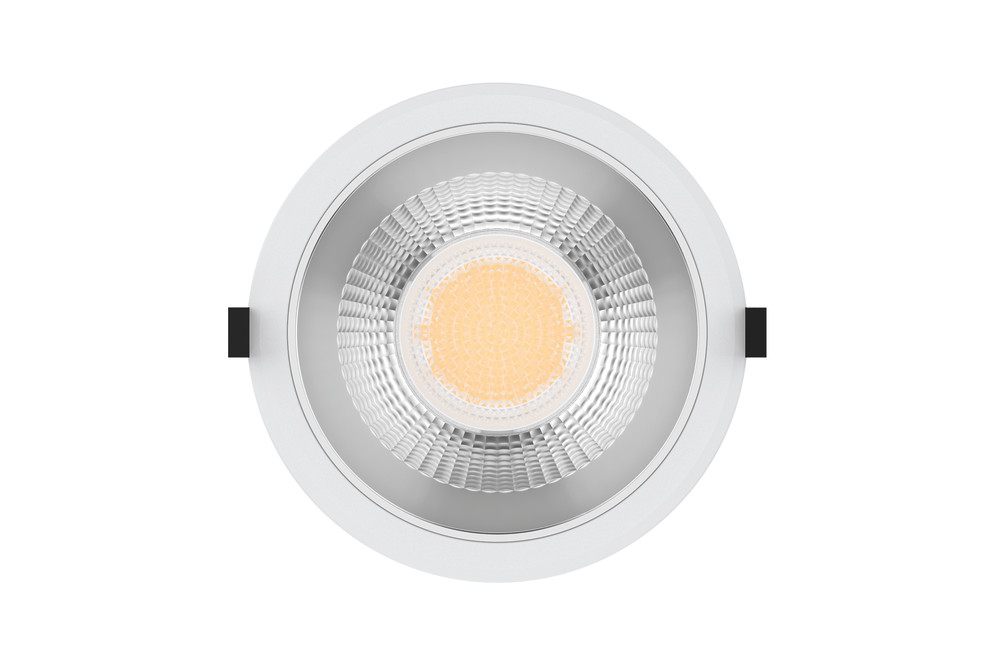

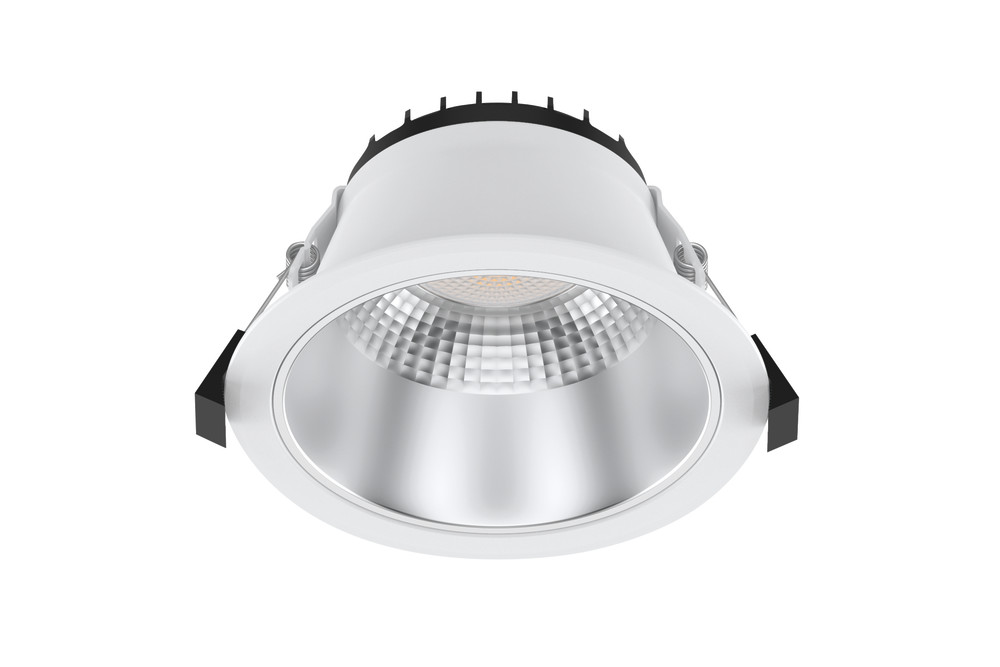

RECESS PLUS II 120-130MM CUTOUT 13W 1600LM 123LM/W CCT ADJUSTABLE 3000/4000K 60 BEAM IP54 MAINS DIM 220-240VAC
Part Number:
ILDL145RP022
- Product Feature 1:
- Premium, recessed downlight
- Product Feature 2:
- High Efficacy - Up to 133LM/W
- Product Feature 3:
- Low Glare - UGR<19
- Product Feature 4:
- Aluminium body with a matt white finish
- Product Feature 5:
- Mains dimmable and DALI available in each wattage
- Availability:
-
96
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788308638 |
|---|---|
| Quick Order Code | 885338 |
| Category | Downlights |
| Range Name | Recess Plus II |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Features | CCT Adjustable, Mains Dimmable |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 79 |
| Product Weight (g) | 450 |
| Diameter (mm) | 145 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Overall diameter (mm) | 145 |
| Construction | Aluminium body and reflector with polycarbonate diffuser |
| Cut Out Diameter (mm) | 120-130 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 1600 |
|---|---|
| Luminous efficacy (lm/W) | 123 |
| Correlated Colour Temperature (CCT) (K) | 3000, 4000 |
| Colour Temperature | 3000/4000 - Warm White/Cool White |
| Colour Temperature Name | Warm White, Cool White |
| Beam Angle | 60 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
| Unified Glare Rating (UGR) | < 19 |
| Useful Lumens (lm) | 1600 |
Electrical Data
| Power Consumption (W) | 13 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 300 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| Insulation Guard | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788308638 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 580 |
| Package Length (mm) | 160 |
| Package Width (mm) | 160 |
| Package Depth (mm) | 100 |
| Outer Carton Barcode | 05055788308843 |
| Qty per Outer Carton | 24 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 340 |
| Outer Carton Depth (mm) | 420 |
Safety Guide
ILDL145RP022-3000K
