ACCENTPLUS SCOOP ADJUSTABLE DOWNLIGHT 30W 3500LM 115LM/W 4000K CRI90 185MM CUTOUT 36 BEAM WHITE 220-240V - NON-DIMM

Part Number:

ILDL185SC012

Integral Scoop downlights are a commercial solution for washing walls or displays with high quality CRI 90 real colour lighting. They feature fully rotatable bezels and a 38° downward tilt which brings the fitting well below the ceiling line allowing precise beam control, lighting areas that would not be possible with conventional downlights.

The range includes versions with no driver, which can be paired to our standard DALI, push dim, 0-10V combination dimmable drivers (see suggested products for driver options).

Product Feature 1:
Adjustable Downlight With Non-Dim Driver
Product Feature 2:
38° tilt & 355° rotation adjustable
Product Feature 3:
High efficiency, energy saving
Product Feature 4:
CRI90 real colour
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Quick Order Code 283685
Barcode 5055788276562
Category Downlights
Range Name AccentPlus Scoop
Product Body Finish Matt white
Market Segment Commercial indoor
Features Adjustable
Fixed/Tiltable Tiltable
Warranty (Years) 5
Emergency Option No

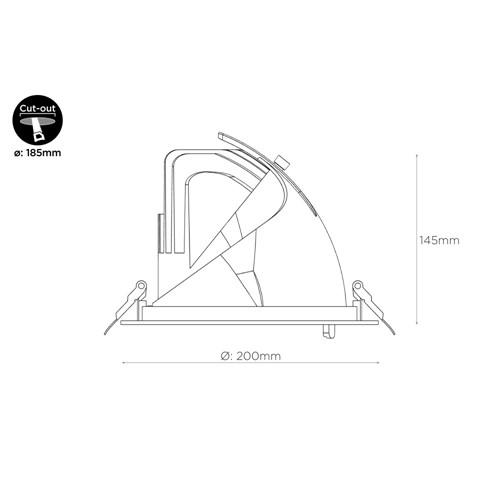

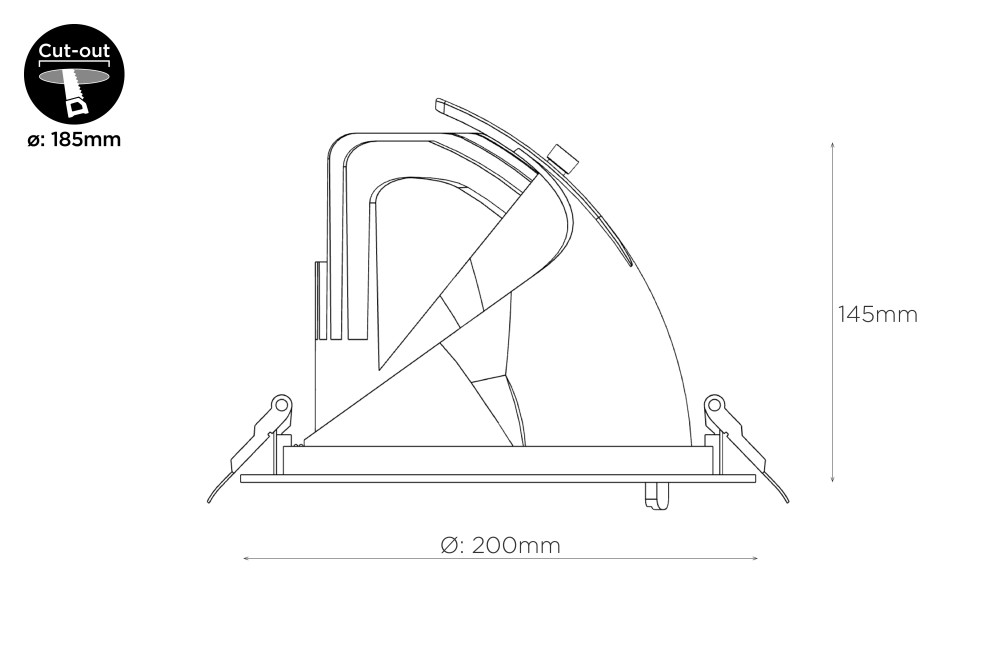

Product Depth (mm) 145
Product Weight (g) 1290
Overall diameter (mm) 200
Construction Aluminium
Cut Out Diameter (mm) 185
Bulb or Luminaire Shape Round
Luminaire Fixing Recess mounted
Placement / Application Indoor, General Lighting
Spot Type COB
Luminous Flux in Lumens (lm) 3500
Luminous efficacy (lm/W) 115
Colour Temperature 4000K - Cool White
Beam Angle 36
Colour Rendering Index (CRI) 90
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
Integrated Light Source Yes
Lifetime (hours) 50000
Switching Cycles 100000
Power Consumption (W) 30
Power Factor 0.95
Voltage Range (v) 220-240
Amperage (mA) 800
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 1400
Package Length (mm) 220
Package Width (mm) 220
Package Depth (mm) 170
Qty per euro pallet 160
