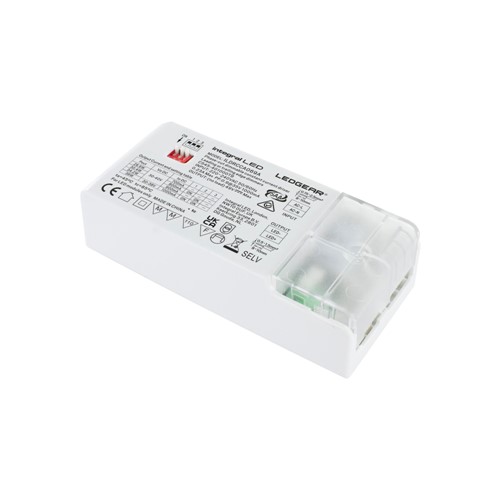

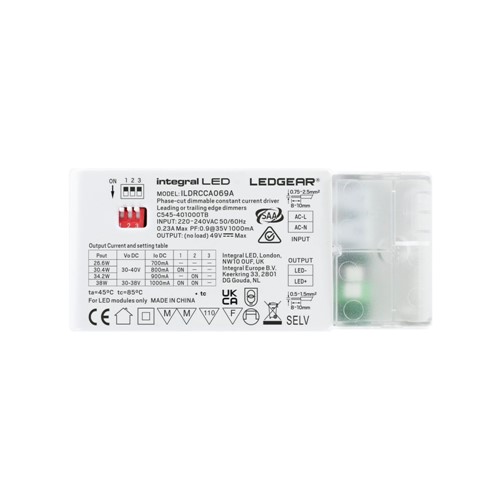

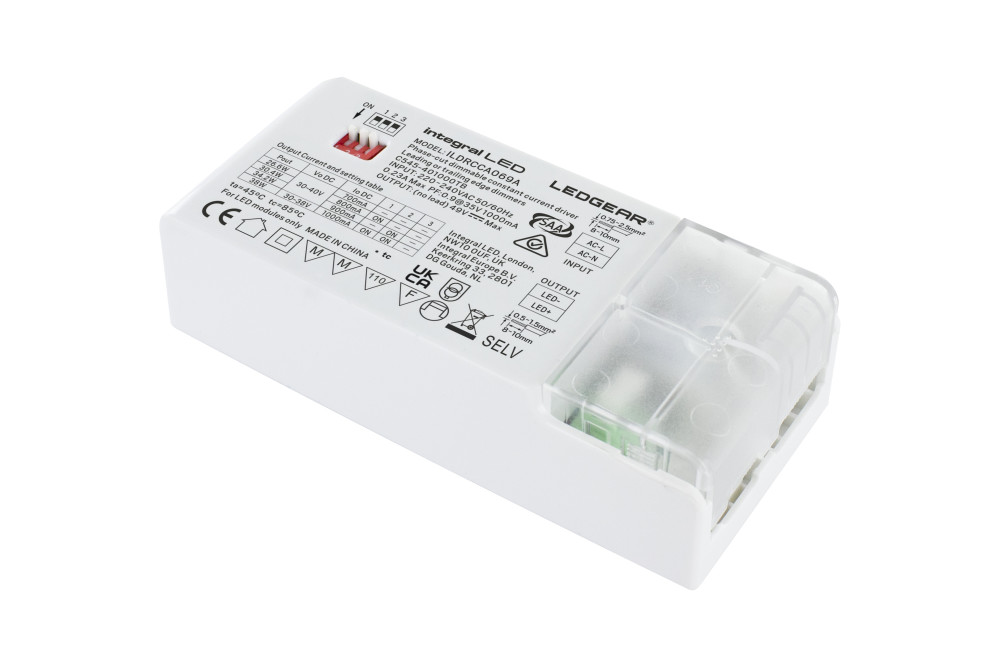

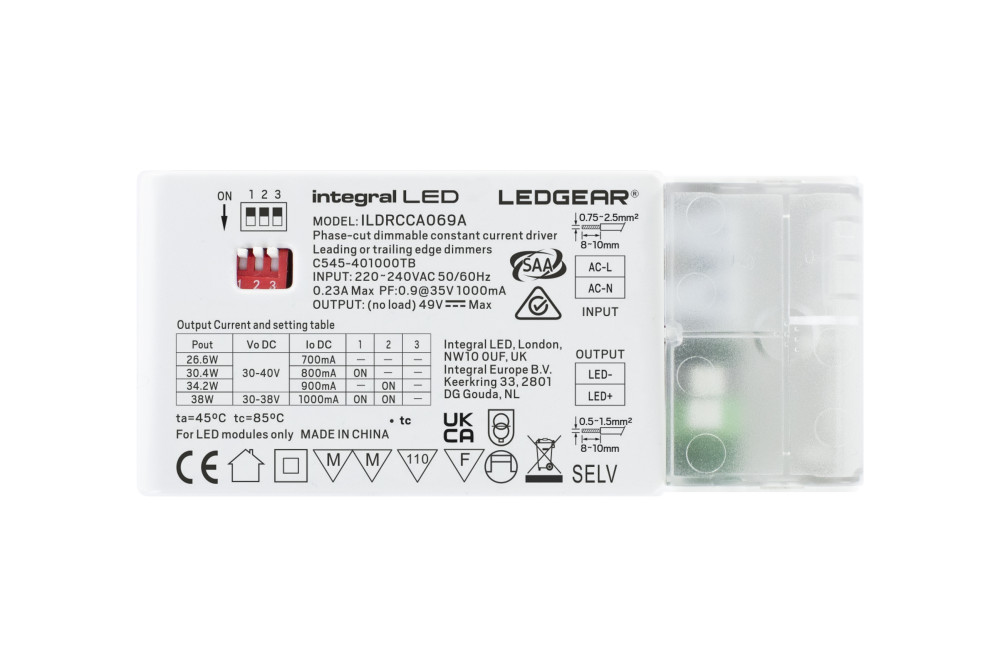

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 28-38W 700-1000MA IP20 TRIAC DIMMABLE 30-40V OUTPUT INTEGRAL
Part Number:
ILDRCCA069A
Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output Power range 26.6-38W
- Product Feature 3:
- Adjustable output current range 700-1000mA
- Product Feature 4:
- Output voltage range 30-40V
- Availability:
-
100+
More stock due in on 02/03/2026
Details
| Barcode | 5055788252979 |
|---|---|
| Quick Order Code | 517202 |
| Category | Drivers |
| Range Name | TRIAC |
| Product Type | Constant Current |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 115 |
|---|---|
| Product Depth (mm) | 30 |
| Product Width (mm) | 52 |
| Product Weight (g) | 240 |
| Material | Polycarbonate |
| Placement / Application | Indoor, LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power Factor | 0.95 |
|---|---|
| Voltage (V) | 30-40 |
| Voltage Range (v) | 220-240 |
| Input Current (A) | 0.23 |
| Input Voltage (V) | 220-240VAC |
| Output Current (mA) | Adjustable |
| Output Voltage (V) | 30-40 |
| Dimming | Mains dim |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788252979 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 240 |
| Package Length (mm) | 160 |
| Package Width (mm) | 90 |
| Package Depth (mm) | 30 |
| Outer Carton Barcode | 5055788253006 |
| Qty per Outer Carton | 50 |
| Outer Carton Length (mm) | 300 |
| Outer Carton Width (mm) | 265 |
| Outer Carton Depth (mm) | 260 |
