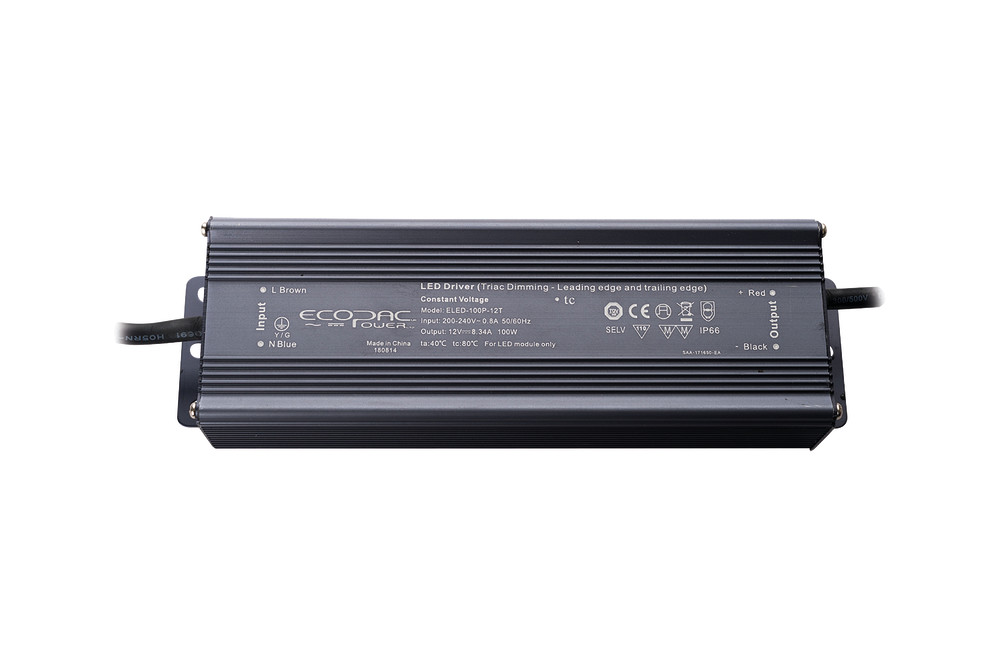

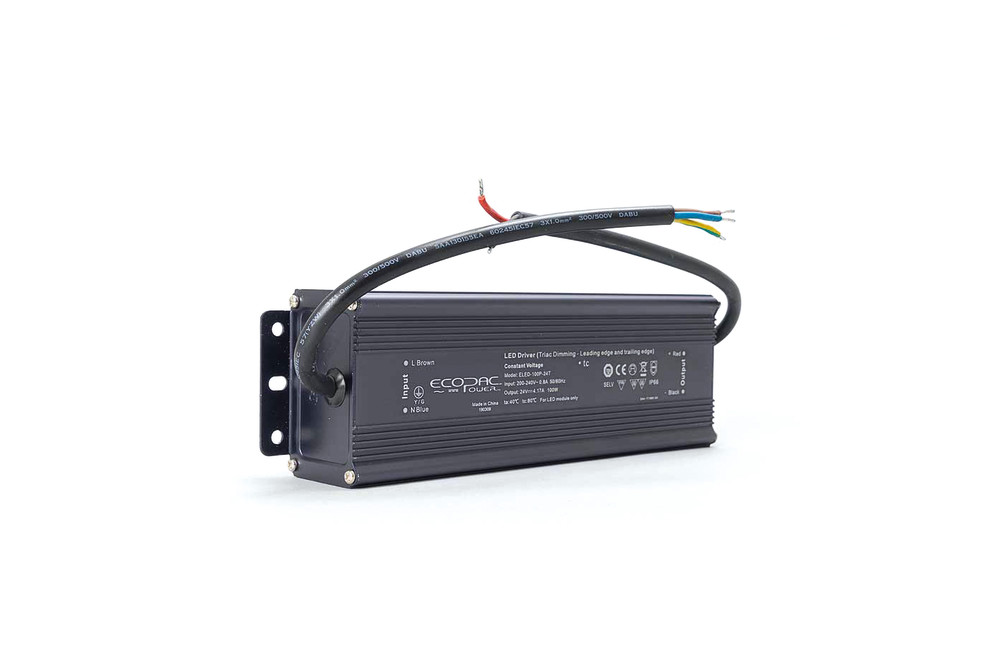

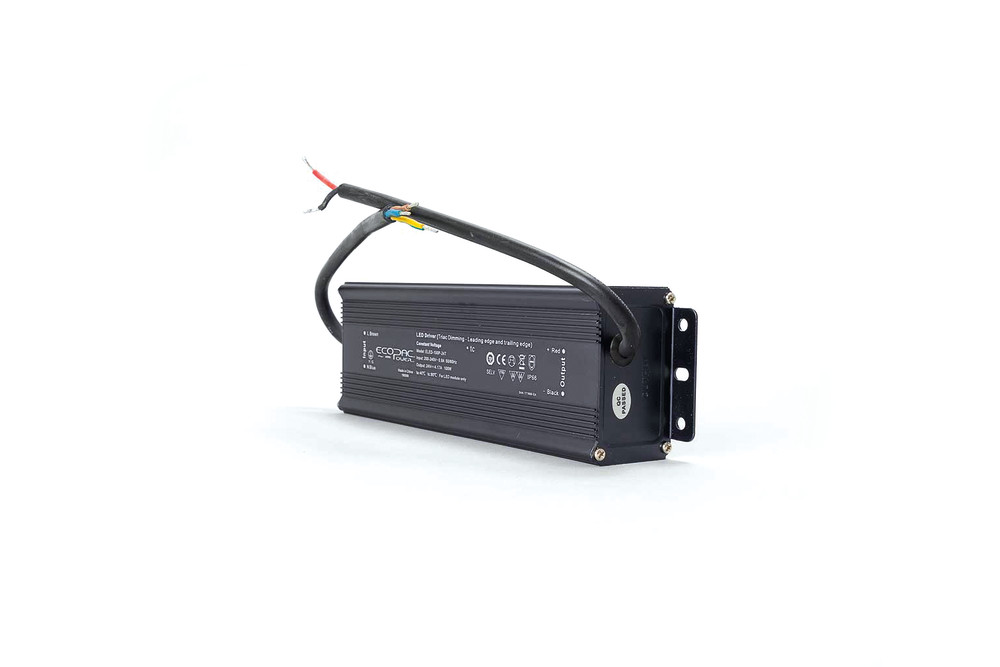

CONSTANT VOLTAGE DRIVER 100W 24VDC IP66 TRIAC DIMMABLE 200-240V INPUT 10W MIN LOAD ECOPAC POWER
Part Number:
ELED-100P-24T
This 100W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage and is TRIAC dimmable suitable for both leading edge dimmers and trailing edge dimmers Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Output Power: 100W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
34
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788265924 |
|---|---|
| Quick Order Code | 597244 |
| Category | Drivers |
| Range Name | TRIAC |
| Product Type | Constant Voltage |
| Market Segment | Commercial indoor, Residential indoor, Commercial outdoor, Residential outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 230 |
|---|---|
| Product Depth (mm) | 43 |
| Product Width (mm) | 70 |
| Product Weight (g) | 950 |
| Placement / Application | Indoor LED Lighting, Outdoor LED Light |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 100 |
|---|---|
| Power Consumption (W) | 100 |
| Power Factor | 0.97 |
| Voltage (V) | 24 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240VAC |
| Output Current (mA) | 4160 |
| Dimming | Mains dim |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788265924 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1100 |
| Package Length (mm) | 245 |
| Package Width (mm) | 75 |
| Package Depth (mm) | 65 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 340 |
| Outer Carton Width (mm) | 275 |
| Outer Carton Depth (mm) | 170 |
