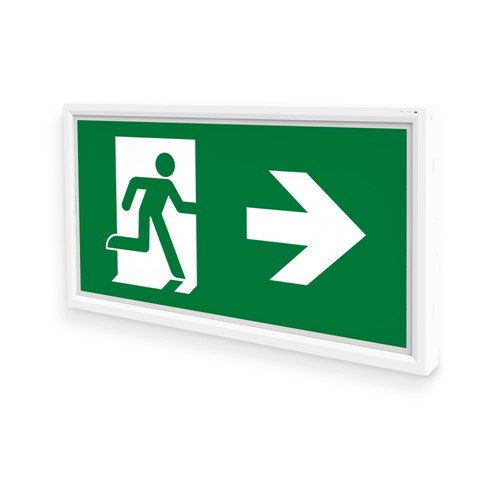

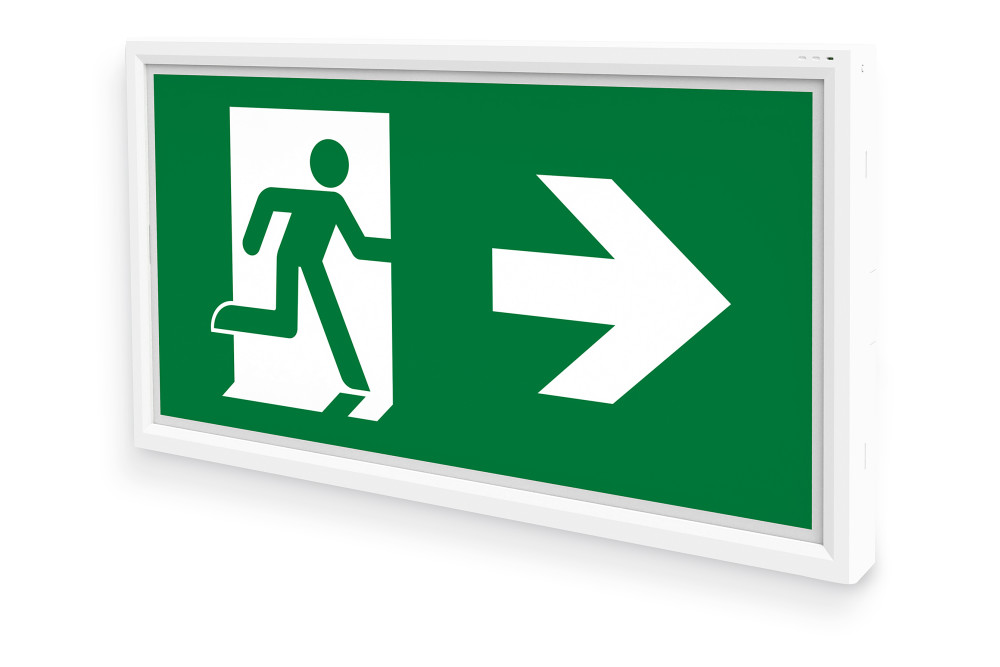

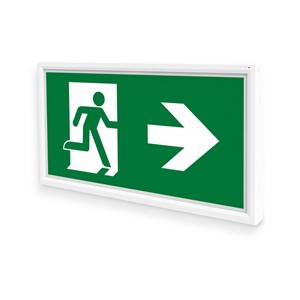

EMERGENCY EXIT BOX 1W 60LM 3HR MAINTAINED OR NON-MAINTAINED 30M VIEWING INCLUDING UP DOWN LEFT RIGHT LEGENDS DALI LED INTEGRAL
Part Number:
ILEMES062

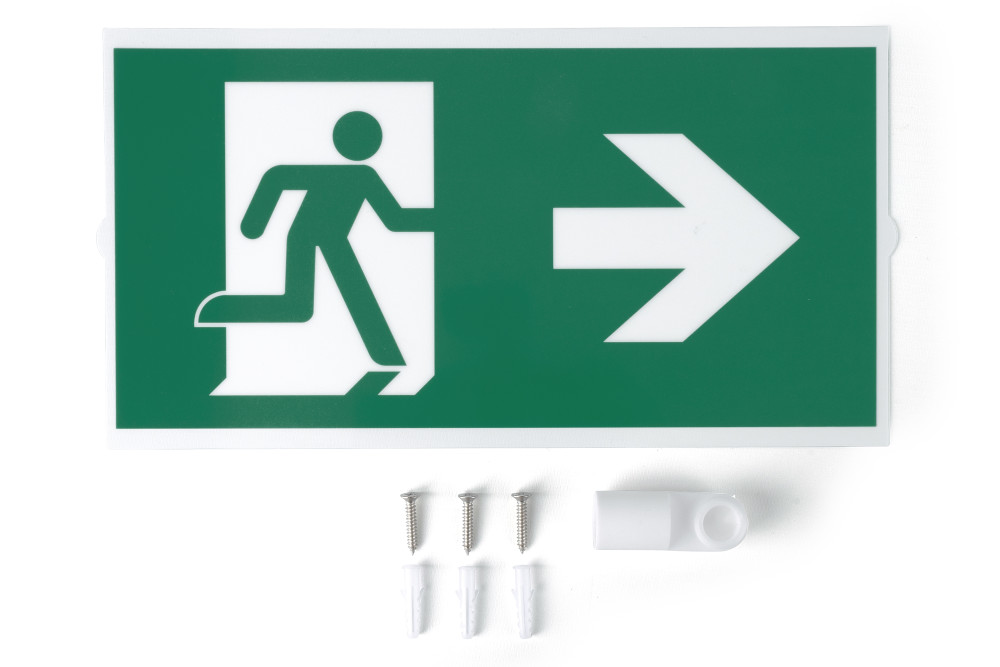

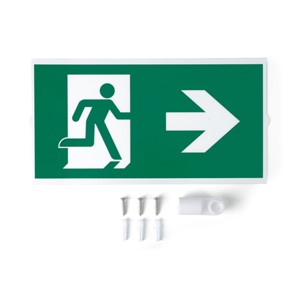

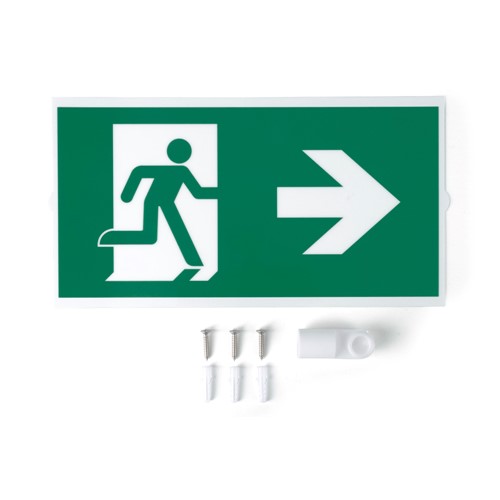

The DALI-enabled Emergency Exit Box is designed for emergency situations where clear directional guidance is needed. The bulkhead is a versatile 1W lighting solution that provides 3 hours of operation during a power outage in either maintained or non-maintained modes. With included legends (up, down, left, and right) and featuring DALI compatibility for seamless integration into modern lighting systems, this bulkhead features a 30-metre viewing range making it ideal for larger commercial spaces.Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- 5 Year Warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788300625 |
|---|---|
| Application | Corridor & Open Area |
| Quick Order Code | 182754 |
| Category | Emergency |
| Range Name | Emergency Exit Box 30M |
| Product Type | Exit Signs |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Exit Signs |
| Product Length (mm) | 331.4 |
| Product Depth (mm) | 30.6 |
| Product Width (mm) | 182 |
| Product Weight (g) | 502 |
| Material | Polycarbonate |
| Construction | Polycarbonate |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall Mounted, Perpendicular Mounted, Ceiling Mounted, Wall Mounted |
| Placement / Application | Indoor, Emergency Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 60 |
|---|---|
| Luminous efficacy (lm/W) | 60 |
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature | 6000 - Cool Daylight |
| Colour Temperature Name | Cool Daylight |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 10000 |
| Useful Lumens (lm) | 60 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 1 |
|---|---|
| Power Consumption (W) | 1 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 5 |
| Emergency Lumens (lm) | 60 |
| Emergency Type | Maintained or Non-Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788300625 |
|---|---|
| Package Weight (g) | 728 |
| Package Length (mm) | 380 |
| Package Width (mm) | 190 |
| Package Depth (mm) | 36 |
