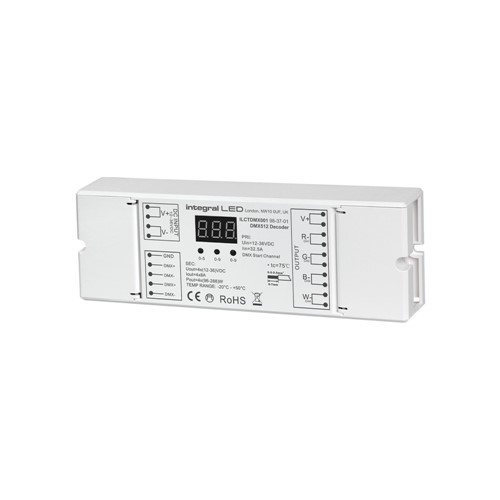

DMX 512 DECODER 12-36VDC CONSTANT VOLTAGE 384W(12V) AND 768W(24V) AND 1152W(36V) INTEGRAL

Part Number:

ILCTDMX001

The Integral DMX512 Decoder is designed as a standard DMX512 compliant control interface, receiving DMX512 signals and distributing to LED strip products with constant voltage (DC 12V-36V). You will be able to set up the DMX address as your prefer and the address is shown on the 3-digit display.

The Integral DMX512 Decoder is compatible with a standard DMX512 master controllers.

Product Feature 1:
DMX512 decoder
Product Feature 2:
Input: DC12V-36V
Product Feature 3:
Output Current: 32A (8Ax4CH)
Product Feature 4:
Output Power: 384W (12V)/768W (24V)/1152W (36V)
Product Feature 5:
Compatible with a standard DMX512 master controller
Product Feature 6:
Compatible with the entire Integral LED Strip range
Availability:
32

More stock due in on 15/01/2025

Quick Order Code 983701
Barcode 5055788250821
Category Strips
Range Name Single Colour, RGB, Digital Pixel, RGBW, Colour Temperature Changing
Product Type Controllers for strips
Market Segment Commercial
Warranty (Years) 5
Product Weight (g) 215
Material PCB, Polycarbonate
Placement / Application Indoor
Voltage Range (v) 13485
Dimming Dimmable
Electric Current DC
EN EN-55015, EN-61547
LVD Certified Yes
EN EN-55015, EN-61547
LVD Certified Yes
CE RoHS Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 220
Package Length (mm) 175
Package Width (mm) 62
Package Depth (mm) 35
