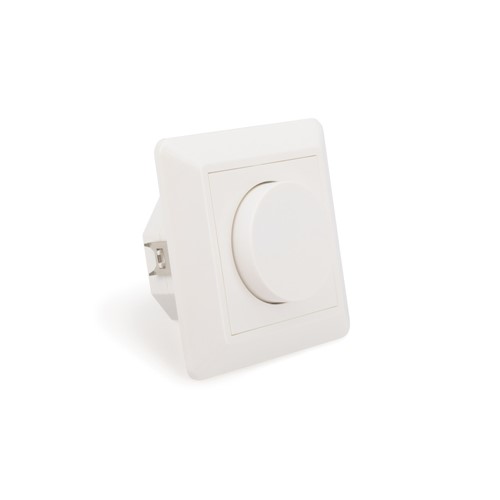

DALI MCU Dimming Control DT6 Rotary 100-240V Input with 100mA Bus
Part Number:
ILDIMD001
- Product Feature 1:
- DALI MCU digital rotary dimmer
- Product Feature 2:
- Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs
- Product Feature 3:
- Can select between 16 DALI groups with single-group control
- Product Feature 4:
- Supports DALI DT6 devices
- Product Feature 5:
- Features customisable minimum dim level
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788323563 |
|---|---|
| Quick Order Code | 739313 |
| Category | DALI dimmers |
| Range Name | Single Colour |
| Product Type | Dali MCU dimmer |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 200 |
|---|---|
| Material | PCB, Polycarbonate |
| Handheld or Wall Mount | Wall Mount |
| Zones | 1 |
Light Data
Electrical Data
| Voltage Range (v) | 100-240 |
|---|---|
| Driver Included | No |
| Electric Current | AC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Barcode | 5055788323563 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 240 |
| Package Length (mm) | 100 |
| Package Width (mm) | 100 |
| Package Depth (mm) | 60 |
| Outer Carton Barcode | 05055788323570 |
| Qty per Outer Carton | 36 |
| Outer Carton Length (mm) | 380 |
| Outer Carton Width (mm) | 280 |
| Outer Carton Depth (mm) | 270 |
Safety Guide
