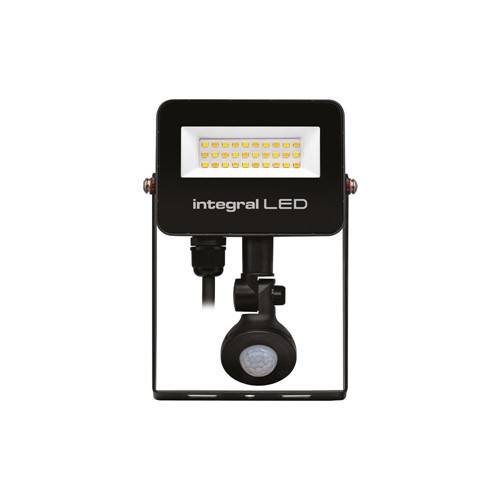

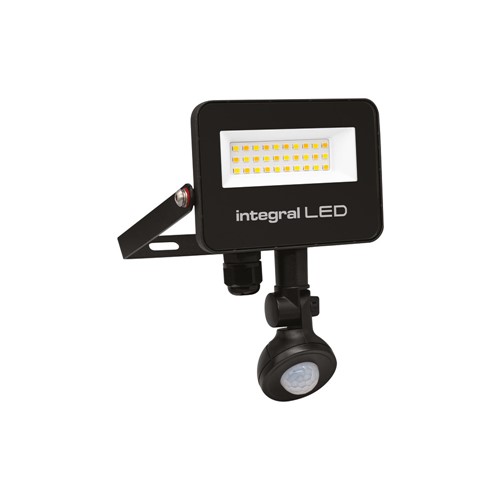

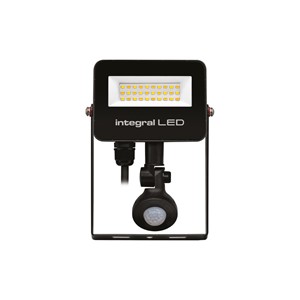

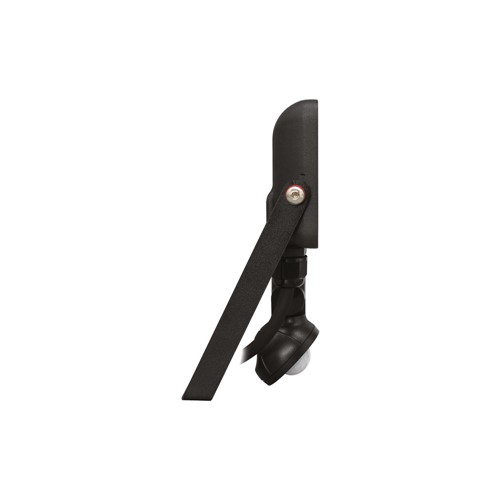

SUPER SLIM 2 FLOODLIGHT IP67 1000LM 10W TUYA 3000/4000/6500K PIR 120° DIMMABLE 100LM/W BLACK INTEGRAL
Part Number:
ILFLC250
This small and compact fitting is rated at IP67 and perfect for indoor and outdoor applications. It is highly efficient and durable making it a popular choice for long life applications. It utilises branded drivers and chips and it is fully guaranteed for 5 years.
- Product Feature 1:
- Tough aluminium body tempered glass and marine grade fixings
- Product Feature 2:
- 100Lm/W
- Product Feature 3:
- 1m pre-wired
- Product Feature 4:
- IP67
- Product Feature 5:
- IK08
- Availability:
-
70
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788267690 |
|---|---|
| Quick Order Code | 338198 |
| Category | Luminaires |
| Range Name | Super Slim 2 |
| Product Body Finish | Black |
| Market Segment | Residential and Commercial |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 172 |
|---|---|
| Product Depth (mm) | 39 |
| Product Width (mm) | 129 |
| Product Weight (g) | 385 |
| Material | Aluminium, Tempered Glass |
| Construction | Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall Mounted |
| Placement / Application | Indoor and outdoor, General lighting |
Light Data
| Beam Type | Symmetrical |
|---|---|
| Energy Efficiency Label (Image) | ILFLC250_EU_label |
| Luminous Flux in Lumens (lm) | 1000 |
| Correlated Colour Temperature (CCT) (K) | 3000, 4000, 6500 |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | Yes |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 10 |
|---|---|
| Power Consumption (W) | 10 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Tuya |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Back/Recessed side) | IP67 |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788267690 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 445 |
| Package Length (mm) | 180 |
| Package Width (mm) | 138 |
| Package Depth (mm) | 60 |
| Outer Carton Barcode | 5055788267690 |
| Qty per Outer Carton | 30 |
| Outer Carton Length (mm) | 420 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 390 |
Safety Guide
ILFLC250-3000K
